Recoil Starter

Recoil Starter

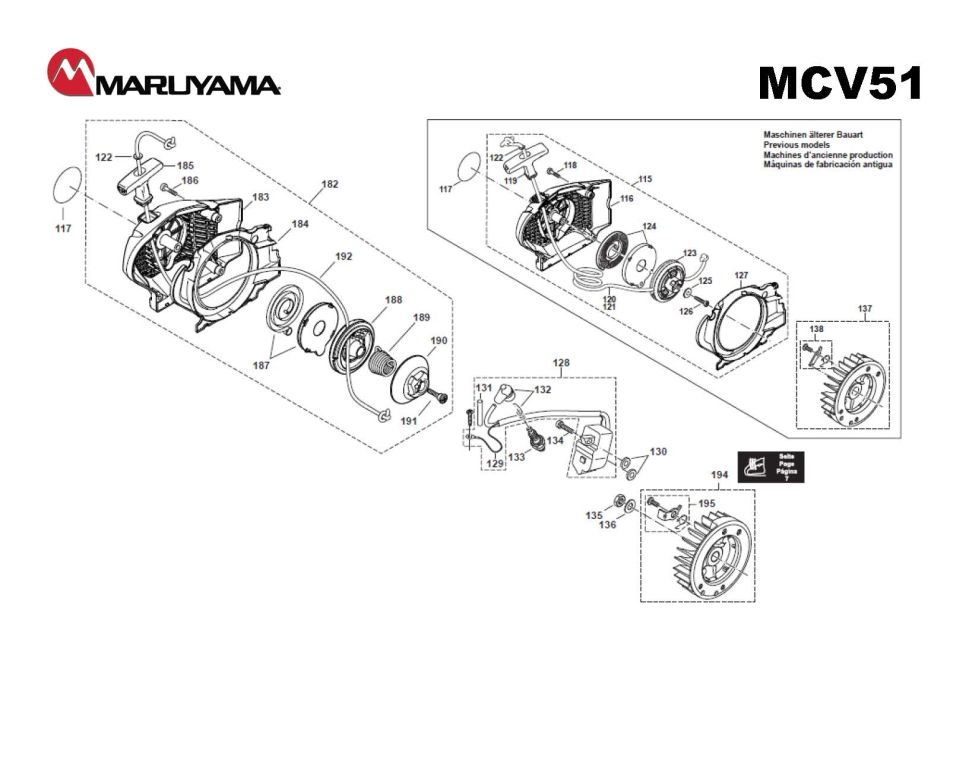

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV51. You have selected the Recoil Starter diagram for the Maruyama MCV51 Chainsaws. Below you will find an interactive part diagram for the MCV51 Recoil Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV51 parts not shown in this diagram you may select from one of the other MCV51 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
117 841974 841974 - LABEL
$28.99
122 841942 841942 - DISC
$2.99
128 841854 841854 - IGNITION COIL, CPL.,
$146.99
129 841855 841855 - IGNITION CABLE
$18.99
130 841922 841922 - ISOLATING WASHER
$2.99
131 841971 841971 - ISOLATING HOSE
$19.99
132 841958 841958 - SPARK PLUG CAP CPL.
$8.99
133 841969 841969 - SPARK PLUG
$16.99
134 841932 841932 - SCREW
$2.99
135 841937 841937 - HEXAGONAL NUT
$2.99
136 841939 841939 - SPRING WASHER
$2.99
182 841874 841874 - STARTER ASSY. BLACK
$168.99
183 841822 841822 - STARTER ASSY. BLACK
$46.99
184 841838 841838 - AIR GUIDE PLATE
$17.99
185 841880 841880 - STARTER KNOB
$12.99
186 841930 841930 - SCREW
$2.99
187 841876 841876 - REWIND SPRING IN HOU
$28.99
188 841875 841875 - CABLE DRUM
$35.99
189 841877 841877 - SPRING EASY-START
$28.99
190 841878 841878 - DRIVER FOR EASY-STAR
$11.99
191 841879 841879 - SCREW
$2.99
192 841881 841881 - STARTER ROPE
$8.99
194 841921 841921 - FLYWHEEL CPL.
$120.99
195 841923 841923 - STARTER RATCHET CPL.
$45.99
