Engine Internals

Engine Internals

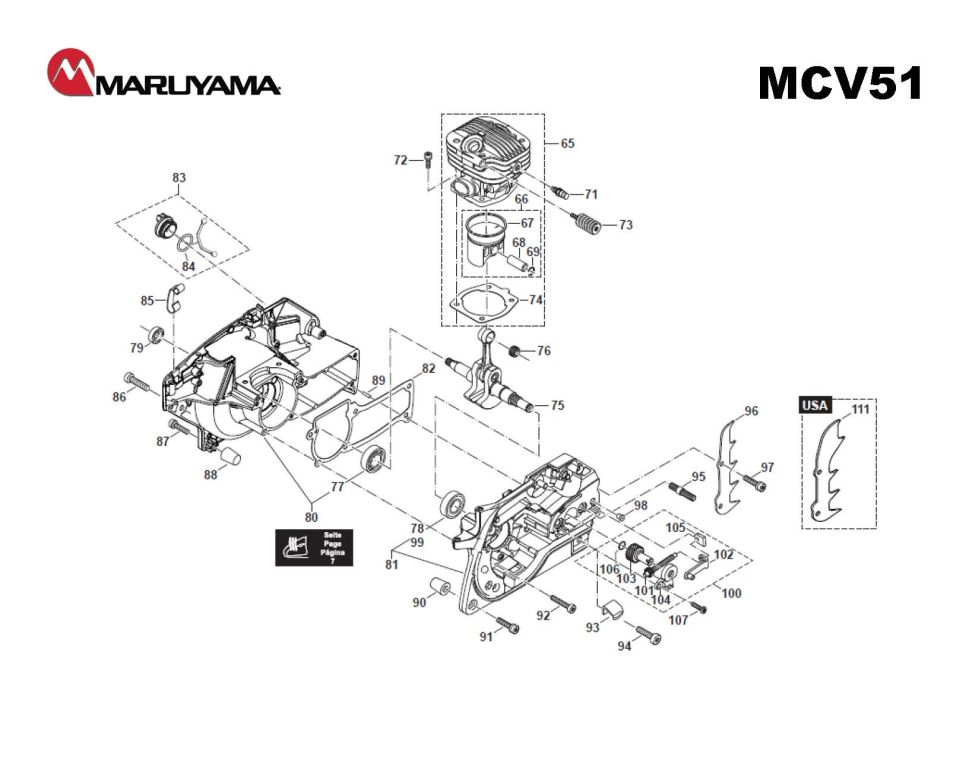

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV51. You have selected the Engine Internals diagram for the Maruyama MCV51 Chainsaws. Below you will find an interactive part diagram for the MCV51 Engine Internals. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV51 parts not shown in this diagram you may select from one of the other MCV51 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
65 841842 841842 - CYLINDER / PISTON CP
$302.99
66 841851 841851 - PISTON CPL.
$135.99
67 841852 841852 - PISTON RING
$42.99
68 841853 841853 - PISTON PIN
$45.99
69 841850 841850 - SPRING RING
$2.99
72 841933 841933 - SCREW
$2.99
73 841826 841826 - DAMPING SPRING, CPL.
$31.99
74 841847 841847 - GASKET
$17.99
75 841841 841841 - CRANKSHAFT CPL.
$276.99
76 841961 841961 - NEEDLE CAGE
$35.99
77 841959 841959 - BALL BEARING (USE GL
$35.99
78 841960 841960 - COMBINATION BALL BEA
$61.99
79 841964 841964 - RADIAL RING
$18.99
80 841821 841821 - CRANKC. M. SIDE BLAC
$122.99
81 841820 841820 - CRANKC. CL. SIDE BLA
$130.99
82 841818 841818 - GASKET
$15.99
83 841816 841816 - TANK CAP COMPLETE
$22.99
84 841966 841966 - PACKING RING
$5.99
85 841835 841835 - STEELCLIP
$12.99
86 841927 841927 - SCREW
$2.99
87 841932 841932 - SCREW
$2.99
88 841819 841819 - IMPACT PROTECTION
$16.99
89 841944 841944 - CLAMPING PIN
$2.99
92 841926 841926 - SCREW
$2.99
93 841817 841817 - CHAIN CATCH
$19.99
95 841924 841924 - SCREW
$19.99
96 841917 841917 - SPIKE BAR
$43.99
98 841807 841807 - VENT VALVE
$24.99
99 841963 841963 - RADIAL RING
$18.99
100 841904 841904 - CHAIN TENSIONER CPL.
$72.99
101 841899 841899 - TENSIONING SCREW
$35.99
102 841900 841900 - TENSION SLIDE
$24.99
103 841901 841901 - ADJUSTING SCREW
$45.99
104 841903 841903 - TRANSMISSION COVER
$21.99
105 841902 841902 - TENSIONING SCREW BEA
$5.99
106 841965 841965 - PACKING RING
$2.99
107 841931 841931 - SCREW
$2.99
111 841918 841918 - SPIKE BAR
$43.99
