Carburetor

Carburetor

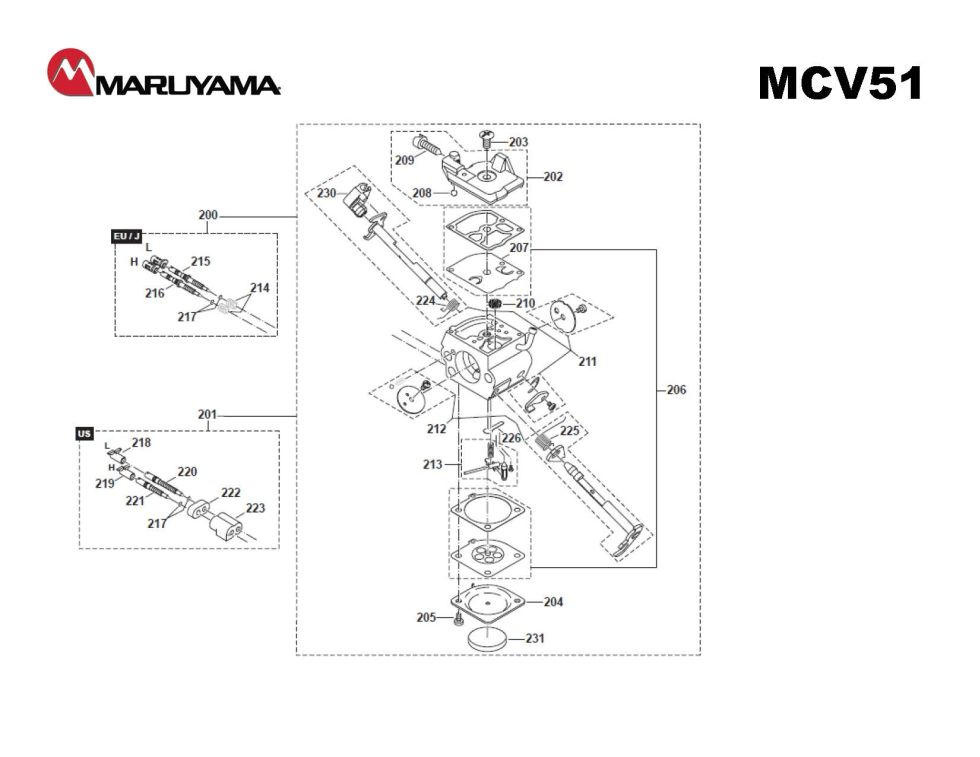

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV51. You have selected the Carburetor diagram for the Maruyama MCV51 Chainsaws. Below you will find an interactive part diagram for the MCV51 Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV51 parts not shown in this diagram you may select from one of the other MCV51 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
201 841870 841870 - CARBURETOR
$206.99
202 841857 841857 - PUMP COVER CPL.
$53.99
203 841814 841814 - SCREW
$9.99
204 841858 841858 - DIAPHRAGM COVER
$20.99
205 841801 841801 - SCREW
$9.99
206 841856 841856 - SET DIAPHRAGM / GASK
$55.99
207 841859 841859 - PUMP DIAPHRAGM TEFLO
$18.99
207 841860 841860 - PUMP DIAPHRAGM RUBBE
$23.99
208 841811 841811 - FRICTION BALL
$11.99
209 841861 841861 - IDLE STOP SCREW
$21.99
210 841810 841810 - SCREEN
$6.99
211 841954 841954 - KIT THROTTLE SHAFT
$73.99
212 841953 841953 - KIT CHOKE SHAFT
$83.99
213 841952 841952 - CONTROL PARTS
$85.99
217 841865 841865 - WASHER
$12.99
218 841868 841868 - LIMITER CAP, WHITE
$14.99
219 841812 841812 - LIMITER CAP, RED
$14.99
220 841866 841866 - IDLE ADJUSTMENT SCRE
$30.99
221 841867 841867 - MAIN ADJUSTMENT SCRE
$31.99
222 841869 841869 - RUBBER RING
$24.99
223 841813 841813 - ADJUSTING GUIDE
$34.99
224 841862 841862 - SPRING
$11.99
225 841863 841863 - SPRING
$13.99
230 841864 841864 - PLUG-WELCH
$11.99
231 841968 841968 - GASKET
$5.99
