Engine Case

Engine Case

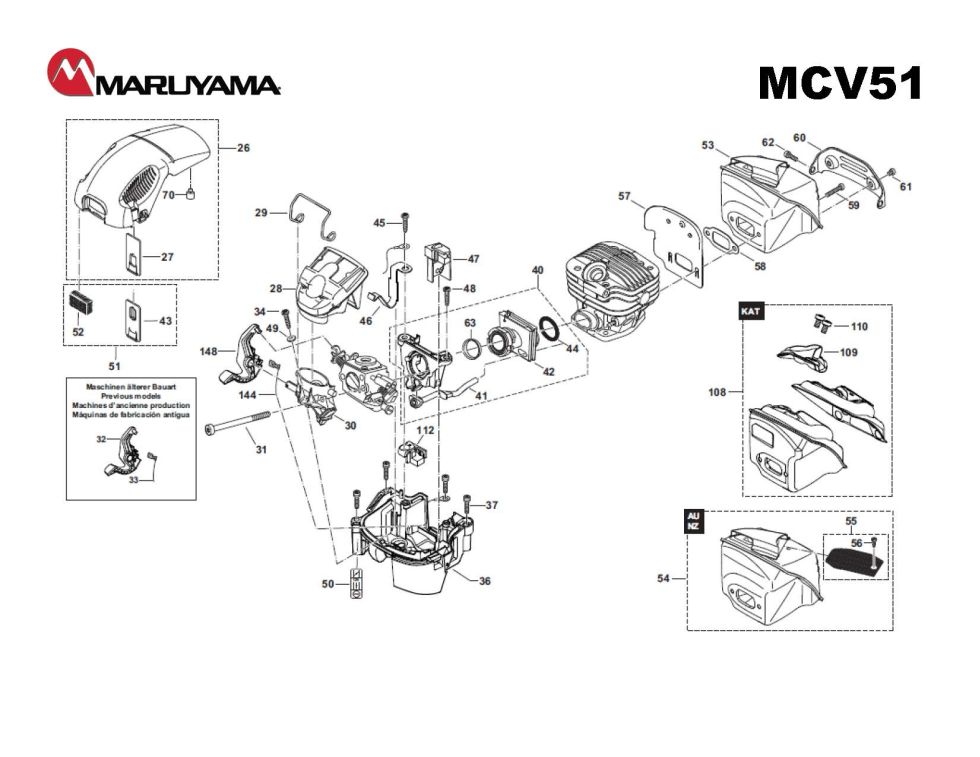

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV51. You have selected the Engine Case diagram for the Maruyama MCV51 Chainsaws. Below you will find an interactive part diagram for the MCV51 Engine Case. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV51 parts not shown in this diagram you may select from one of the other MCV51 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
26 841840 841840 - USE: 841977
$37.99
27 841836 841836 - INSERT
$12.99
28 841884 841884 - AIR FILTER ASSY
$74.99
29 841882 841882 - CLIP FOR AIR FILTER
$12.99
30 841806 841806 - MODIFICATION SET
$44.99
31 841929 841929 - SCREW
$6.99
34 841935 841935 - SCREW
$2.99
36 841849 841849 - BOTTOM BLACK
$116.99
37 841932 841932 - SCREW
$2.99
40 841883 841883 - FLANGE KPL.
$110.99
41 841846 841846 - TUBE
$28.99
42 841844 841844 - SUCTION HOSE
$70.99
43 841839 841839 - INSERT (SNOW)
$25.99
44 841845 841845 - ANNULAR SPRING
$10.99
46 841872 841872 - CONTACT SPRING
$20.99
47 841871 841871 - ADJUSTING GUIDE
$14.99
49 841942 841942 - DISC
$2.99
50 841973 841973 - LABEL
$12.99
51 841955 841955 - SNOW FILTER SET
$29.99
52 841885 841885 - PRE-FILTER
$10.99
57 841887 841887 - COOLING PLATE
$6.99
58 841886 841886 - GASKET
$10.99
59 841926 841926 - SCREW
$2.99
60 841888 841888 - SHEET-METAL
$18.99
61 841934 841934 - SCREW
$2.99
63 841843 841843 - INSERT
$2.99
70 841837 841837 - DAMPING PLUG
$16.99
108 841889 841889 - MUFFLER
$199.99
109 841890 841890 - SPARK ARRESTER SCREE
$41.99
110 841925 841925 - SCREW
$2.99
112 841848 841848 - RUBBER BUSH
$16.99
144 841970 841970 - EARTH CABLE
$17.99
148 841873 841873 - CHOKE ON/OFF SWITCH
$16.99
