Main Body

Main Body

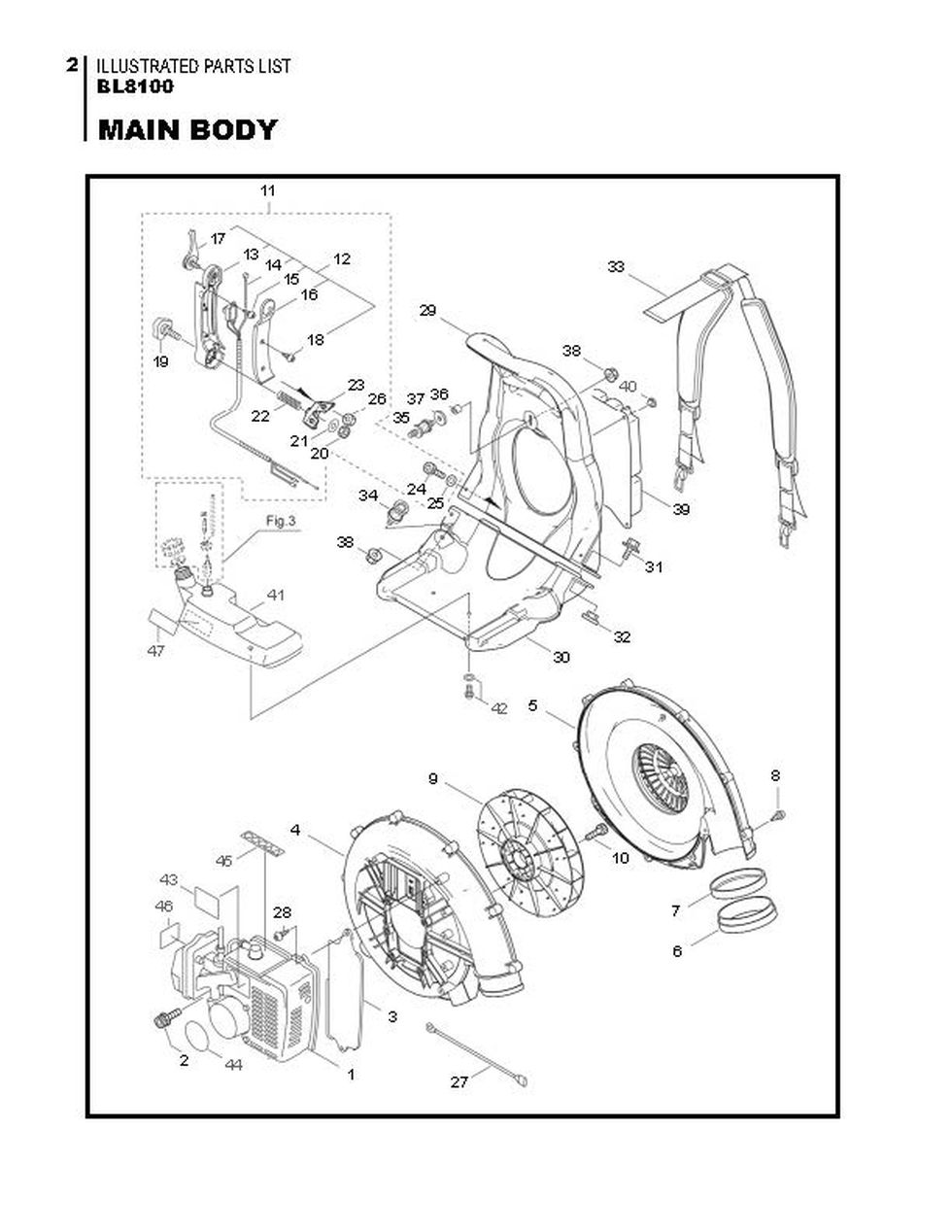

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8100. You have selected the Main Body diagram for the Maruyama BL8100 Blowers. Below you will find an interactive part diagram for the BL8100 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8100 parts not shown in this diagram you may select from one of the other BL8100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 125402 125402 - ENGINE TK65
$449.99
2 125588 125588 - BOLT
$2.99
3 125404 125404 - GASKET
$16.99
4 125405 125405 - FAN CASE / ENGINE SI
$56.99
5 125410 125410 - FAN CASE / FRAME SID
$46.99
6 119160 119160 - COLLAR
$5.99
7 119161 119161 - BAND
$7.99
9 125414 125414 - NS FAN (obsolete)
use part #128097
$75.99
10 125420 125420 - NLA BOLT
$2.99
11 125421 125421 - THROTTLE ASSY
$57.99
12 125445 125445 - ARM ASSY
$55.99
13 123497 123497 - ARM
$29.99
14 125446 125446 - THROTTLE WIRE
$41.99
15 120502 120502 - TAPPING SCREW
$2.99
16 125783 125783 - THROTTLE LEVER
$20.99
17 123498 123498 - COVER
$19.99
18 120517 120517 - TAPPING SCREW
$2.99
19 110271 110271 - BOLT
$16.99
20 107581 107581 - NYLON NUT
$2.99
21 065413 065413 - WASHER
$2.99
22 120721 120721 - SPRING
$2.99
23 125423 125423 - HOLDER
$8.99
24 125589 125589 - CAP SCREW
$2.99
25 015479 015479 - WASHER
$2.99
26 125621 125621 - NUT
$2.99
27 108634 108634 - GROUND CABLE
$6.99
28 124971 124971 - TAPPING SCREW
$2.99
29 125427 125427 - BACKPACK FRAME A
$37.99
30 125429 125429 - BACKPACK FRAME B
$35.99
31 092506 092506 - BOLT
$2.99
32 109704 109704 - USE: 127228
$2.99
33 125432 125432 - SHOULDER STRAP ASSY
$33.99
34 120615 120615 - SHOCK ABSORBER
$22.99
35 101877 101877 - BUFFER
$21.99
36 120616 120616 - SPACER
$2.99
37 120617 120617 - WASHER
$2.99
39 119177 119177 - PAD
$31.99
40 100749 100749 - PAD RETAINER
$2.99
41 120154 120154 - FUEL TANK (obsolete)
use part #127673
$31.99
42 125561 125561 - SCREW
$2.99
43 125437 125437 - LABEL / DECAL
$2.99
44 123954 123954 - LABEL
$2.99
45 266959 266959 - LABEL
$6.99
46 125747 125747 - LABEL
$2.99
47 121132 121132 - LABEL(BP400)
$5.99
