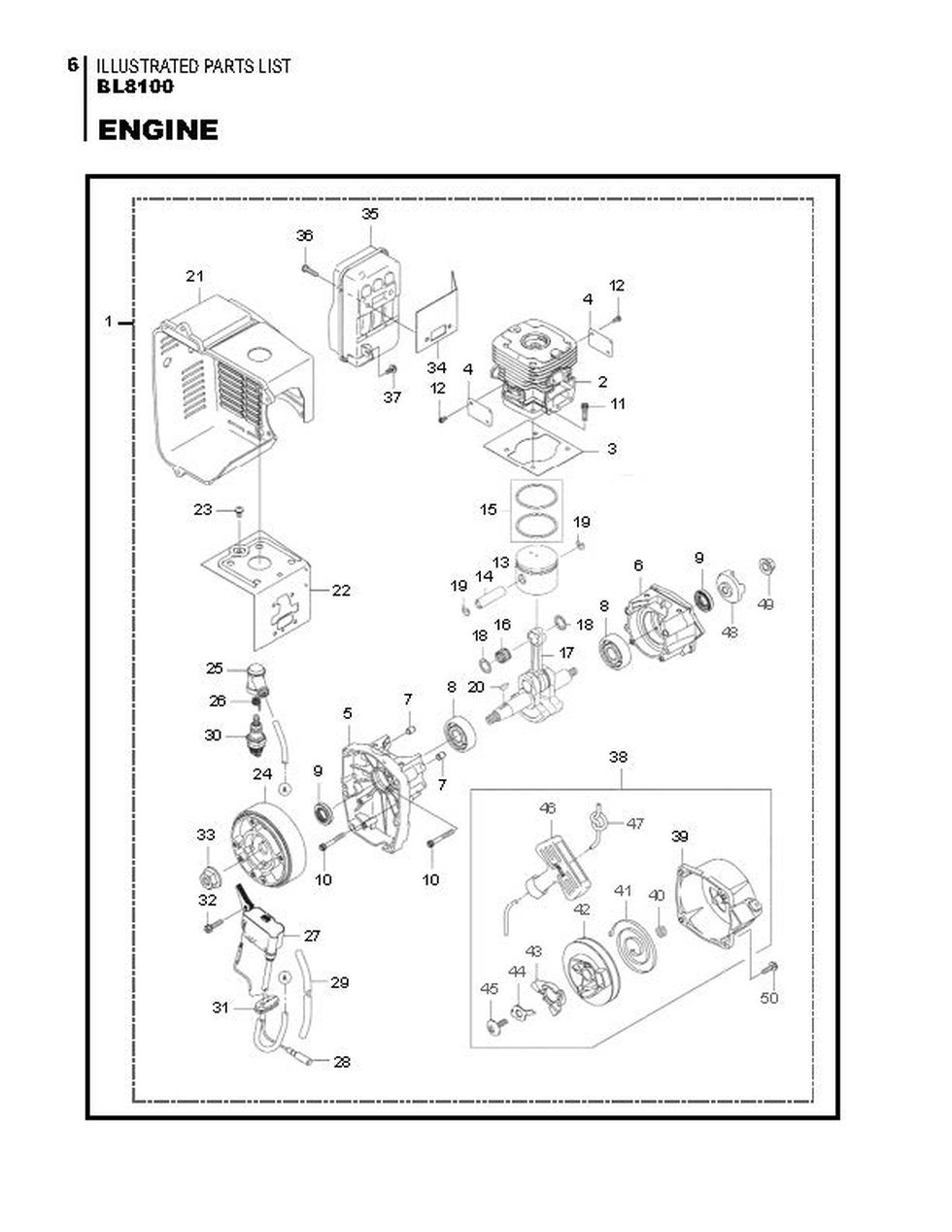

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8100. You have selected the Engine diagram for the Maruyama BL8100 Blowers. Below you will find an interactive part diagram for the BL8100 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8100 parts not shown in this diagram you may select from one of the other BL8100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 125402 | 125402 - ENGINE TK65 |
$449.99
|
|
| 2 | 649312 | 649312 - USE: 426073 |
$107.99
|
|
| 3 | 649313 | 649313 - USE: 415369 |
$17.99
|
|
| 4 | 649314 | 649314 - PLATE |
$6.99
|
|
| 5 | 649315 | 649315 - CRANKCASE |
$140.99
|
|
| 6 | 649316 | 649316 - CRANKCASE |
$118.99
|
|
| 7 | 573908 | 573908 - PIN |
$2.99
|
|
| 8 | 649317 | 649317 - USE: 426078 |
$25.99
|
|
| 9 | 649318 | 649318 - USE: 414429 |
$19.99
|
|
| 10 | 649319 | 649319 - BOLT |
$2.99
|
|
| 11 | 649320 | 649320 - USE: 414430 |
$2.99
|
|
| 12 | 943572 | 943572 - SCREW |
$2.99
|
|
| 13 | 649321 | 649321 - PISTON |
$80.99
|
|
| 14 | 649322 | 649322 - PISTON PIN |
$40.99
|
|
| 15 | 649323 | 649323 - USE: 426081 |
$29.99
|
|
| 16 | 649325 | 649325 - BEARING |
$25.99
|
|
| 17 | 649326 | 649326 - NLA CRANKSHAFT ASSY |
$196.99
|
|
| 18 | 649327 | 649327 - SPACER |
$6.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 071695 | 071695 - KEY |
$5.99
|
|
| 21 | 649328 | 649328 - SHROUD |
$93.99
|
|
| 22 | 649329 | 649329 - SHROUD |
$17.99
|
|
| 23 | 996258 | 996258 - USE: 414435 |
$2.99
|
|
| 24 | 649330 | 649330 - FLYWHEEL |
$167.99
|
|
| 25 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 26 | 591533 | 591533 - SPRING |
$2.99
|
|
| 27 | 649331 | 649331 - IGN COIL ASSY |
$214.99
|
|
| 28 | 649332 | 649332 - LEAD WIRE |
$11.99
|
|
| 29 | 998411 | 998411 - TUBE |
$2.99
|
|
| 30 | 649333 | 649333 - SPARK PLUG |
$18.99
|
|
| 31 | 649334 | 649334 - GROMMET |
$6.99
|
|
| 32 | 649335 | 649335 - BOLT |
$2.99
|
|
| 33 | 649336 | 649336 - NUT M10 |
$11.99
|
|
| 34 | 649353 | 649353 - USE: 426101 |
$22.99
|
|
| 35 | 649357 | 649357 - USE: 415373 |
$118.99
|
|
| 36 | 649361 | 649361 - USE: 414450 |
$2.99
|
|
| 37 | 943466 | 943466 - USE: 414452 |
$2.99
|
|
| 38 | 649375 | 649375 - USE: 400921 |
$74.99
|
|
| 39 | 649372 | 649372 - CASE RECOIL STARTER |
$69.99
|
|
| 40 | 649378 | 649378 - SPRING |
$7.99
|
|
| 41 | 649379 | 649379 - SPRING, RECOIL |
$38.99
|
|
| 42 | 649376 | 649376 - REEL, RECOIL STARTER |
$35.99
|
|
| 43 | 649370 | 649370 - PAWL |
$10.99
|
|
| 44 | 649371 | 649371 - RETAINER |
$19.99
|
|
| 45 | 649380 | 649380 - SCREW |
$7.99
|
|
| 46 | 649373 | 649373 - GRIP, RECOIL STARTER |
$15.99
|
|
| 47 | 649377 | 649377 - ROPE |
$21.99
|
|
| 48 | 649374 | 649374 - PULLEY, STARTING |
$8.99
|
|
| 49 | 649381 | 649381 - NUT |
$2.99
|
|
| 50 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
