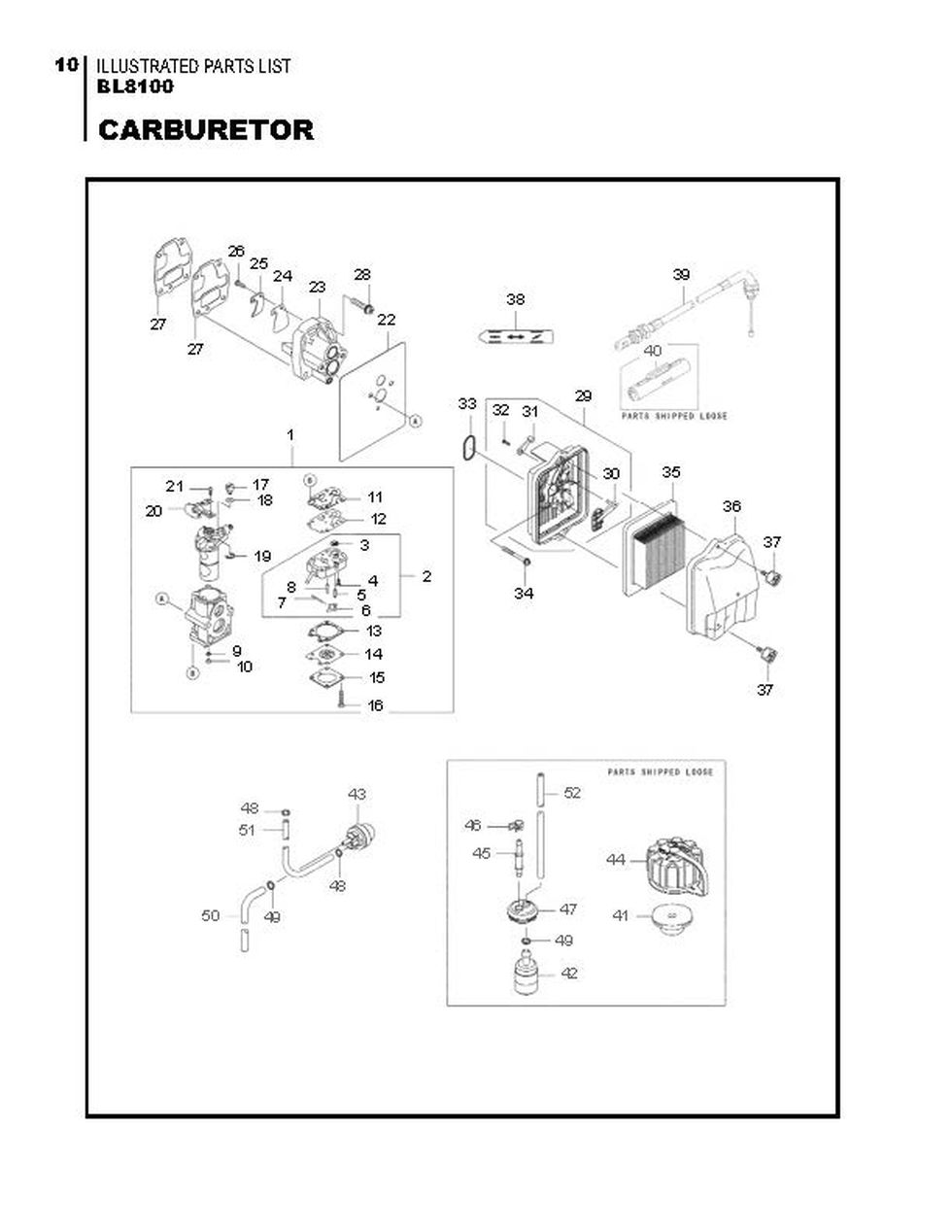

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8100. You have selected the Carburetor diagram for the Maruyama BL8100 Blowers. Below you will find an interactive part diagram for the BL8100 Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8100 parts not shown in this diagram you may select from one of the other BL8100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 649344 |
649344 - USE: CAWYA59 (obsolete) use part #426098 |
$144.99
|
|
| 2 | 649346 | 649346 - BODY |
$72.99
|
|
| 3 | 624430 | 624430 - FILTER |
$23.99
|
|
| 4 | 624432 | 624432 - SCREW |
$11.99
|
|
| 5 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 6 | 624429 | 624429 - LEVER |
$19.99
|
|
| 7 | 624433 | 624433 - PIN |
$8.99
|
|
| 8 | 624434 | 624434 - SPRING |
$13.99
|
|
| 9 | 577182 | 577182 - USE: 261871 |
$8.99
|
|
| 10 | 649349 | 649349 - MAIN JET #55.5 |
$24.99
|
|
| 11 | 634350 | 634350 - GASKET |
$18.99
|
|
| 12 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 13 | 649339 | 649339 - GASKET |
$13.99
|
|
| 14 | 634357 | 634357 - DIAPHRAGM |
$29.99
|
|
| 15 | 649343 | 649343 - COVER |
$19.99
|
|
| 16 | 649348 | 649348 - SCREW |
$5.99
|
|
| 17 | 598415 | 598415 - ARM |
$21.99
|
|
| 18 | 624532 | 624532 - WASHER |
$7.99
|
|
| 19 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 20 | 649338 | 649338 - BRACKET |
$29.99
|
|
| 21 | 577179 | 577179 - SCREW |
$8.99
|
|
| 22 | 649341 | 649341 - USE: 412446 |
$17.99
|
|
| 23 | 649345 | 649345 - INSULATOR |
$23.99
|
|
| 24 | 649342 | 649342 - REED VALVE |
$15.99
|
|
| 25 | 649347 | 649347 - STOPPER |
$2.99
|
|
| 26 | 649350 | 649350 - SCREW |
$2.99
|
|
| 27 | 649340 | 649340 - USE: 400925 |
$8.99
|
|
| 28 | 577361 | 577361 - SCREW |
$2.99
|
|
| 29 | 649352 | 649352 - NLA FILTER COVER ASS |
$44.99
|
|
| 30 | 649356 | 649356 - VALVE |
$11.99
|
|
| 31 | 649355 | 649355 - LEVER |
$11.99
|
|
| 32 | 649358 | 649358 - SCREW |
$2.99
|
|
| 33 | 649359 | 649359 - USE: 423450 |
$2.99
|
|
| 34 | 944305 | 944305 - SCREW |
$2.99
|
|
| 35 | 649351 |
649351 - USE: 426099 (obsolete) use part #426099 |
$35.99
|
|
| 36 | 649354 | 649354 - CAP, AIR FILTER |
$37.99
|
|
| 37 | 649360 |
649360 - USE: 419574 (obsolete) use part #419574 |
$13.99
|
|
| 38 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 39 | 649337 | 649337 - THROTTLE CABLE |
$27.99
|
|
| 40 | 212250 | 212250 - CASE |
$5.99
|
|
| 41 | 649362 |
649362 - USE: 630564 (obsolete) use part #425442 |
$29.99
|
|
| 42 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 43 | 649363 |
649363 - USE: 415374 (obsolete) use part #415374 |
$30.99
|
|
| 44 | 649364 | 649364 - FUEL CAP |
$26.99
|
|
| 45 | 632199 | 632199 - JOINT |
$7.99
|
|
| 46 | 944177 | 944177 - CLAMP |
$2.99
|
|
| 47 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 48 | 649365 | 649365 - CLAMP |
$2.99
|
|
| 49 | 649366 | 649366 - CLAMP |
$2.99
|
|
| 50 | 649367 | 649367 - USE: 415375 |
$7.99
|
|
| 51 | 649368 | 649368 - TUBE |
$2.99
|
|
| 52 | 649369 | 649369 - TUBE |
$20.99
|
