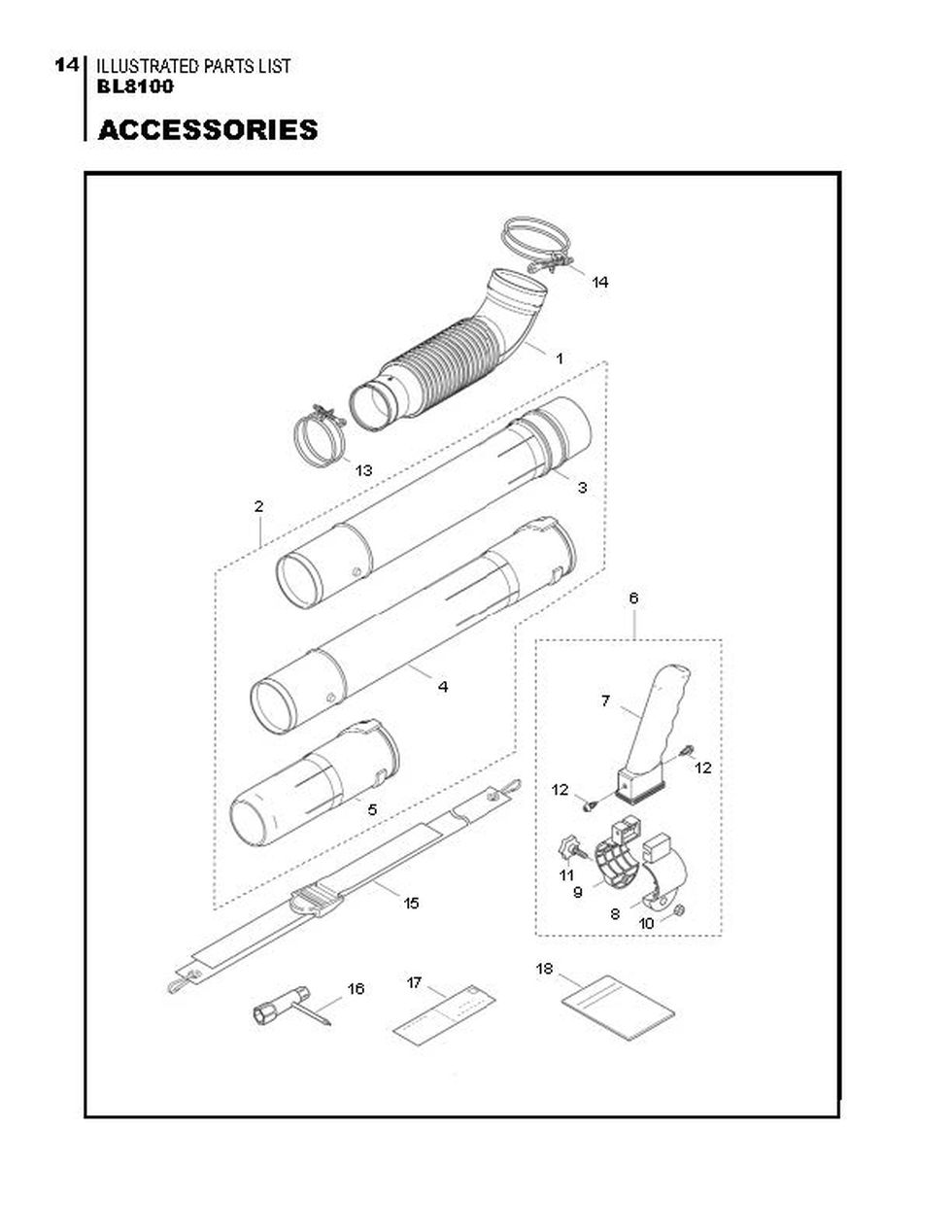

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8100. You have selected the Accessories diagram for the Maruyama BL8100 Blowers. Below you will find an interactive part diagram for the BL8100 Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8100 parts not shown in this diagram you may select from one of the other BL8100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 123413 | 123413 - FLEXIBLE PIPE |
$27.99
|
|
| 2 | 125145 | 125145 - PIPE ASSY. |
$28.99
|
|
| 3 | 122395 | 122395 - SWIVEL PIPE |
$22.99
|
|
| 4 | 122400 | 122400 - STRAIGHT PIPE |
$23.99
|
|
| 5 | 125146 | 125146 - CONE PIPE |
$12.99
|
|
| 6 | 123131 | 123131 - GRIP ASSY (LARGE) |
$22.99
|
|
| 7 | 122629 | 122629 - GRIP |
$9.99
|
|
| 8 | 122414 |
122414 - BAND A (obsolete) use part #122609 |
$14.99
|
|
| 9 | 122416 |
122416 - BAND B (obsolete) use part #122609 |
$14.99
|
|
| 10 | 081031 | 081031 - NUT M6 |
$2.99
|
|
| 11 | 122610 | 122610 - KNOB BOLT |
$5.99
|
|
| 12 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 13 | 125646 | 125646 - NLA WIRE CLAMP SM |
$8.99
|
|
| 14 | 125647 | 125647 - NLA WIRE CLAMP LR |
$7.99
|
|
| 15 | 125439 | 125439 - HIP BELT ASSY |
$17.99
|
|
| 16 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
