Main Body

Main Body

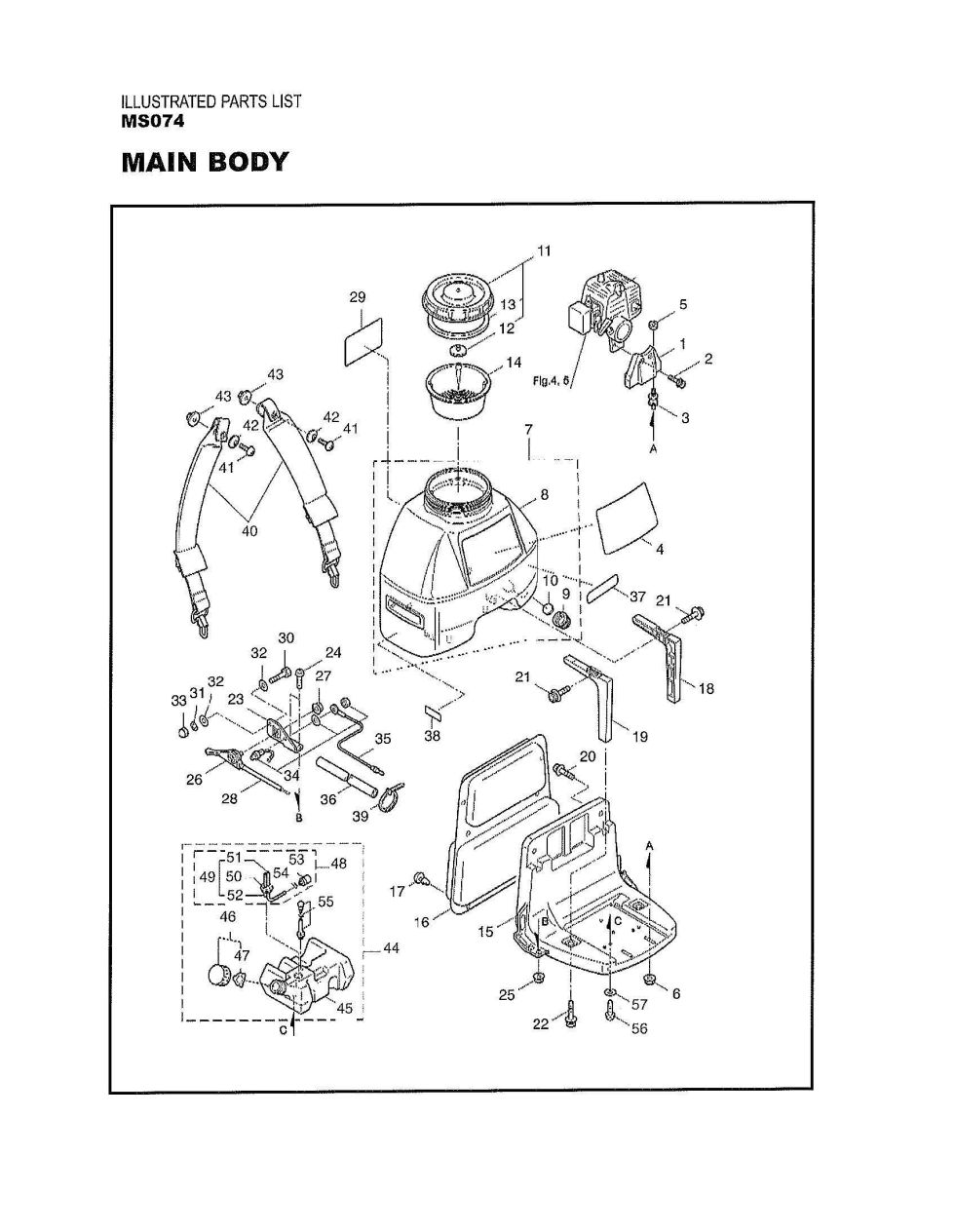

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS074. You have selected the Main Body diagram for the Maruyama MS074 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS074 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS074 parts not shown in this diagram you may select from one of the other MS074 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 269679 269679 - BRACKET
$14.99
2 261607 261607 - BOLT M5X16
$2.99
3 109246 109246 - BUFFER MS046
$12.99
4 125546 125546 - DECAL
$16.99
6 109704 109704 - USE: 127228
$2.99
7 119829 119829 - NLA CHEMICAL TAN
$119.99
8 119030 119030 - CHEMICAL TANK (obsolete)
use part #566117
$96.99
9 106333 106333 - CAP
$90.99
10 029299 029299 - BLIND PACKING
$2.99
11 122796 122796 - CHEMICAL TANK CAP AS
$23.99
12 123369 123369 - BEN
$2.99
13 022362 022362 - PACKING, CHEMICAL TA
$16.99
14 106330 106330 - STRAINER
$21.99
15 125492 125492 - BASE
$53.99
16 124254 124254 - CUSHION PAD
$22.99
17 100749 100749 - PAD RETAINER
$2.99
18 118002 118002 - STAY (R)
$16.99
19 118004 118004 - STAY (L)
$16.99
20 816015 816015 - USE: 127238
$2.99
21 123952 123952 - CAP SCREW
$2.99
22 123951
$2.99
23 113674 113674 - STAY
$15.99
24 081415 081415 - SCREW M5X.8X16
$2.99
25 103549 103549 - NLA FLANGE NUT
$2.99
26 115148 115148 - THROTTLE LEVER
$17.99
28 121616 121616 - THROTTLE CABLE
$13.99
29 122799 122799 - LABEL
$2.99
30 082094 082094 - BOLT
$2.99
31 012502 012502 - SPRING WASHER
$2.99
32 012488 012488 - WASHER M6
$2.99
33 089750 089750 - NUT
$2.99
34 114895 114895 - STOP BUTTON
$23.99
35 114896 114896 - GROUND WIRE
$6.99
36 114901 114901 - VINYL HOSE
$2.99
37 120675 120675 - DECAL
$2.99
38 106067 106067 - LABEL (SPEED-CAUTION
$2.99
39 157753 157753 - BAND
$2.99
40 123105 123105 - KNAPSACK BAND
$28.99
42 100603 100603 - USE: 127224
$2.99
43 550132 550132 - USE: 127237
$2.99
44 121625 121625 - FUEL TANK ASSY
$37.99
45 121626 121626 - FUEL TANK
$27.99
46 261584 261584 - FUEL TANK CAP ASSY
$15.99
47 261105 261105 - PACKING
$2.99
48 267309 267309 - FUEL PIPE ASSY.
$24.99
49 266955 266955 - FUEL PIPE ASSY.
$17.99
50 261115 261115 - USE: 261112 (obsolete)
use part #266955
$17.99
51 265469 265469 - FUEL PIPE
$2.99
52 263038 263038 - RETURN PIPE
$2.99
54 261117 261117 - CLIP
$2.99
55 261696 261696 - BREATHER ASSY
$8.99
56 081414 081414 - SCREW
$2.99
57 015479 015479 - WASHER
$2.99
