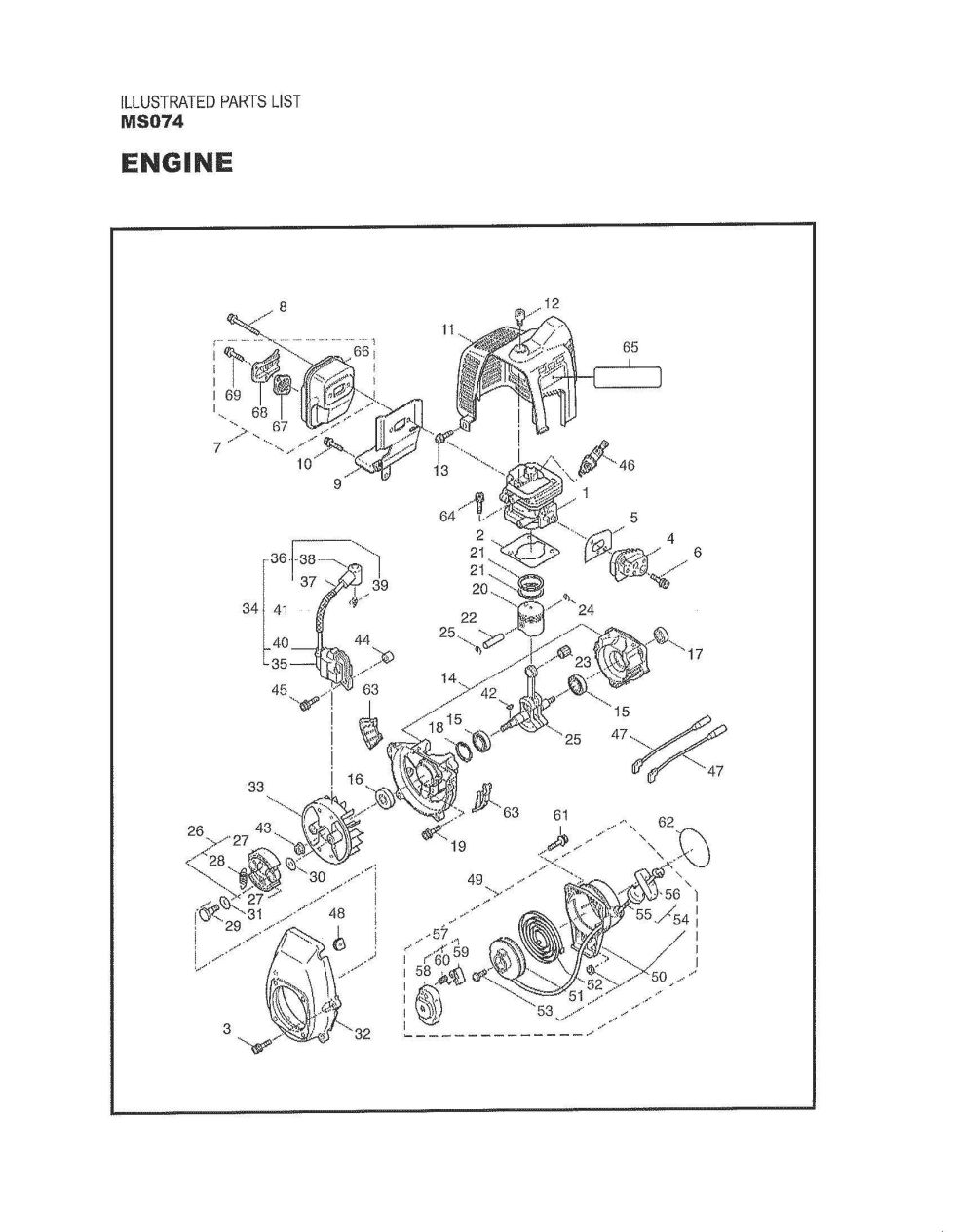

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS074. You have selected the Engine diagram for the Maruyama MS074 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS074 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS074 parts not shown in this diagram you may select from one of the other MS074 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 266249 266249 - CYLINDER
$114.99
2 267178 267178 - NLA GASKET (obsolete)
use part #283420
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 265802 265802 - INSULATOR
$27.99
5 267049 267049 - GASKET
$2.99
6 265924 265924 - CAP SCREW 5X25
$2.99
7 267051 267051 - MUFFLER ASSEMBLY
$27.99
8 266264 266264 - CAP SCREW
$2.99
9 267189 267189 - GASKET
$16.99
11 267060 267060 - TOP COVER ASSY
$21.99
12 264022 264022 - USE: 286349 (obsolete)
use part #286349
$2.99
13 267177 267177 - SCREW
$2.99
14 267063 267063 - CRANKCASE
$49.99
15 280488 280488 - USE: 261491
$13.99
16 261492 261492 - OIL SEAL
$2.99
17 261386 261386 - OIL SEAL
$2.99
18 055185 055185 - SNAP RING
$2.99
19 261612 261612 - BOLT
$2.99
20 266467 266467 - USE: 281300
$31.99
21 264891 264891 - PISTON RING
$14.99
22 261036 261036 - PISTON PIN
$16.99
23 263957 263957 - BEARING NEEDLE
$21.99
24 261576 261576 - CIRCLIP
$2.99
25 267193 267193 - CRANKSHAFT COMP
$74.99
26 264887 264887 - CLUTCH ASSY.
$28.99
27 264888 264888 - CLUTCH SHOE
$22.99
28 264889 264889 - SPRING
$5.99
29 264505 264505 - CLUTCH BOLT
$5.99
30 261189 261189 - WASHER
$2.99
31 261777 261777 - WAVE WASHER
$2.99
33 261356 261356 - ROTOR
$69.99
34 267173 267173 - USE: 267400
$62.99
35 267174 267174 - USE: 267401
$69.99
36 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
37 267404 267404 - SPARK PLUG WIRE
$2.99
38 261074 261074 - PLUG CAP
$13.99
39 261075 261075 - CONNECTOR
$2.99
40 261072 261072 - CAP
$2.99
42 261076 261076 - WOODRUFF KEY
$2.99
43 261417 261417 - ROTOR NUT
$8.99
44 268380 268380 - USE: 280381
$2.99
45 261256 261256 - BOLT M4X25
$2.99
46 261200 261200 - SPARK PLUG
$20.99
47 267492 267492 - LEAD
$7.99
48 261202 261202 - GROMMET
$2.99
49 264488 264488 - RECOIL STARTER ASSY.
$44.99
50 264489 264489 - RECOIL ASSY.
$38.99
51 261621 261621 - REEL
$14.99
52 261622 261622 - SPIRAL SPRING
$19.99
53 262922 262922 - SCREW
$2.99
54 261626 261626 - ROPE ASSY
$21.99
55 261627 261627 - STARTER ROPE
$8.99
56 261628 261628 - STARTER GRIP
$10.99
57 268489 268489 - STARTER PULLEY ASSY.
$17.99
58 268490 268490 - STARTER PULLEY
$22.99
59 263473 263473 - PAWL
$10.99
60 263474 263474 - RETURN SPRING
$2.99
61 265726 265726 - SCREW
$2.99
63 264582 264582 - SCREEN
$6.99
64 267290 267290 - CAP SCREW
$2.99
66 267052 267052 - MUFFLER COMP
$22.99
67 267056 267056 - SPARK ARRESTER
$7.99
68 267053 267053 - TAIL
$7.99
69 265107 265107 - BOLT
$2.99
