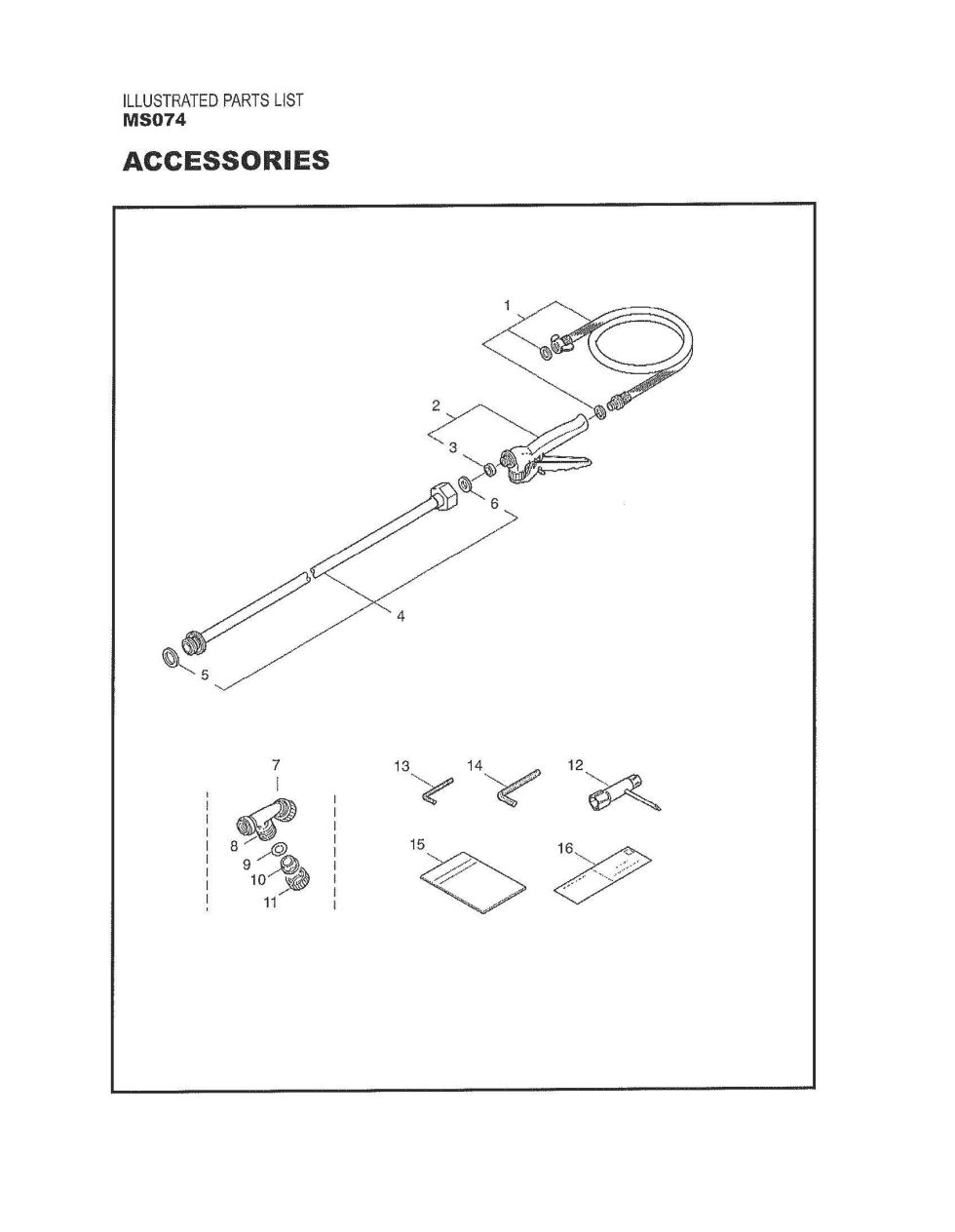

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS074. You have selected the Accessories diagram for the Maruyama MS074 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS074 Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS074 parts not shown in this diagram you may select from one of the other MS074 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 123244 123244 - USE: 118270
$28.99
2 112852 112852 - LEVER COCK (obsolete)
use part #660583
$90.99
3 112850 112850 - USE: 574698
$2.99
4 124042 124042 - NOZZLE PIPE
$31.99
6 119218 119218 - PACKING
$2.99
7 117958 117958 - NOZZLE (obsolete)
use part #471938
$31.99
8 103170 103170 - NOZZLE
$29.99
9 103171 103171 - NLA PACKING
$2.99
10 118266 118266 - NLA NOZZLE PLATE D-5
$12.99
11 103173 103173 - CAP
$12.99
12 210418 210418 - BOX WRENCH/DRIVER
$16.99
13 062047 062047 - HEX WRENCH (3MM)
$2.99
14 105489 105489 - HEX WRENCH (4MM)
$2.99
