Throttle

Throttle

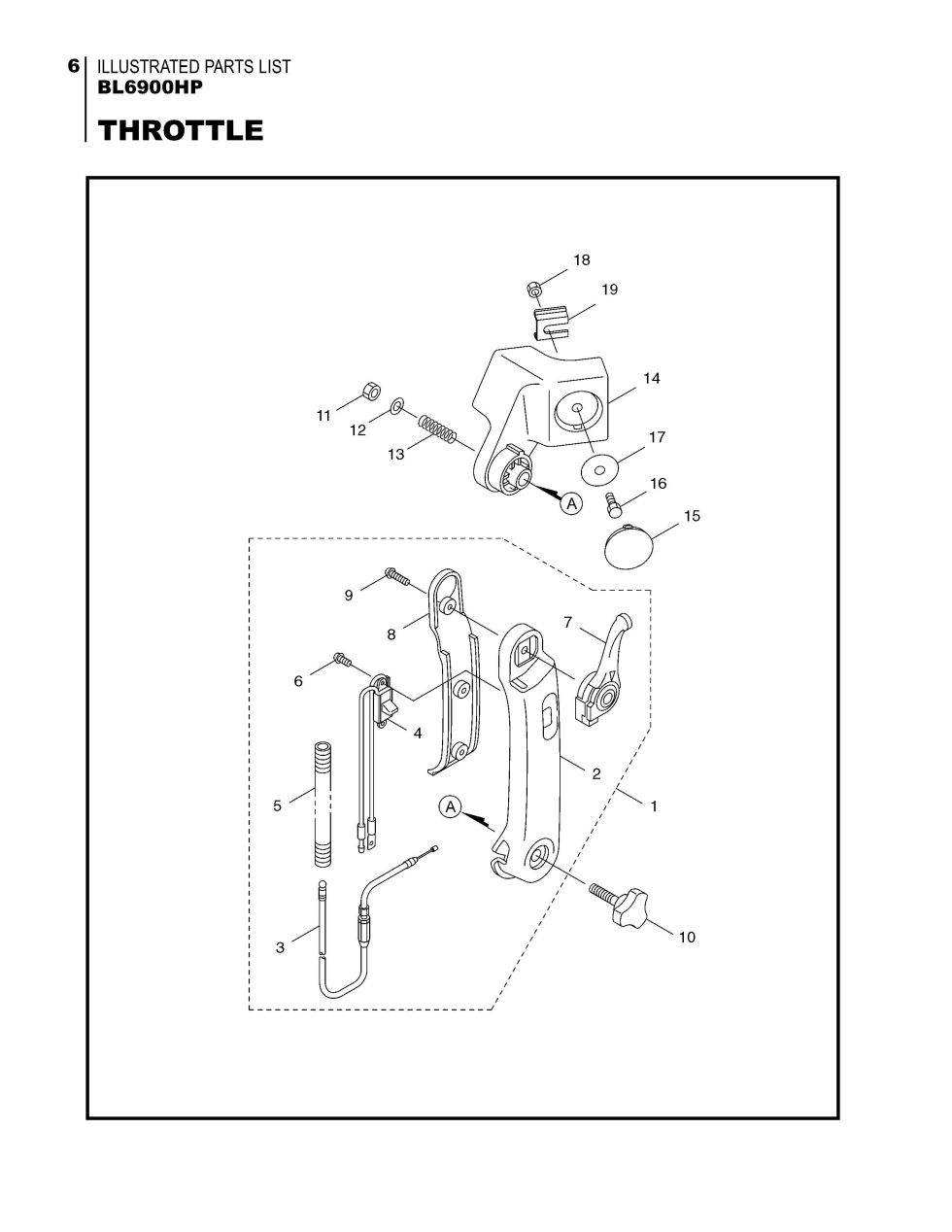

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6900HP. You have selected the Throttle diagram for the Maruyama BL6900HP Blowers. Below you will find an interactive part diagram for the BL6900HP Throttle. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6900HP parts not shown in this diagram you may select from one of the other BL6900HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 123496 123496 - ARM ASSY.
$56.99
2 123497 123497 - ARM
$29.99
3 120515 120515 - THROTTLE CABLE
$30.99
4 120501 120501 - SWITCH ASSY
$28.99
5 120516 120516 - TUBE
$11.99
6 120502 120502 - TAPPING SCREW
$2.99
7 120504 120504 - THROTTLE LEVER
$20.99
8 123498 123498 - COVER
$19.99
9 120517 120517 - TAPPING SCREW
$2.99
10 110271 110271 - BOLT
$16.99
11 107581 107581 - NYLON NUT
$2.99
12 065413 065413 - WASHER
$2.99
13 120721 120721 - SPRING
$2.99
14 123499 123499 - HOLDER
$15.99
15 110729 110729 - CAP
$2.99
16 080129 080129 - BOLT
$2.99
19 110865 110865 - BRACKET MD6026 BL400
$2.99
