 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

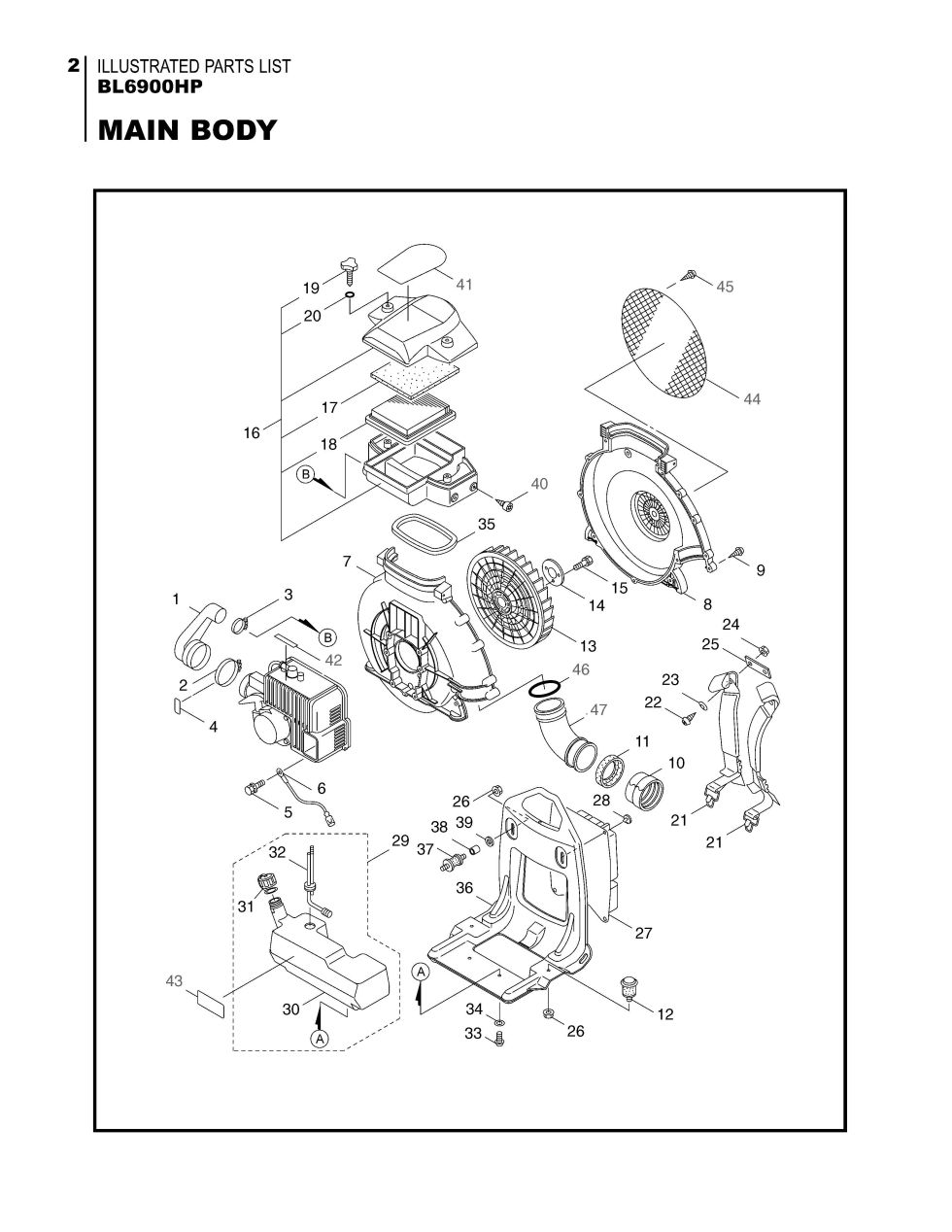

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6900HP. You have selected the Main Body diagram for the Maruyama BL6900HP Blowers. Below you will find an interactive part diagram for the BL6900HP Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6900HP parts not shown in this diagram you may select from one of the other BL6900HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 121753 | 121753 - INLET PIPE |
$28.99
|
|
| 2 | 121755 | 121755 - BAND |
$15.99
|
|
| 3 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 4 | 119613 | 119613 - LABEL |
$5.99
|
|
| 5 | 092544 | 092544 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 122364 | 122364 - FAN CASE(E) |
$68.99
|
|
| 8 | 121707 | 121707 - FAN CASE (S) |
$59.99
|
|
| 9 | 089538 | 089538 - SCREW |
$2.99
|
|
| 10 | 119160 | 119160 - COLLAR |
$5.99
|
|
| 11 | 119161 | 119161 - BAND |
$7.99
|
|
| 12 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 13 | 118724 | 118724 - FAN |
$68.99
|
|
| 14 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 15 | 096056 | 096056 - BOLT |
$2.99
|
|
| 16 | 123487 | 123487 - AIR CLEANER ASSY. |
$55.99
|
|
| 17 | 123493 | 123493 - ELEMENT |
$8.99
|
|
| 18 | 123492 | 123492 - FILTER |
$27.99
|
|
| 19 | 123494 | 123494 - KNOB |
$7.99
|
|
| 20 | 014187 | 014187 - O-RING |
$2.99
|
|
| 21 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 22 | 123370 | 123370 - SCREW(M6X20) |
$2.99
|
|
| 23 | 100603 | 100603 - USE: 127224 |
$2.99
|
|
| 24 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 26 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 27 | 119177 | 119177 - PAD |
$31.99
|
|
| 28 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 29 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 30 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 31 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 32 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 33 | 081414 | 081414 - SCREW |
$2.99
|
|
| 34 | 015479 | 015479 - WASHER |
$2.99
|
|
| 35 | 120536 | 120536 - PACKING |
$19.99
|
|
| 37 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 38 | 120616 | 120616 - SPACER |
$2.99
|
|
| 39 | 120617 | 120617 - WASHER |
$2.99
|
|
| 40 | 123194 | 123194 - TAPPING SCREW(M6X18) |
$2.99
|
|
| 41 | 123500 | 123500 - NLA LABEL |
$7.99
|
|
| 42 | 266959 | 266959 - LABEL |
$6.99
|
|
| 43 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 44 | 123486 | 123486 - COVER |
$15.99
|
|
| 45 | 120319 | 120319 - USE: 127300 |
$2.99
|
|
| 46 | 018236 | 018236 - O-RING |
$6.99
|
|
| 47 | 115243 | 115243 - ELBOW |
$31.99
|
