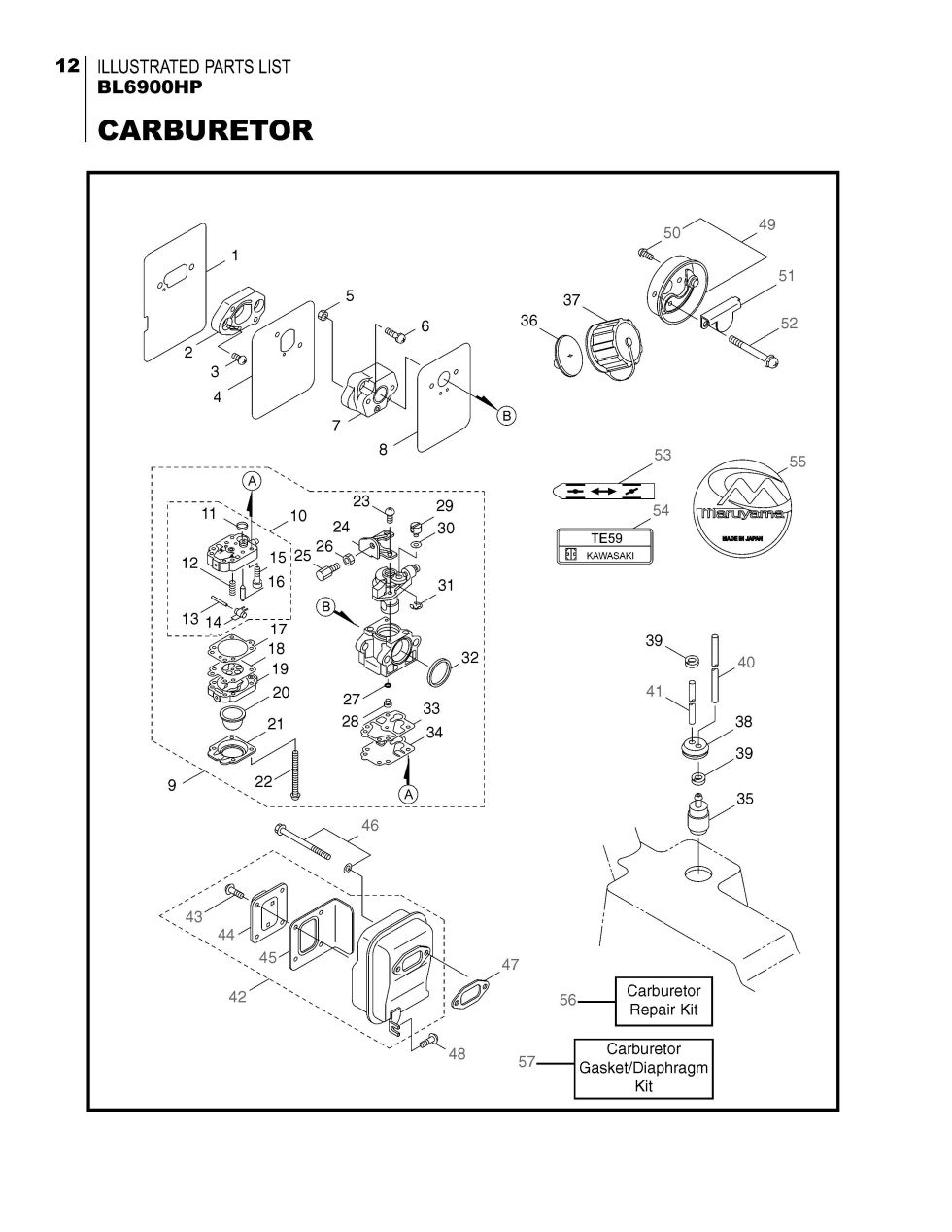

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6900HP. You have selected the Carburetor diagram for the Maruyama BL6900HP Blowers. Below you will find an interactive part diagram for the BL6900HP Carburetor. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6900HP parts not shown in this diagram you may select from one of the other BL6900HP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 627550 | 627550 - GASKET |
$8.99
|
|
| 2 | 625867 | 625867 - ADAPTER |
$38.99
|
|
| 3 | 625868 | 625868 - SCREW |
$2.99
|
|
| 5 | 594598 | 594598 - NUT |
$2.99
|
|
| 6 | 579565 | 579565 - SCREW |
$2.99
|
|
| 7 | 625866 | 625866 - INSULATOR |
$29.99
|
|
| 8 | 634428 | 634428 - GASKET |
$17.99
|
|
| 9 | 626822 | 626822 - BODY |
$61.99
|
|
| 10 | 626812 | 626812 - USE: 626822 |
$45.99
|
|
| 11 | 624430 | 624430 - FILTER |
$23.99
|
|
| 12 | 624434 | 624434 - SPRING |
$13.99
|
|
| 13 | 624433 | 624433 - PIN |
$8.99
|
|
| 14 | 624429 | 624429 - LEVER |
$19.99
|
|
| 15 | 624432 | 624432 - SCREW |
$11.99
|
|
| 16 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 18 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 19 | 598413 | 598413 - BODY |
$79.99
|
|
| 20 | 261874 | 261874 - PRIMER |
$10.99
|
|
| 21 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 22 | 262996 | 262996 - SCREW |
$2.99
|
|
| 23 | 577179 | 577179 - SCREW |
$8.99
|
|
| 24 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 25 | 598418 | 598418 - SCREW |
$14.99
|
|
| 26 | 261878 | 261878 - NUT |
$2.99
|
|
| 27 | 261871 | 261871 - O-RING |
$2.99
|
|
| 28 | 628092 | 628092 - MAIN JET #52 |
$26.99
|
|
| 29 | 598415 | 598415 - ARM |
$21.99
|
|
| 30 | 624532 | 624532 - WASHER |
$7.99
|
|
| 31 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 32 | 624528 | 624528 - NLA PACKING |
$2.99
|
|
| 33 | 577184 | 577184 - GASKET |
$22.99
|
|
| 34 | 577185 | 577185 - DIAPHRAGM |
$18.99
|
|
| 35 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 36 | 630564 |
630564 - USE: 425442 (obsolete) use part #425442 |
$29.99
|
|
| 37 | 625871 | 625871 - CAP ASSY |
$26.99
|
|
| 38 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 39 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 40 | 625873 | 625873 - TUBE |
$24.99
|
|
| 41 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 42 | 636763 | 636763 - MUFFLER ASSY |
$113.99
|
|
| 43 | 634366 | 634366 - SCREW |
$2.99
|
|
| 44 | 634430 | 634430 - SPARK ARRESTER |
$39.99
|
|
| 45 | 634360 | 634360 - GASKET |
$12.99
|
|
| 46 | 636828 | 636828 - BOLT & WASHER ASSY |
$12.99
|
|
| 47 | 636762 | 636762 - GASKET |
$21.99
|
|
| 48 | 943276 | 943276 - SCREW |
$2.99
|
|
| 49 | 637461 | 637461 - AIR FILTER CASE ASSY |
$33.99
|
|
| 50 | 628550 | 628550 - SCREW |
$2.99
|
|
| 51 | 626814 | 626814 - BUFFER |
$16.99
|
|
| 52 | 628095 | 628095 - SCREW |
$2.99
|
|
| 53 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 54 | 627554 | 627554 - NLA LABEL |
$2.99
|
|
| 55 | 123954 | 123954 - LABEL |
$2.99
|
|
| 57 | 840260 | 840260 - CARB GASKET/DIAPHRAG |
$26.99
|
