Main Body

Main Body

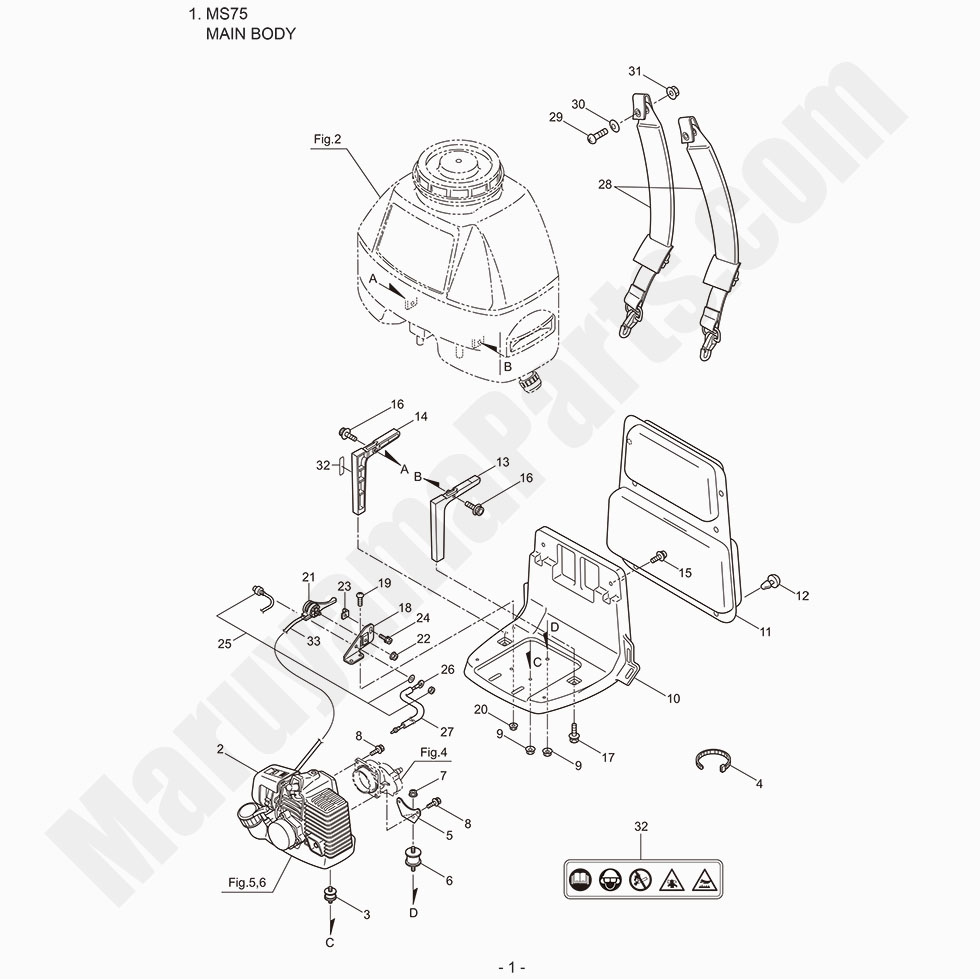

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS75. You have selected the Main Body diagram for the Maruyama MS75 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS75 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS75 parts not shown in this diagram you may select from one of the other MS75 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
3 182114 182114 - PACKING
$8.99
4 104343 104343 - BAND
$2.99
5 125803 125803 - STAY
$2.99
6 101877 101877 - BUFFER
$21.99
8 126178 126178 - CAP SCREW
$2.99
9 127228 127228 - NUT
$2.99
10 128939 128939 - FRAME
$71.99
11 122807 122807 - PAD
$18.99
12 100749 100749 - PAD RETAINER
$2.99
13 118002 118002 - STAY (R)
$16.99
14 118004 118004 - STAY (L)
$16.99
15 127238 127238 - SCREW
$2.99
16 123952 123952 - CAP SCREW
$2.99
17 127233 127233 - BOLT
$2.99
18 113674 113674 - STAY
$15.99
19 081415 081415 - SCREW M5X.8X16
$2.99
20 127226 127226 - FLANGE NUT
$2.99
21 115148 115148 - THROTTLE LEVER
$17.99
23 128940
$31.99
24 817004 817004 - BOLT
$2.99
25 114895 114895 - STOP BUTTON
$23.99
26 114896 114896 - GROUND WIRE
$6.99
27 114901 114901 - VINYL HOSE
$2.99
28 120624 120624 - KNAPSACK BAND ASSY
$30.99
29 127221 127221 - SCREW M6X16
$2.99
30 127224 127224 - WASHER 6X23XT1.6
$2.99
31 127237 127237 - NUT M6
$2.99
32 266959 266959 - LABEL
$6.99
33 121616 121616 - THROTTLE CABLE
$13.99
