Chemical Tank

Chemical Tank

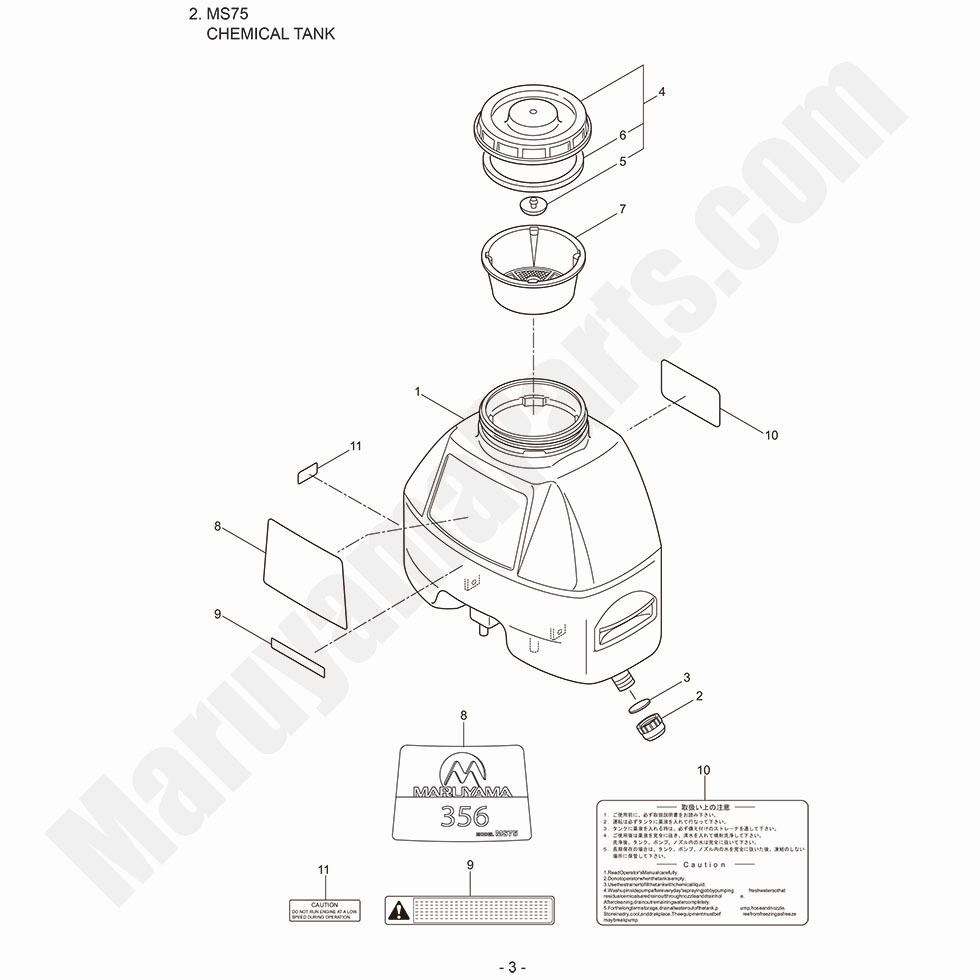

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS75. You have selected the Chemical Tank diagram for the Maruyama MS75 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS75 Chemical Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS75 parts not shown in this diagram you may select from one of the other MS75 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 119030 119030 - CHEMICAL TANK (obsolete)
use part #566117
$96.99
2 106333 106333 - CAP
$90.99
3 029299 029299 - BLIND PACKING
$2.99
4 122796 122796 - CHEMICAL TANK CAP AS
$23.99
5 126668 126668 - MACHINED DISC
$2.99
6 022362 022362 - PACKING, CHEMICAL TA
$16.99
7 106330 106330 - STRAINER
$21.99
8 130926
$28.99
9 120675 120675 - DECAL
$2.99
10 122799 122799 - LABEL
$2.99
11 106067 106067 - LABEL (SPEED-CAUTION
$2.99
