Main Body

Main Body

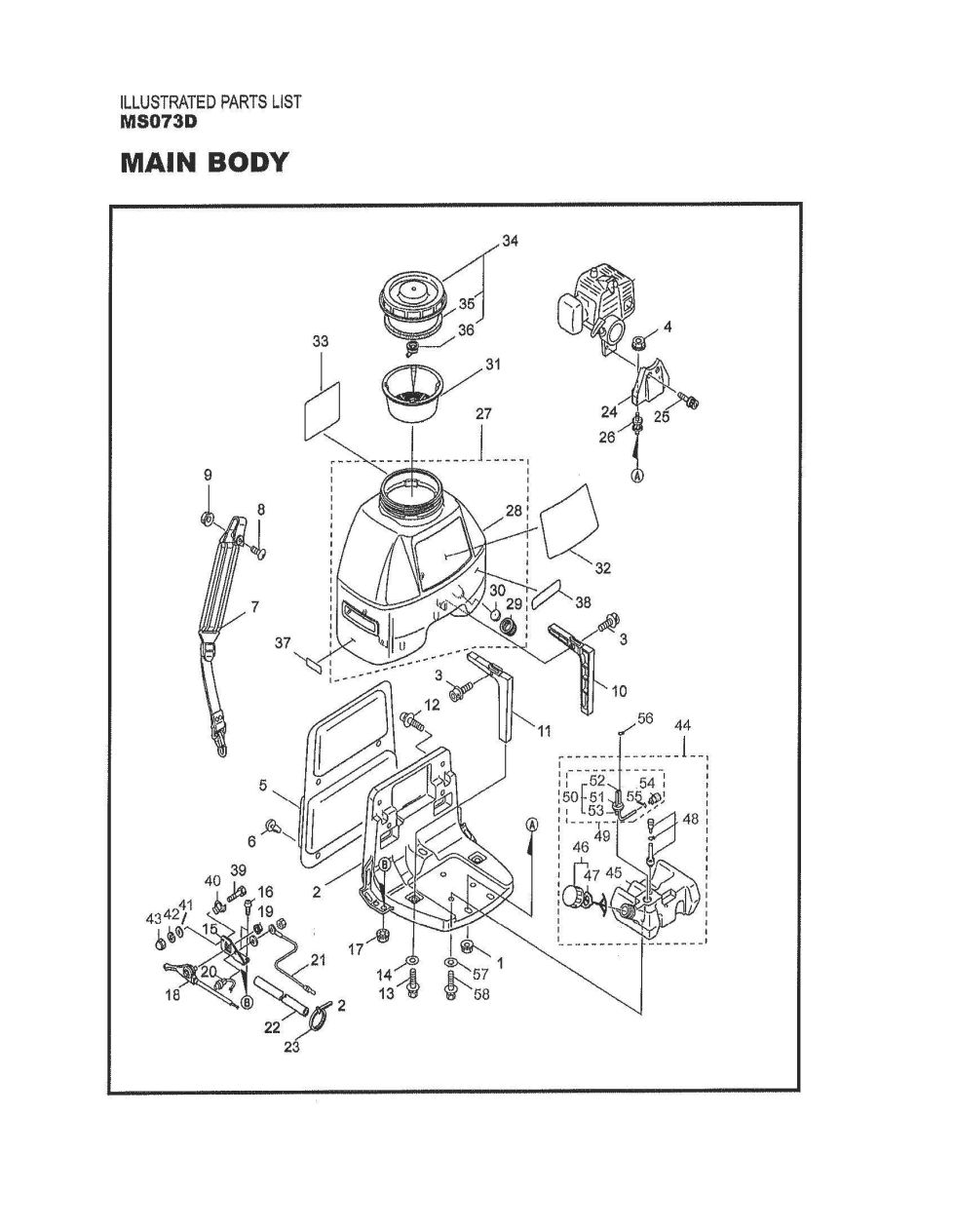

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS073D. You have selected the Main Body diagram for the Maruyama MS073D Engine Driven Sprayers. Below you will find an interactive part diagram for the MS073D Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS073D parts not shown in this diagram you may select from one of the other MS073D part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 109704 109704 - USE: 127228
$2.99
2 118514 118514 - BASE
$98.99
3 123952 123952 - CAP SCREW
$2.99
5 119541 119541 - USE: 131025
$37.99
6 840543 840543 - NLA PAD RETAINER
$2.99
7 120625 120625 - KNAPSACK BAND
$30.99
9 550132 550132 - USE: 127237
$2.99
10 118002 118002 - STAY (R)
$16.99
11 118004 118004 - STAY (L)
$16.99
12 816015 816015 - USE: 127238
$2.99
13 092519 092519 - BOLT
$2.99
14 019056 019056 - WASHER
$2.99
15 113674 113674 - STAY
$15.99
16 081415 081415 - SCREW M5X.8X16
$2.99
17 103549 103549 - NLA FLANGE NUT
$2.99
18 115148 115148 - THROTTLE LEVER
$17.99
20 114895 114895 - STOP BUTTON
$23.99
21 114896 114896 - GROUND WIRE
$6.99
22 114901 114901 - VINYL HOSE
$2.99
23 157753 157753 - BAND
$2.99
24 264529 264529 - BRACKET
$21.99
25 261607 261607 - BOLT M5X16
$2.99
26 100573 100573 - USE: 109246
$11.99
27 119029 119029 - CHEMICAL TANK ASSY
$102.99
28 119030 119030 - CHEMICAL TANK (obsolete)
use part #566117
$96.99
29 118147 118147 - BLIND CAP
$5.99
30 029299 029299 - BLIND PACKING
$2.99
31 106330 106330 - STRAINER
$21.99
32 122113 122113 - LABEL
$20.99
33 119360 119360 - LABEL
$6.99
34 121853 121853 - CHEMICAL TANK CAP AS
$21.99
35 022362 022362 - PACKING, CHEMICAL TA
$16.99
36 022363 022363 - INNER CAP
$8.99
37 106067 106067 - LABEL (SPEED-CAUTION
$2.99
38 266959 266959 - LABEL
$6.99
39 082094 082094 - BOLT
$2.99
40 108571 108571 - WASHER
$2.99
41 012488 012488 - WASHER M6
$2.99
42 012502 012502 - SPRING WASHER
$2.99
43 089750 089750 - NUT
$2.99
44 122112 122112 - FUEL TANK ASSY
$46.99
45 121626 121626 - FUEL TANK
$27.99
46 262726 262726 - FUEL TANK CAP ASSY
$17.99
47 261105 261105 - PACKING
$2.99
48 261696 261696 - BREATHER ASSY
$8.99
49 265952 265952 - FUEL PIPE ASSY
$21.99
50 265867 265867 - FUEL PIPE ASSY
$17.99
51 265869 265869 - GROMMET LE230
$10.99
52 262649 262649 - FUEL PIPE
$2.99
53 263038 263038 - RETURN PIPE
$2.99
55 261117 261117 - CLIP
$2.99
57 015479 015479 - WASHER
$2.99
58 081414 081414 - SCREW
$2.99
