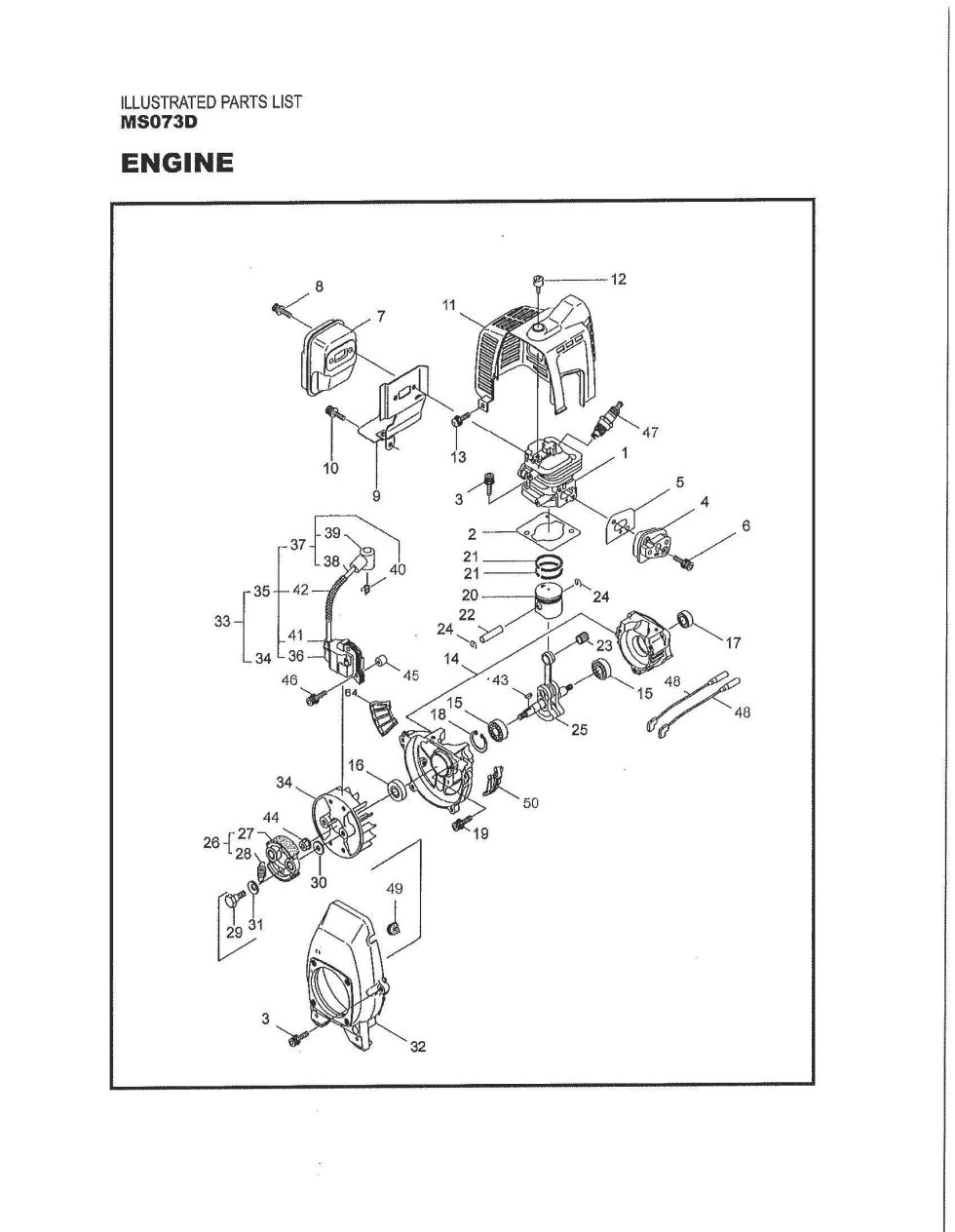

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS073D. You have selected the Engine diagram for the Maruyama MS073D Engine Driven Sprayers. Below you will find an interactive part diagram for the MS073D Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS073D parts not shown in this diagram you may select from one of the other MS073D part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 266249 266249 - CYLINDER
$114.99
2 267178 267178 - NLA GASKET (obsolete)
use part #283420
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 265802 265802 - INSULATOR
$27.99
5 267049 267049 - GASKET
$2.99
6 265924 265924 - CAP SCREW 5X25
$2.99
7 267466 267466 - MUFFLER
$23.99
8 266264 266264 - CAP SCREW
$2.99
9 267189 267189 - GASKET
$16.99
10 261607 261607 - BOLT M5X16
$2.99
11 267550 267550 - TOP COVER
$21.99
12 265742 265742 - USE: 286399
$5.99
13 267177 267177 - SCREW
$2.99
14 267063 267063 - CRANKCASE
$49.99
15 261491 261491 - BEARING
$21.99
16 262198 262198 - NLA OIL SEAL
$5.99
17 261386 261386 - OIL SEAL
$2.99
18 055185 055185 - SNAP RING
$2.99
19 261612 261612 - BOLT
$2.99
20 266467 266467 - USE: 281300
$31.99
21 264891 264891 - PISTON RING
$14.99
22 261036 261036 - PISTON PIN
$16.99
23 263957 263957 - BEARING NEEDLE
$21.99
24 261576 261576 - CIRCLIP
$2.99
25 267193 267193 - CRANKSHAFT COMP
$74.99
26 268439 268439 - CLUTCH ASSY
$37.99
27 264888 264888 - CLUTCH SHOE
$22.99
28 264889 264889 - SPRING
$5.99
29 264505 264505 - CLUTCH BOLT
$5.99
30 261189 261189 - WASHER
$2.99
31 261777 261777 - WAVE WASHER
$2.99
32 268801 268801 - FAN COVER
$29.99
33 267172 267172 - MAGNETO ASSY
$103.99
34 268954 268954 - NLA ROTOR
$49.99
35 267173 267173 - USE: 267400
$62.99
36 267174 267174 - USE: 267401
$69.99
37 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
38 267404 267404 - SPARK PLUG WIRE
$2.99
39 261074 261074 - PLUG CAP
$13.99
40 261075 261075 - CONNECTOR
$2.99
41 261072 261072 - CAP
$2.99
42 267402 267402 - INSULATOR
$2.99
43 261076 261076 - WOODRUFF KEY
$2.99
45 268380 268380 - USE: 280381
$2.99
46 261256 261256 - BOLT M4X25
$2.99
47 262483 262483 - SPARK PLUG(NGK BPMR6
$18.99
48 267492 267492 - LEAD
$7.99
49 261202 261202 - GROMMET
$2.99
50 264582 264582 - SCREEN
$6.99
