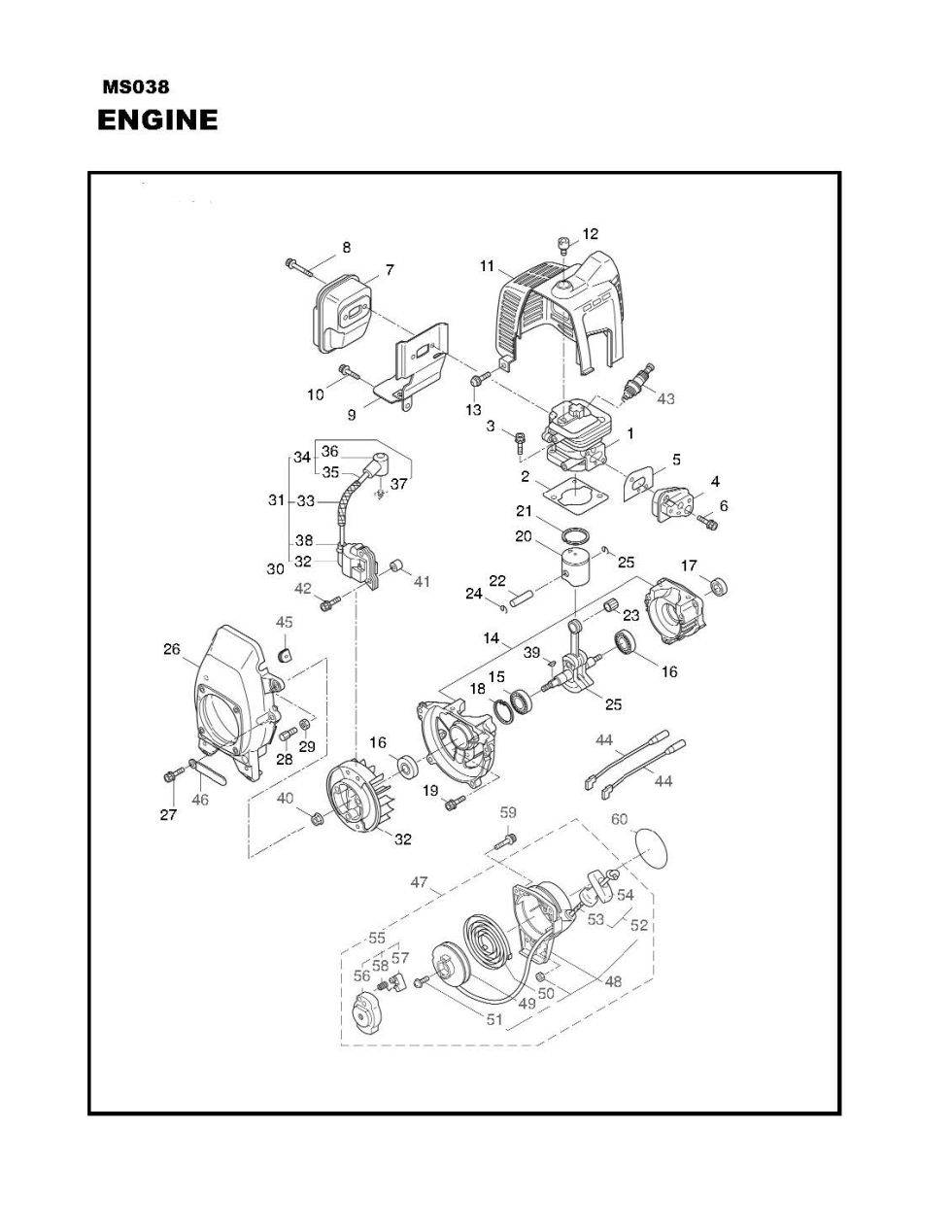

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS038. You have selected the Engine diagram for the Maruyama MS038 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS038 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS038 parts not shown in this diagram you may select from one of the other MS038 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 268608 268608 - CYLINDER
$136.99
2 267178 267178 - NLA GASKET (obsolete)
use part #283420
$2.99
3 267290 267290 - CAP SCREW
$2.99
4 265802 265802 - INSULATOR
$27.99
5 267049 267049 - GASKET
$2.99
6 265924 265924 - CAP SCREW 5X25
$2.99
7 267466 267466 - MUFFLER
$23.99
8 266264 266264 - CAP SCREW
$2.99
9 267189 267189 - GASKET
$16.99
10 261607 261607 - BOLT M5X16
$2.99
11 267060 267060 - TOP COVER ASSY
$21.99
12 264022 264022 - USE: 286349 (obsolete)
use part #286349
$2.99
13 267177 267177 - SCREW
$2.99
14 267063 267063 - CRANKCASE
$49.99
15 280488 280488 - USE: 261491
$13.99
16 261492 261492 - OIL SEAL
$2.99
17 261386 261386 - OIL SEAL
$2.99
18 055185 055185 - SNAP RING
$2.99
19 261612 261612 - BOLT
$2.99
20 261032 261032 - PISTON
$40.99
21 261158 261158 - PISTON RING
$11.99
22 261036 261036 - PISTON PIN
$16.99
23 281288 281288 - BEARING
$13.99
24 261576 261576 - CIRCLIP
$2.99
25 267193 267193 - CRANKSHAFT COMP
$74.99
26 267080 267080 - FAN COVER - RED
$34.99
27 261250 261250 - BOLT M5X20
$2.99
28 264736 264736 - ADAPTER
$10.99
29 261878 261878 - NUT
$2.99
30 269324 269324 - ROTOR/FAN
$40.99
31 267400 267400 - IGNITION COIL ASSY
$87.99
32 267401 267401 - IGNITION COIL
$58.99
33 269418 269418 - SPARK PLUG WIRE INSU
$2.99
34 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
35 267404 267404 - SPARK PLUG WIRE
$2.99
36 261074 261074 - PLUG CAP
$13.99
37 261075 261075 - CONNECTOR
$2.99
38 261072 261072 - CAP
$2.99
39 261076 261076 - WOODRUFF KEY
$2.99
40 261417 261417 - ROTOR NUT
$8.99
41 268380 268380 - USE: 280381
$2.99
42 261256 261256 - BOLT M4X25
$2.99
43 261200 261200 - SPARK PLUG
$20.99
44 267492 267492 - LEAD
$7.99
45 261202 261202 - GROMMET
$2.99
46 264588 264588 - CLAMP
$2.99
47 268488 268488 - RECOIL STARTER ASSY.
$28.99
48 264489 264489 - RECOIL ASSY.
$38.99
49 261621 261621 - REEL
$14.99
50 261622 261622 - SPIRAL SPRING
$19.99
51 262922 262922 - SCREW
$2.99
52 261626 261626 - ROPE ASSY
$21.99
53 261627 261627 - STARTER ROPE
$8.99
54 261628 261628 - STARTER GRIP
$10.99
55 268489 268489 - STARTER PULLEY ASSY.
$17.99
56 268490 268490 - STARTER PULLEY
$22.99
57 263473 263473 - PAWL
$10.99
58 263474 263474 - RETURN SPRING
$2.99
59 265726 265726 - SCREW
$2.99
