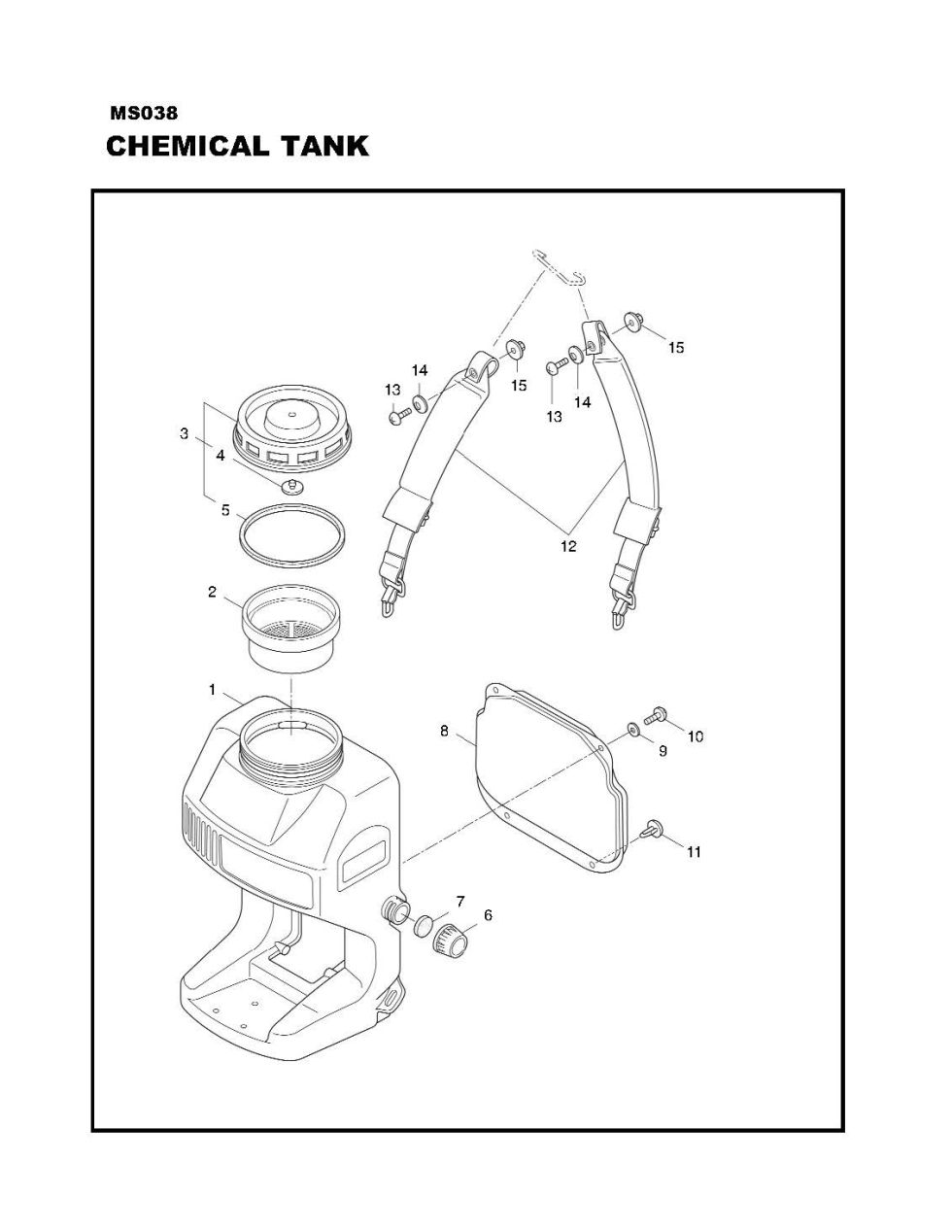

Chemical Tank

Chemical Tank

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS038. You have selected the Chemical Tank diagram for the Maruyama MS038 Engine Driven Sprayers. Below you will find an interactive part diagram for the MS038 Chemical Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS038 parts not shown in this diagram you may select from one of the other MS038 part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 121052 121052 - CHEMICAL TANK
$140.99
2 106330 106330 - STRAINER
$21.99
3 122796 122796 - CHEMICAL TANK CAP AS
$23.99
4 123369 123369 - BEN
$2.99
5 022362 022362 - PACKING, CHEMICAL TA
$16.99
6 106333 106333 - CAP
$90.99
7 029299 029299 - BLIND PACKING
$2.99
8 106449 106449 - CUSHION PAD
$20.99
9 106352 106352 - PACKING
$35.99
11 100749 100749 - PAD RETAINER
$2.99
12 123105 123105 - KNAPSACK BAND
$28.99
14 100603 100603 - USE: 127224
$2.99
15 550132 550132 - USE: 127237
$2.99
