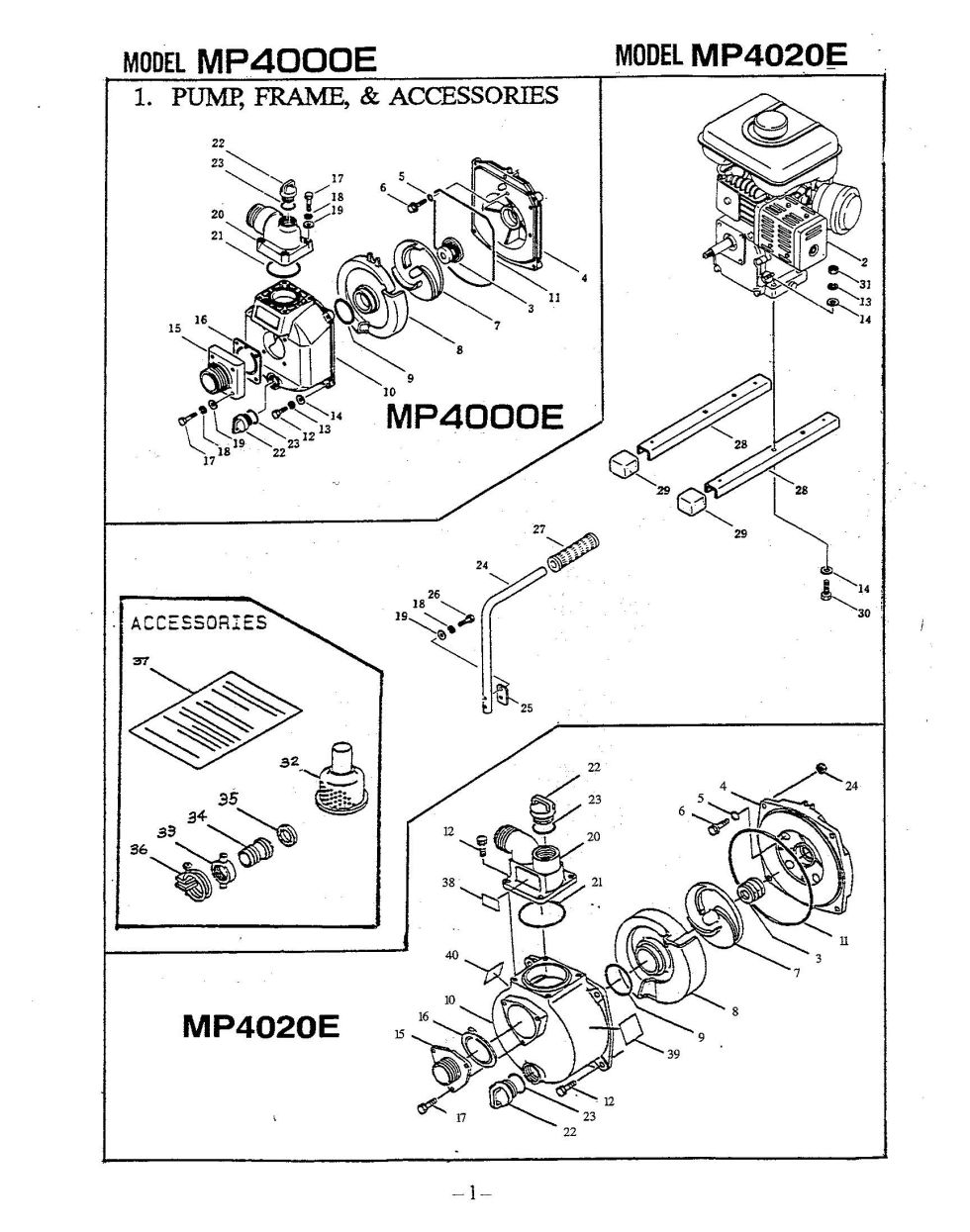

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP4000E, MP4020E. You have selected the Pump, Frame, and Accessories diagram for the Maruyama MP4000E, MP4020E Water Pumps. Below you will find an interactive part diagram for the MP4000E, MP4020E Pump, Frame, and Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP4000E, MP4020E parts not shown in this diagram you may select from one of the other MP4000E, MP4020E part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 (MP4000E) | 240072 | 240072 - MECHANICAL SEAL |
$46.99
|
|
| 4 (MP4000E) | 240179 | 240179 - NLA CASING COVER() |
$92.99
|
|
| 4 (MP4020E) | 240503 | 240503 - USE: 240480 |
$49.99
|
|
| 5 (MP4000E) | 014190 | 014190 - O-RING |
$2.99
|
|
| 6 (MP4000E) | 089721 | 089721 - BOLT |
$2.99
|
|
| 7 (MP4000E) | 240180 | 240180 - NLA IMPELLER |
$91.99
|
|
| 7 (MP4020E) | 240592 | 240592 - IMPELLER |
$55.99
|
|
| 8 (MP4000E) | 240051 | 240051 - NLA SCROLL |
$128.99
|
|
| 8 (MP4020E) | 240593 | 240593 - NLA SCROLL |
$42.99
|
|
| 9 (MP4020E) | 012392 | 012392 - O-RING |
$2.99
|
|
| 10 (MP4000E) | 240038 | 240038 - NLA CASING |
$103.99
|
|
| 10 (MP4020E) | 240583 | 240583 - NLA CASING |
$69.99
|
|
| 11 (MP4020E) | 016601 | 016601 - O-RING |
$14.99
|
|
| 12 (MP4000E) | 080129 | 080129 - BOLT |
$2.99
|
|
| 12 (MP4020E) | 092530 | 092530 - SCREW, HEX M8X25 |
$2.99
|
|
| 13 (MP4000E) | 015845 | 015845 - SPRING WASHER |
$2.99
|
|
| 14 (MP4000E) | 012489 | 012489 - WASHER |
$2.99
|
|
| 15 (MP4000E) | 240052 | 240052 - NLA INLET PORT |
$57.99
|
|
| 16 (MP4000E) | 240009 | 240009 - NLA CHECK VALVE |
$22.99
|
|
| 16 (MP4020E) | 240484 | 240484 - CHECK VALVE |
$22.99
|
|
| 17 (MP4020E) | 092521 | 092521 - HEX, HEAD SCREW |
$2.99
|
|
| 18 (MP4000E) | 012502 | 012502 - SPRING WASHER |
$2.99
|
|
| 19 (MP4000E) | 012488 | 012488 - WASHER M6 |
$2.99
|
|
| 20 (MP4000E) | 240054 | 240054 - NLA DISCHARGE PORT |
$51.99
|
|
| 20 (MP4020E) | 240595 | 240595 - DISCHARGE PORT |
$58.99
|
|
| 21 (MP4000E) | 015856 | 015856 - O-RING (G55) |
$2.99
|
|
| 21 (MP4020E) | 012393 | 012393 - O-RING |
$2.99
|
|
| 22 (MP4000E) | 240012 | 240012 - BLIND PLUG |
$2.99
|
|
| 22 (MP4020E) | 240082 | 240082 - BLIND PLUG |
$6.99
|
|
| 23 (MP4000E) | 020285 | 020285 - O-RING |
$2.99
|
|
| 23 (MP4020E) | 018690 | 018690 - O-RING |
$2.99
|
|
| 24 | 240069 | 240069 - HANDLE |
$53.99
|
|
| 25 | 240040 | 240040 - NLA STAY |
$9.99
|
|
| 26 (MP4020E) | 092556 | 092556 - BOLT(M6X30) |
$2.99
|
|
| 28 | 240181 | 240181 - FRAME |
$32.99
|
|
| 29 | 240044 | 240044 - DAMPER |
$8.99
|
|
| 30 (MP4000E) | 080138 | 080138 - BOLT |
$2.99
|
|
| 30 (MP4020E) | 080133 | 080133 - BOLT M8X35X22 |
$2.99
|
|
| 32 (MP4000E) | 240059 | 240059 - STRAINER ASSY |
$53.99
|
|
| 32 (MP4020E) | 240512 | 240512 - STRAINER |
$22.99
|
|
| 33 | 240064 | 240064 - HOSE FEMALE NUT |
$8.99
|
|
| 34 | 240065 | 240065 - HOSE FEMALE COUPLING |
$5.99
|
|
| 35 | 240066 | 240066 - PACKING |
$7.99
|
|
| 36 | 240067 | 240067 - HOSE BAND |
$5.99
|
|
| 37 (MP4000E) | 240057 | 240057 - NLA INSTRUCT MANU |
$10.99
|
|
| 38 | 240368 | 240368 - LABEL |
$2.99
|
|
| 39 | 240019 | 240019 - LABEL |
$2.99
|
|
| 40 | 240517 | 240517 - LABEL |
$2.99
|
