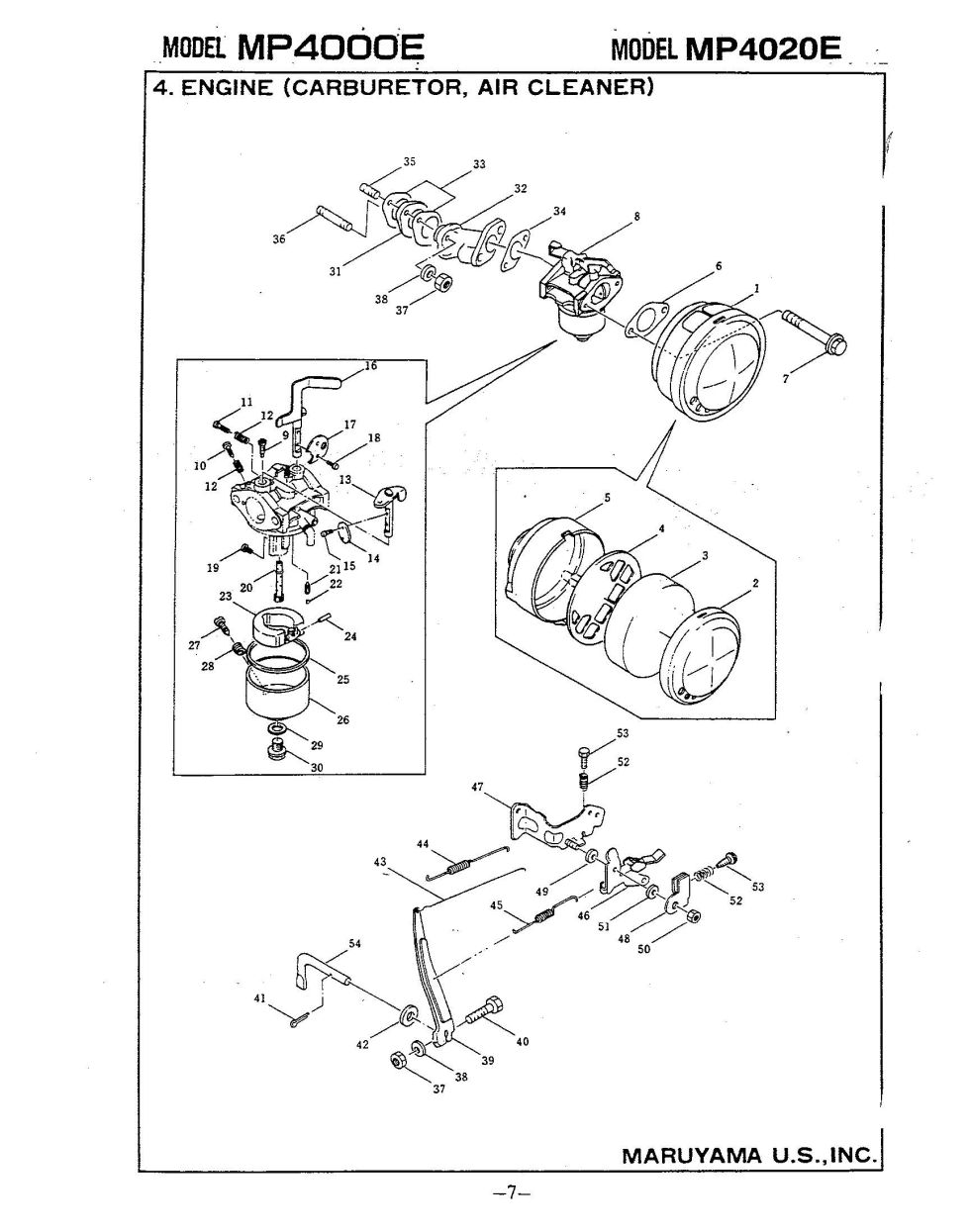

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP4000E, MP4020E. You have selected the Engine (Carburetor, Air Cleaner) diagram for the Maruyama MP4000E, MP4020E Water Pumps. Below you will find an interactive part diagram for the MP4000E, MP4020E Engine (Carburetor, Air Cleaner). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP4000E, MP4020E parts not shown in this diagram you may select from one of the other MP4000E, MP4020E part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
1 996289 996289 - AIR CLEANER ASSY
$69.99
2 996290 996290 - NLA AIR CLEANER COVE
$18.99
3 996291 996291 - ELEMENT
$28.99
4 996292 996292 - AIR CLEANER PLATE
$12.99
5 996293 996293 - AIR CLEANER CASE
$129.99
6 996294 996294 - GASKET
$7.99
7 996295 996295 - NLA BOLT
$2.99
8 996296 996296 - CARBURETOR ASSY
$116.99
9 996297 996297 - PILOT JET #35
$21.99
10 996298 996298 - PILOT SCREW
$19.99
11 944522 944522 - SCREW
$2.99
12 944928 944928 - SPRING
$11.99
13 996299 996299 - THROTTLE SHAFT
$27.99
14 996300 996300 - THROTTLE VALVE #130
$18.99
15 944931 944931 - SCREW
$6.99
16 996301 996301 - CHOKE SHAFT
$47.99
17 996302 996302 - CHOKE VALVE
$11.99
18 944934 944934 - NLA SCREW
$5.99
19 996303 996303 - MAIN JET
$23.99
20 996304 996304 - MAIN NOZZLE #2A
$36.99
21 944937 944937 - NEEDLE VALVE
$52.99
22 996305 996305 - CLIP
$10.99
23 944939 944939 - FLOAT
$31.99
24 944940 944940 - USE: 583980
$6.99
25 944941 944941 - GASKET
$19.99
26 996306 996306 - FLOAT CHAMBER ASSY
$57.99
27 996307 996307 - DRAIN SCREW
$10.99
28 944944 944944 - NLA SPRING, CLUTCH S
$8.99
29 944945 944945 - NLA GASKET
$2.99
30 944946 944946 - NLA BOLT
$5.99
31 996308 996308 - INSULATOR
$11.99
32 996309 996309 - INLET PIPE
$21.99
33 996310 996310 - GASKET
$2.99
34 996311 996311 - GASKET
$2.99
36 996313 996313 - STUD
$2.99
37 943863 943863 - NLA NUT
$2.99
38 944442 944442 - WASHER
$2.99
39 996314 996314 - GOVERNOR ARM
$15.99
40 996315 996315 - BOLT
$2.99
41 944955 944955 - NLA SNAP PIN
$2.99
42 071120 071120 - WASHER
$2.99
43 996316 996316 - GOVERNOR LINK
$10.99
44 996317 996317 - LINK SPRING
$10.99
45 996318 996318 - GOVERNOR SPRING
$13.99
46 996319 996319 - CONTROL LEVER
$16.99
47 996320 996320 - BRACKET
$20.99
48 996321 996321 - BRACKET
$10.99
49 944961 944961 - WASHER
$8.99
50 944965 944965 - NLA NUT
$2.99
51 944963 944963 - NLA SPRING
$2.99
53 996323 996323 - SCREW
$2.99
54 996324 996324 - GOVERNOR TIP
$13.99
