Driveshaft Assembly

Driveshaft Assembly

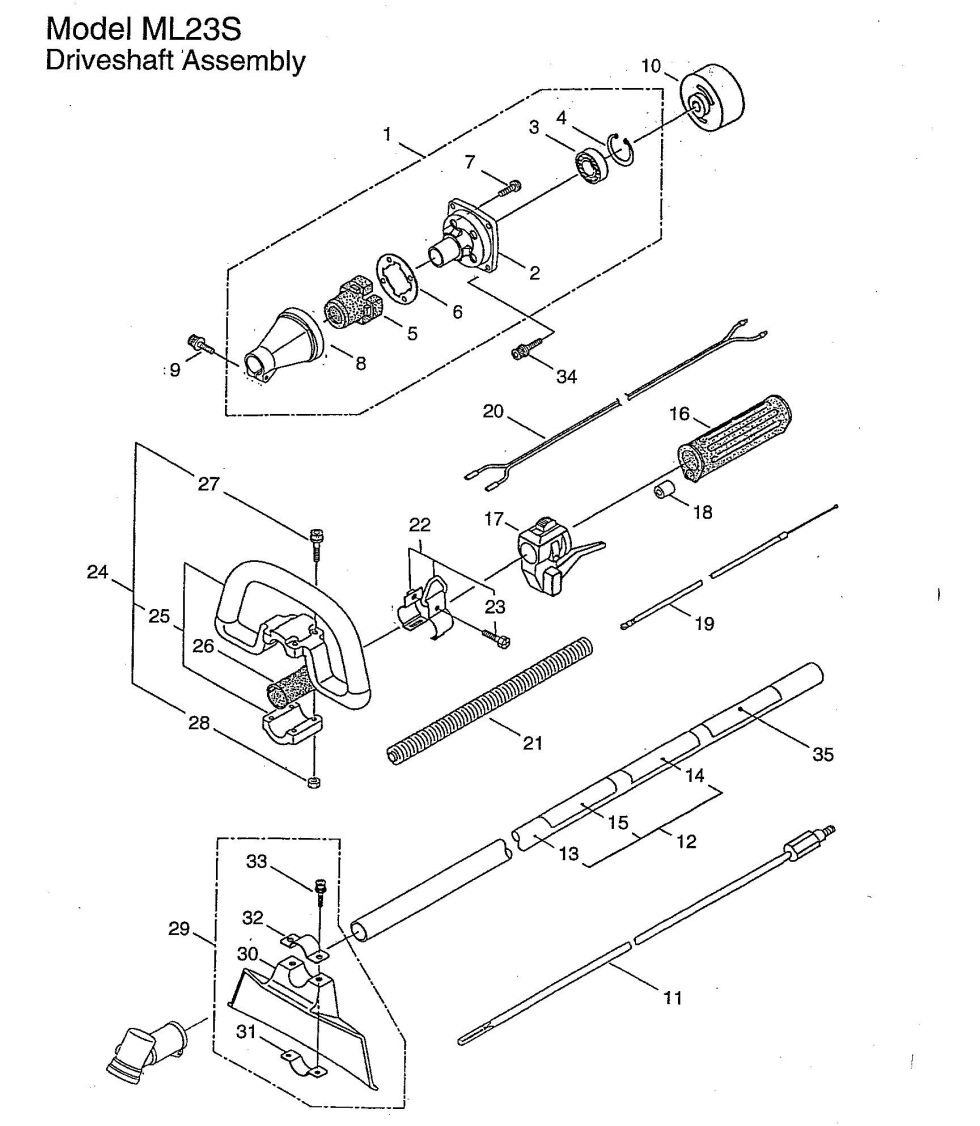

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ML23S. You have selected the Driveshaft Assembly diagram for the Maruyama ML23S M-Line Equipment. Below you will find an interactive part diagram for the ML23S Driveshaft Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ML23S parts not shown in this diagram you may select from one of the other ML23S part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 220061 220061 - CLUTCH CASE ASSY
$110.99
2 220062 220062 - BEARING CASE
$38.99
3 261743 261743 - USE: 102680
$21.99
4 054676 054676 - SNAP RING
$2.99
5 214162 214162 - BUFFER
$28.99
6 214163 214163 - WASHER
$11.99
7 092033 092033 - SCREW(M5X15)
$2.99
8 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
9 261246 261246 - CAP SCREW M5X25
$2.99
10 054677 054677 - CLUTCH DRUM
$32.99
11 220064 220064 - NLA DRIVESHAFT ASSY
$42.99
12 220078 220078 - DRIVESHAFT HOUSING
$114.99
13 218711 218711 - DRIVESHAFT HOUSING
$74.99
14 215534 215534 - DECAL
$2.99
15 215535 215535 - LABEL
$13.99
16 215532 215532 - SHAFT GRIP
$24.99
17 219086 219086 - NLA THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
18 214083 214083 - OUTER GUIDE
$2.99
19 213444 213444 - THROTTLE CABLE
$13.99
20 213445 213445 - NLA LEAD WIRE
$13.99
21 213548 213548 - PLASTIC TUBE
$2.99
22 054691 054691 - HANGING BRACKET ASSY
$13.99
23 089738 089738 - BOLT
$2.99
24 215601 215601 - LOOP HANDLE ASSY
$27.99
25 214982 214982 - HANDLE ASSY
$28.99
26 213171 213171 - PACKING
$8.99
27 215608 215608 - CAP SCREW
$2.99
28 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
30 220098 220098 - NLA SAFETY COVER - B
$18.99
31 212994 212994 - THREADED BRACKET
$2.99
32 212995 212995 - NLA BRACKET (NO SUPE
$2.99
34 261250 261250 - BOLT M5X20
$2.99
35 220068 220068 - NLA LABEL
$22.99
