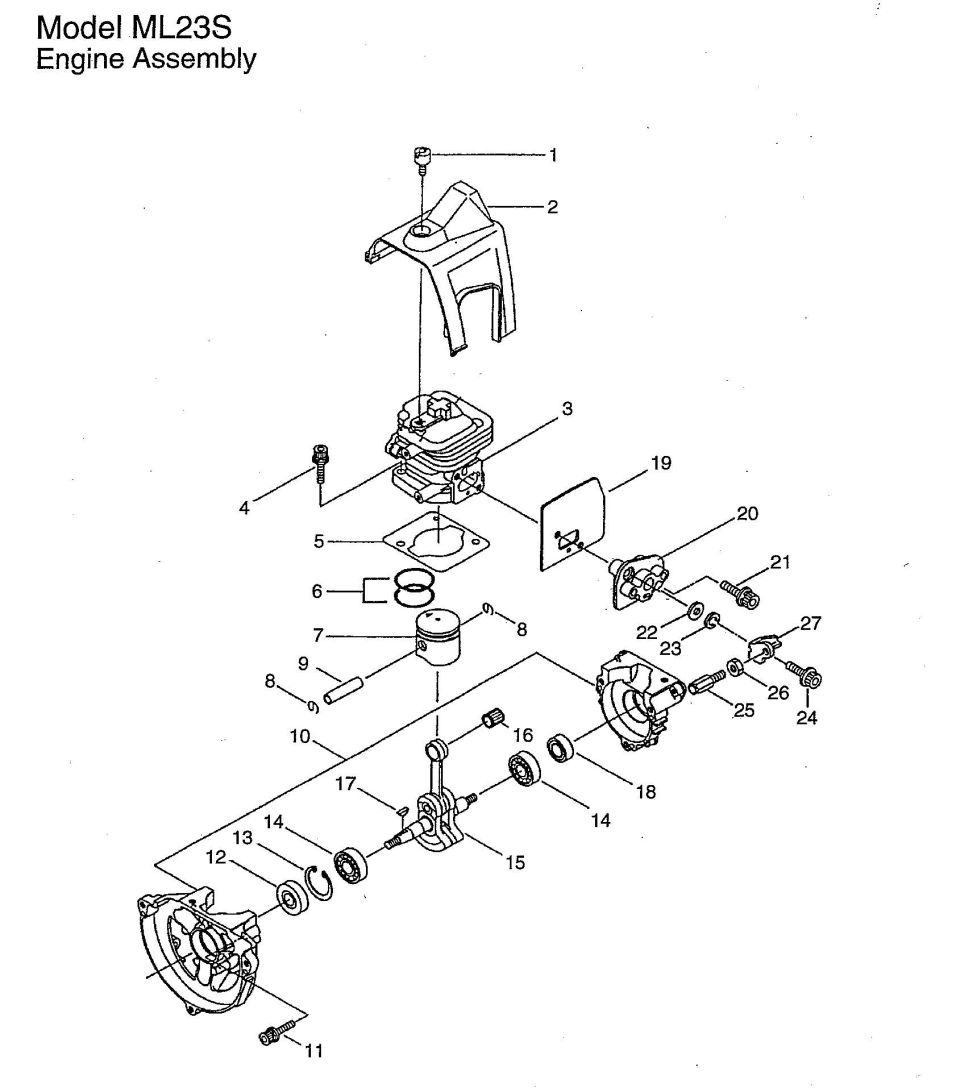

 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 264022 |
264022 - USE: 286349 (obsolete) use part #286349 |
$2.99
|
|
| 2 | 264733 | 264733 - NLA CYLINDER COVER ( |
$22.99
|
|
| 3 | 263768 | 263768 - CYLINDER |
$154.99
|
|
| 4 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 5 | 263770 | 263770 - GASKET |
$2.99
|
|
| 6 | 264891 | 264891 - PISTON RING |
$14.99
|
|
| 7 | 264719 | 264719 - USE: 266467 |
$31.99
|
|
| 8 | 261576 | 261576 - CIRCLIP |
$2.99
|
|
| 9 | 261036 | 261036 - PISTON PIN |
$16.99
|
|
| 10 | 264312 | 264312 - CRANKCASE |
$81.99
|
|
| 11 | 261612 | 261612 - BOLT |
$2.99
|
|
| 12 | 262712 | 262712 - NLA OIL SEAL |
$2.99
|
|
| 13 | 054676 | 054676 - SNAP RING |
$2.99
|
|
| 14 | 261181 | 261181 - BEARING |
$16.99
|
|
| 15 | 263719 | 263719 - CRANKSHAFT/ ROD ASSY |
$153.99
|
|
| 16 | 263957 | 263957 - BEARING NEEDLE |
$21.99
|
|
| 17 | 261076 | 261076 - WOODRUFF KEY |
$2.99
|
|
| 18 | 262713 | 262713 - NLA OIL SEAL |
$2.99
|
|
| 19 | 263774 | 263774 - GASKET |
$2.99
|
|
| 20 | 263772 | 263772 - INSULATOR |
$19.99
|
|
| 21 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 22 | 012487 | 012487 - WASHER |
$2.99
|
|
| 23 | 089901 | 089901 - WASHER |
$2.99
|
|
| 24 | 215351 | 215351 - CAP SCREW(M5X25) |
$2.99
|
|
| 25 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 26 | 261878 | 261878 - NUT |
$2.99
|
|
| 27 | 264634 | 264634 - STAY |
$7.99
|
