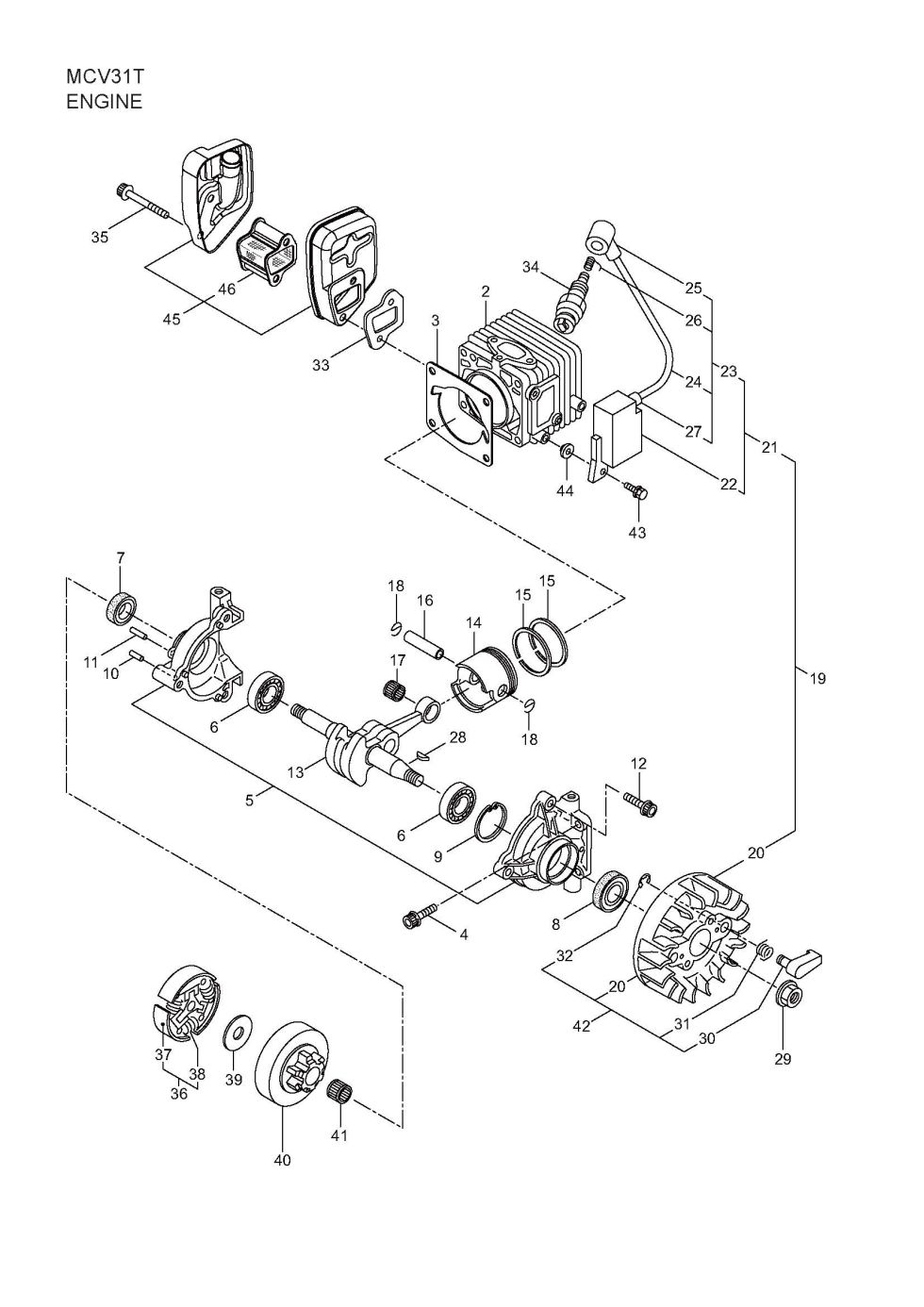

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV31T. You have selected the Engine diagram for the Maruyama MCV31T Chainsaws. Below you will find an interactive part diagram for the MCV31T Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV31T parts not shown in this diagram you may select from one of the other MCV31T part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
2 288931 288931 - CYLINDER
$175.99
3 289341 289341 - GASKET
$15.99
4 261250 261250 - BOLT M5X20
$2.99
5 288846 288846 - CRANKCASE
$35.99
6 285521 285521 - BEARING
$19.99
7 285626 285626 - OIL SEAL
$7.99
8 261492 261492 - OIL SEAL
$2.99
9 055185 055185 - SNAP RING
$2.99
10 285560 285560 - PIN
$2.99
11 285529 285529 - PIN
$2.99
12 261232 261232 - CAP SCREW
$2.99
13 285599 285599 - CRANKSHAFT COMP.
$140.99
14 288399 288399 - PISTON
$38.99
15 285590 285590 - PISTON RING
$11.99
16 285591 285591 - PISTON PIN
$6.99
17 261037 261037 - NEEDLE BEARING
$15.99
18 261576 261576 - CIRCLIP
$2.99
19 289489 289489 - MAGNETO ASS'Y
$167.99
20 285555 285555 - MAGNETO ROTOR
$51.99
21 289548 289548 - IGNITION COIL ASS'Y
$75.99
22 289650 289650 - COIL
$69.99
23 286096 286096 - CORD ASS'Y
$26.99
24 286097 286097 - CORD
$2.99
25 261074 261074 - PLUG CAP
$13.99
26 261075 261075 - CONNECTOR
$2.99
27 261072 261072 - CAP
$2.99
28 261076 261076 - WOODRUFF KEY
$2.99
29 261417 261417 - ROTOR NUT
$8.99
30 285553 285553 - STARTER PAWL
$2.99
31 285552 285552 - SPRING
$13.99
32 020299 020299 - E-SHAPED SNAP RING
$2.99
33 285472 285472 - GASKET
$2.99
35 264223 264223 - CAP SCREW(M5X40)
$2.99
36 285535 285535 - CLUTCH ASS'Y
$34.99
37 285655 285655 - CLUTCH SHOE
$22.99
38 285656 285656 - SPRING
$15.99
39 285537 285537 - WASHER
$2.99
40 286238 286238 - CLUTCH DRUM
$44.99
41 285624 285624 - NEEDLE BEARING
$26.99
42 288365 288365 - ROTOR ASS'Y
$67.99
43 281211 281211 - CAP SCREW
$2.99
44 289481 289481 - SPACER
$2.99
45 289491 289491 - MUFFLER ASS'Y
$24.99
46 289493 289493 - PLATE COMP.
$15.99
