 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|

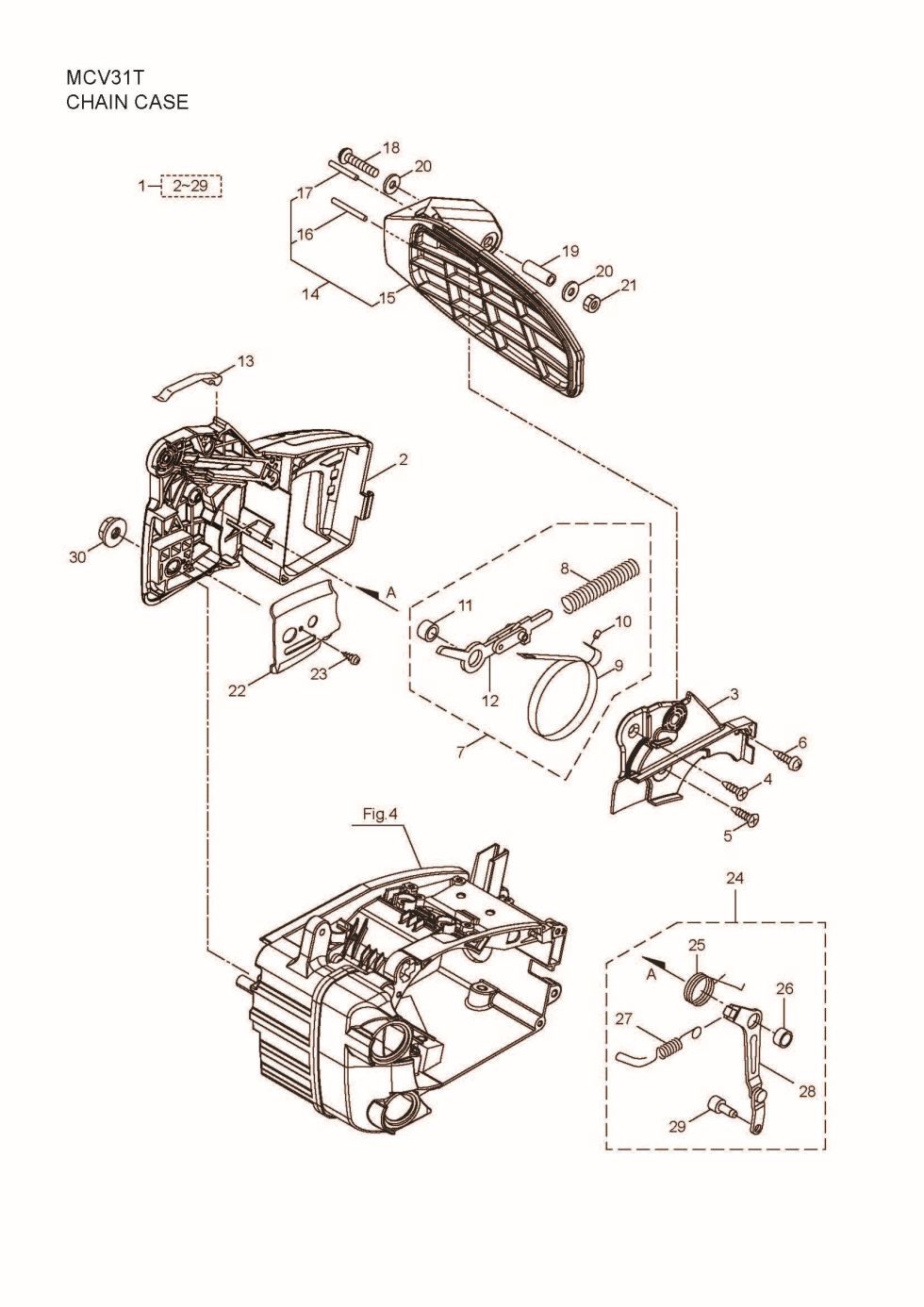

| 1 | 289507 | 289507 - CHAIN CASE ASS'Y |
$166.99
|
|
| 2 | 289508 | 289508 - CHAIN CASE |
$22.99
|
|
| 3 | 285622 | 285622 - SIDE COVER |
$7.99
|
|
| 4 | 285637 | 285637 - SCREW |
$2.99
|
|
| 5 | 285639 | 285639 - SCREW |
$2.99
|
|
| 6 | 285644 | 285644 - SCREW |
$2.99
|
|
| 7 | 286823 | 286823 - BRAKE ASS'Y |
$46.99
|
|
| 8 | 285605 | 285605 - SPRING |
$7.99
|
|
| 9 | 285572 | 285572 - BAND |
$32.99
|
|
| 10 | 285560 | 285560 - PIN |
$2.99
|
|
| 11 | 285606 | 285606 - COLLAR |
$6.99
|
|
| 12 | 285570 | 285570 - LEVER COMP. |
$22.99
|
|
| 13 | 285595 | 285595 - RETURN SPRING |
$11.99
|
|
| 14 | 286057 | 286057 - FRONT GUARD COMP. |
$32.99
|
|
| 15 | 285578 | 285578 - FRONT GUARD |
$29.99
|
|
| 16 | 285563 | 285563 - PIN |
$2.99
|
|
| 17 | 286048 | 286048 - PIN |
$2.99
|
|
| 18 | 285638 | 285638 - SCREW |
$2.99
|
|
| 19 | 285607 | 285607 - COLLAR |
$8.99
|
|
| 20 | 286045 | 286045 - WASHER |
$2.99
|
|
| 21 | 285640 | 285640 - NUT |
$2.99
|
|
| 22 | 285532 | 285532 - GUIDE PLATE R |
$7.99
|
|
| 23 | 285627 | 285627 - SCREW |
$2.99
|
|
| 24 | 286034 | 286034 - TENSIONER ASS'Y |
$22.99
|
|
| 25 | 285596 | 285596 - SPRING |
$2.99
|
|
| 26 | 285608 | 285608 - COLLAR |
$2.99
|
|
| 27 | 289726 | 289726 - SPRING |
$7.99
|
|
| 28 | 285609 | 285609 - LINK COMP. |
$13.99
|
|
| 29 | 285614 | 285614 - BOSS |
$2.99
|
|
| 30 | 283041 | 283041 - NUT M8 |
$2.99
|
