Main Body

Main Body

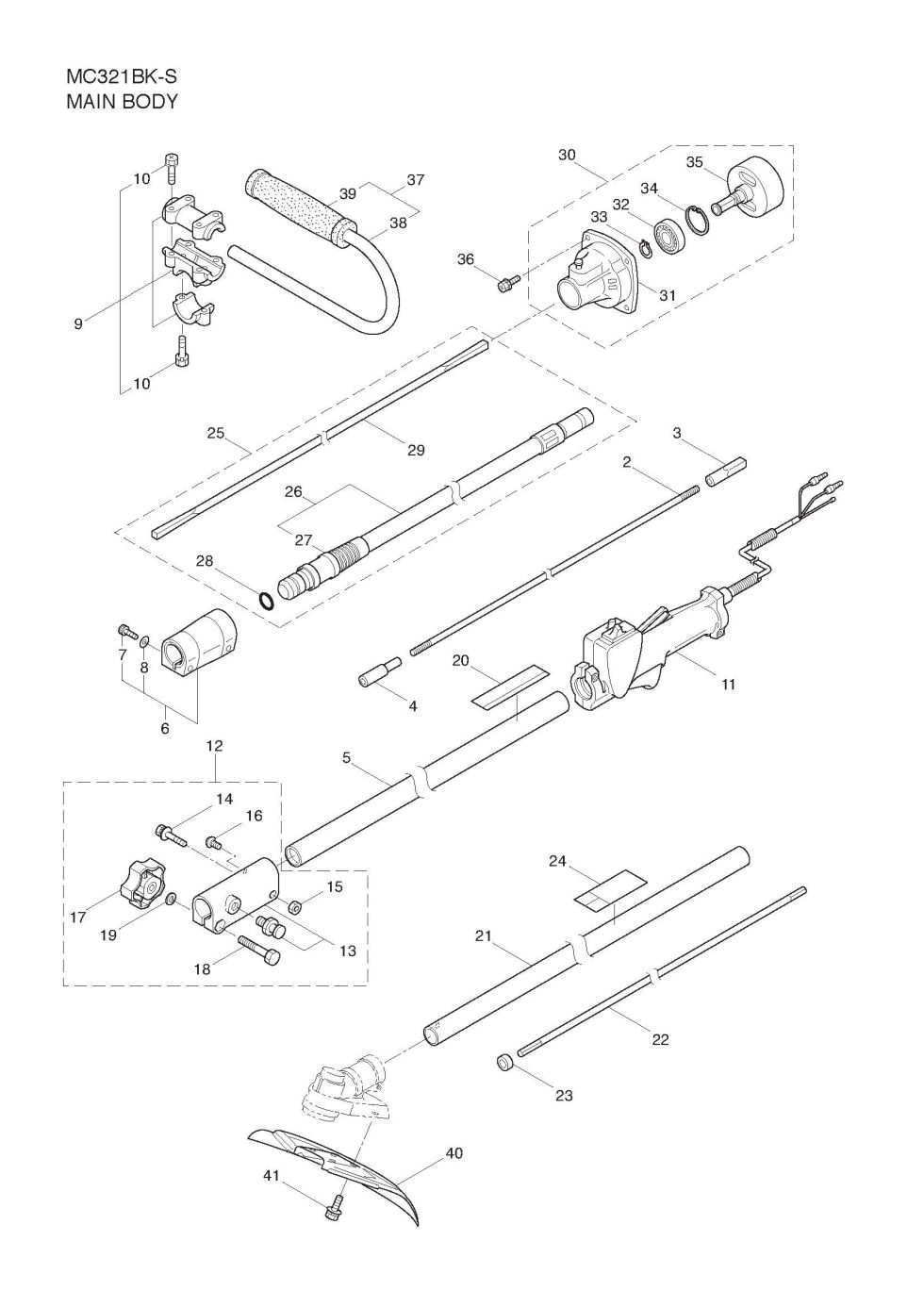

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC321BK-S. You have selected the Main Body diagram for the Maruyama MC321BK-S Multicutters. Below you will find an interactive part diagram for the MC321BK-S Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC321BK-S parts not shown in this diagram you may select from one of the other MC321BK-S part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 221978 221978 - DRIVESHAFT
$24.99
3 216924 216924 - ADAPTER
$14.99
4 215276 215276 - LOWER ADAPTER
$42.99
5 221979 221979 - DRIVESHAFT TUBE
$41.99
6 214365 214365 - JOINT PIPE ASSY
$32.99
7 087786 087786 - CAP SCREW
$2.99
8 012487 012487 - WASHER
$2.99
10 092561 092561 - BOLT
$2.99
11 223647 223647 - THROTTLE TRIGGER
$58.99
12 219489 219489 - SHAFT COUPLER ASSY
$38.99
13 219490 219490 - SHAFT COUPLER ASSY
$33.99
14 215351 215351 - CAP SCREW(M5X25)
$2.99
15 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
16 219087 219087 - CAP SCREW
$2.99
17 219088 219088 - CLAMPING KNOB
$27.99
18 089976 089976 - BOLT
$2.99
19 550131 550131 - WASHER
$2.99
20 220202 220202 - CLUTCH CASE ASSY
$73.99
21 220218 220218 - DRIVESHAFT TUBE
$61.99
22 216090 216090 - DRIVESHAFT
$37.99
23 216079 216079 - STOPPER
$8.99
24 213750 213750 - STICKER
$7.99
25 222530 222530 - OUTER ASSY
$144.99
26 222531 222531 - OUTER
$123.99
27 215885 215885 - COVER
$22.99
28 011338 011338 - O-RING
$2.99
29 211895 211895 - INNER SHAFT
$60.99
31 220203 220203 - CLUTCH CASE
$33.99
32 217659 217659 - BEARING #6201 2RK
$21.99
33 055186 055186 - C-SHAPED SNAP RING 12
$2.99
34 016732 016732 - C SHAPED SNAP RING 3
$2.99
35 220052 220052 - CLUTCH DRUM
$33.99
36 817002 817002 - BOLT
$2.99
39 226503 226503 - GRIP
$15.99
40 217091 217091 - BLADE GUARD
$31.99
41 092562 092562 - BOLT
$2.99
