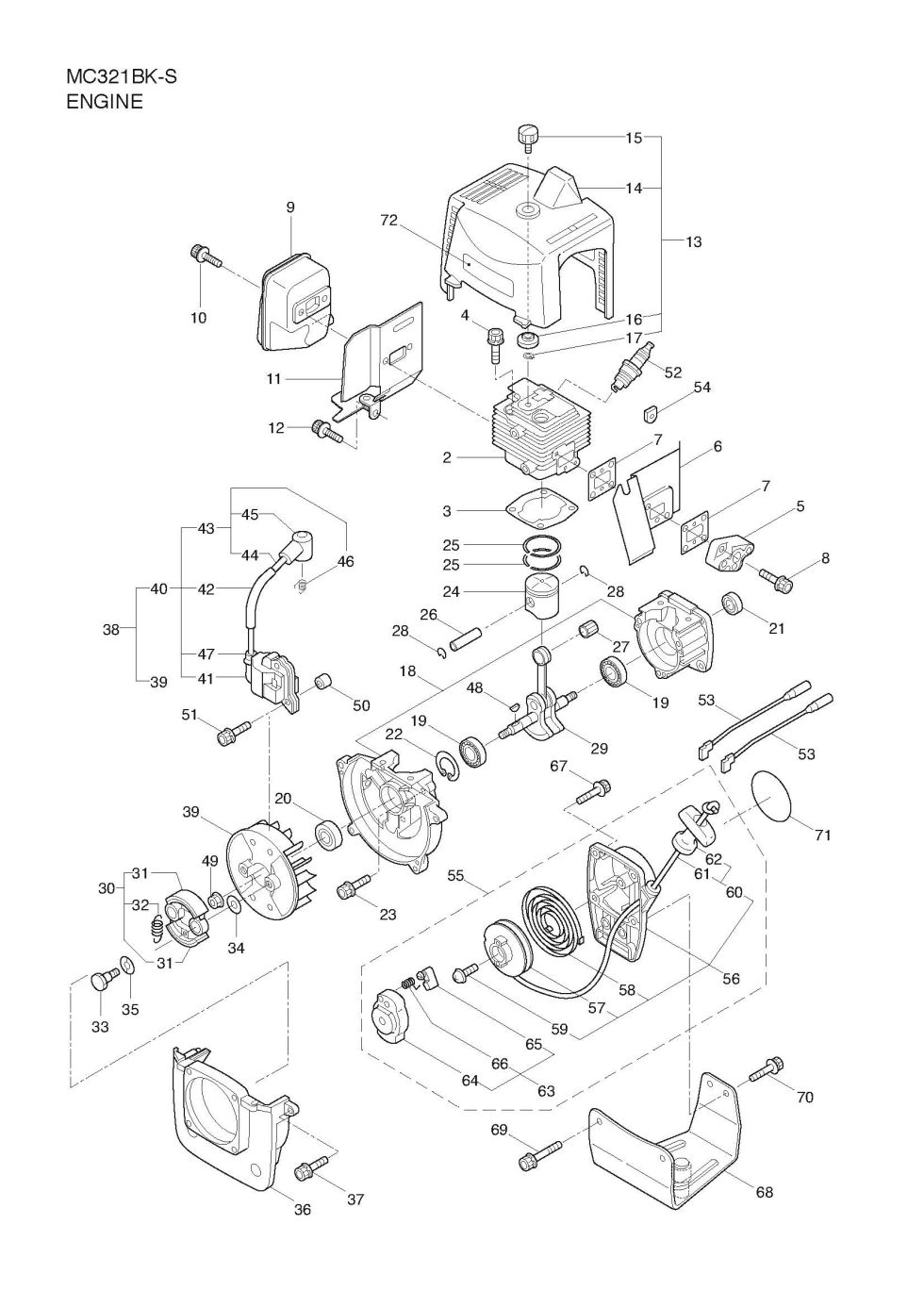

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC321BK-S. You have selected the Engine diagram for the Maruyama MC321BK-S Multicutters. Below you will find an interactive part diagram for the MC321BK-S Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC321BK-S parts not shown in this diagram you may select from one of the other MC321BK-S part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 261360 261360 - CYLINDER
$132.99
3 261528 261528 - GASKET
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 261938 261938 - INSULATOR ASSY
$18.99
6 261364 261364 - HEAT SHIELD
$19.99
7 261171 261171 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 280619 280619 - MUFFLER
$21.99
10 266402 266402 - CAP SCREW
$5.99
11 261833 261833 - GASKET ASSY
$23.99
12 261607 261607 - BOLT M5X16
$2.99
13 265304 265304 - TOP COVER ASSY
$38.99
14 265305 265305 - USE: 265304
$21.99
15 261018 261018 - KNOB
$7.99
16 261020 261020 - SPACER
$2.99
17 261734 261734 - SNAP RING
$2.99
18 261379 261379 - CRANKCASE
$145.99
19 261384 261384 - BEARING
$15.99
20 261385 261385 - OIL SEAL
$6.99
21 261386 261386 - OIL SEAL
$2.99
22 016732 016732 - C SHAPED SNAP RING 3
$2.99
23 261612 261612 - BOLT
$2.99
24 266980 266980 - USE: 273263
$30.99
25 261390 261390 - PISTON RING
$13.99
26 261555 261555 - PISTON PIN
$11.99
27 261392 261392 - NEEDLE BEARING
$21.99
28 261393 261393 - PISTON PIN CLIP
$2.99
29 261395 261395 - CRANKSHAFT
$146.99
30 264503 264503 - CLUTCH ASSY.
$25.99
31 264504 264504 - CLUTCH SHOE
$16.99
32 263614 263614 - CLUTCH SPRING
$18.99
33 264505 264505 - CLUTCH BOLT
$5.99
34 261189 261189 - WASHER
$2.99
35 261777 261777 - WAVE WASHER
$2.99
36 281325 281325 - FAN COVER
$24.99
38 267391 267391 - ROTOR ASSY
$104.99
39 261356 261356 - ROTOR
$69.99
40 267400 267400 - IGNITION COIL ASSY
$87.99
41 267401 267401 - IGNITION COIL
$58.99
42 269418 269418 - SPARK PLUG WIRE INSU
$2.99
43 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
44 267404 267404 - SPARK PLUG WIRE
$2.99
45 261074 261074 - PLUG CAP
$13.99
46 261075 261075 - CONNECTOR
$2.99
47 261072 261072 - CAP
$2.99
48 261076 261076 - WOODRUFF KEY
$2.99
49 261417 261417 - ROTOR NUT
$8.99
50 280381 280381 - SPACER
$2.99
51 261256 261256 - BOLT M4X25
$2.99
52 261200 261200 - SPARK PLUG
$20.99
53 267492 267492 - LEAD
$7.99
54 261202 261202 - GROMMET
$2.99
55 262006 262006 - RECOIL STARTER ASSY
$47.99
56 262039 262039 - REWIND STARTER ASSY
$45.99
57 261720 261720 - NLA REEL
$13.99
58 261721 261721 - SPIRAL SPRING
$24.99
59 262922 262922 - SCREW
$2.99
60 261723 261723 - ROPE ASSY
$24.99
61 261724 261724 - STARTER ROPE
$9.99
63 263475 263475 - STARTER PAWL ASSY
$28.99
64 263476 263476 - STARTER
$24.99
65 263477 263477 - PAWL
$10.99
66 261728 261728 - RETURN SPRING
$2.99
67 261257 261257 - CAP SCREW M4X16
$2.99
69 261999 261999 - CAP SCREW M5X40
$2.99
71 281726 281726 - LABEL????
$2.99
72 281758 281758 - LABEL????
$2.99
