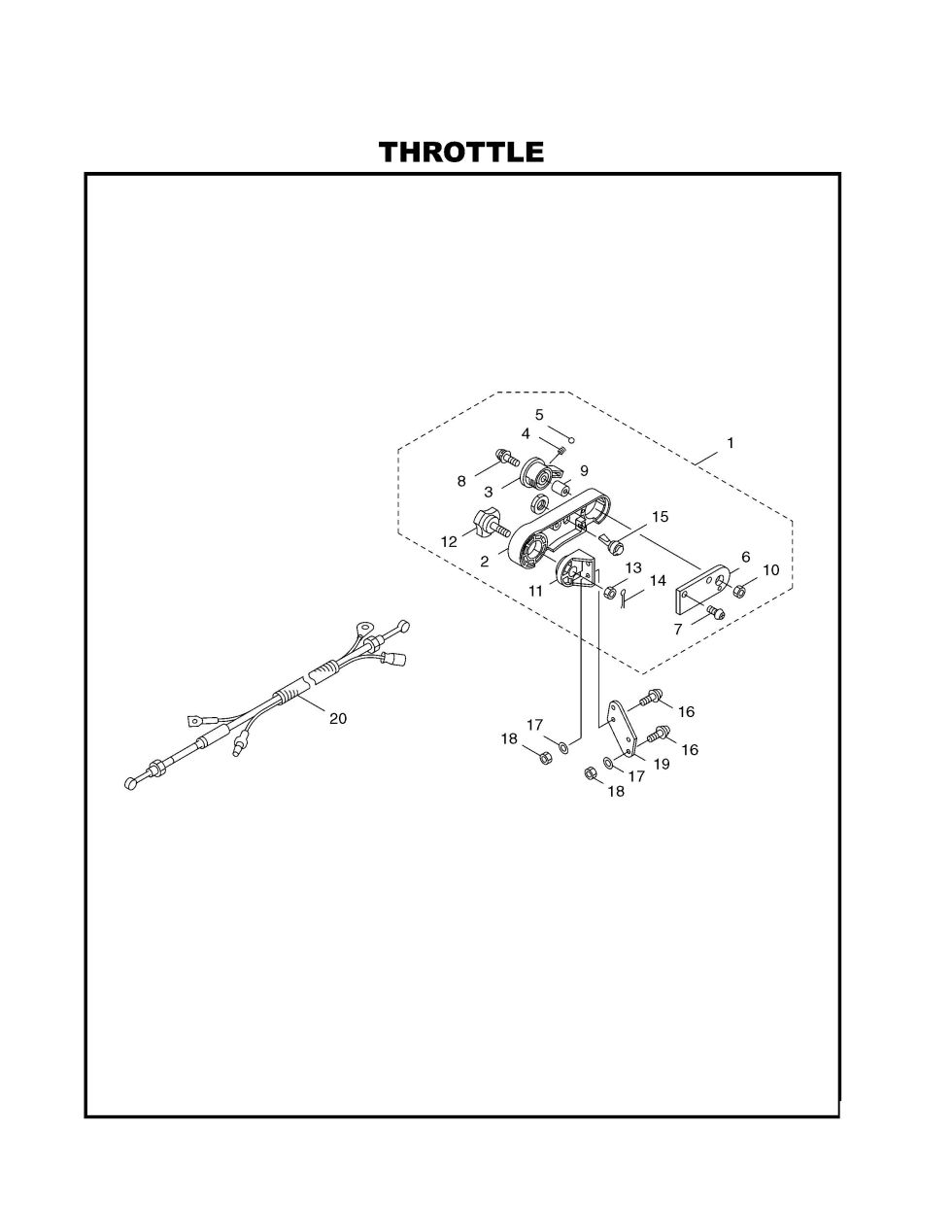

Throttle

Throttle

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M460B. You have selected the Throttle diagram for the Maruyama M460B Big M Equipment. Below you will find an interactive part diagram for the M460B Throttle. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M460B parts not shown in this diagram you may select from one of the other M460B part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 117622 117622 - THROTTLE LEVER ASSY
$43.99
2 107126 107126 - ARM
$15.99
3 107127 107127 - LEVER
$8.99
4 107221 107221 - SPRING
$2.99
5 106498 106498 - VALVE BALL
$2.99
6 107129 107129 - STAY
$7.99
7 019001 019001 - TAPPING SCREW
$2.99
8 092058 092058 - SCREW(M6X25)
$2.99
9 107136 107136 - COLLAR
$5.99
10 081031 081031 - NUT M6
$2.99
11 115605 115605 - NLA FLANGE
$5.99
12 115612 115612 - KNOB BOLT
$17.99
13 107581 107581 - NYLON NUT
$2.99
14 065842 065842 - COTTER PIN
$2.99
15 117623 117623 - SWITCH
$12.99
16 816038 816038 - SCREW(M6X20)
$2.99
17 013754 013754 - Washer (M6)
$0.81
18 112509 112509 - NUT
$2.99
19 117603 117603 - PLATE
$5.99
20 636826 636826 - THROTTLE CABLE ASSY
$30.99
