Main Body

Main Body

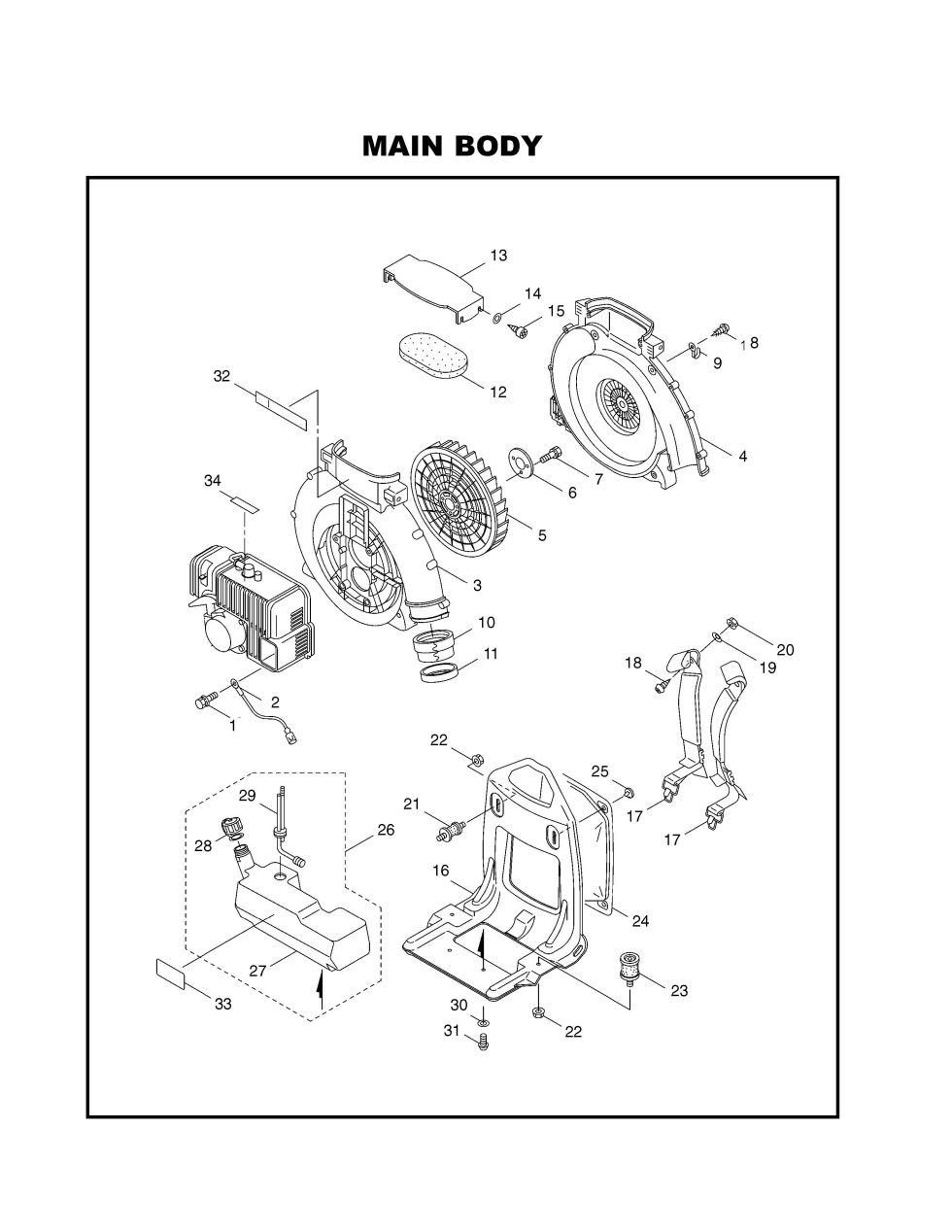

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M460B. You have selected the Main Body diagram for the Maruyama M460B Big M Equipment. Below you will find an interactive part diagram for the M460B Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M460B parts not shown in this diagram you may select from one of the other M460B part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 092543 092543 - BOLT
$2.99
2 108634 108634 - GROUND CABLE
$6.99
3 122300 122300 - FAN CASE(E)
$51.99
4 122301 122301 - FAN CASE(S)
$57.99
5 118724 118724 - FAN
$68.99
6 118248 118248 - SS DOUGHNUT PLATE
$5.99
7 096056 096056 - BOLT
$2.99
9 109051 109051 - CLAMP
$2.99
10 119160 119160 - COLLAR
$5.99
11 119161 119161 - BAND
$7.99
12 112028 112028 - PACKING
$11.99
13 121966 121966 - NLA COVER
$24.99
14 013754 013754 - Washer (M6)
$0.81
15 082708 082708 - TAPPING SCREW
$2.99
16 122302 122302 - KNAPSACK FRAME
$85.99
17 120625 120625 - KNAPSACK BAND
$30.99
19 100603 100603 - USE: 127224
$2.99
20 550132 550132 - USE: 127237
$2.99
21 026223 026223 - BUFFER
$17.99
22 109704 109704 - USE: 127228
$2.99
23 120615 120615 - SHOCK ABSORBER
$22.99
24 107482 107482 - CUSHION PAD
$32.99
25 840543 840543 - NLA PAD RETAINER
$2.99
26 119388 119388 - FUEL TANK ASSY
$61.99
27 120154 120154 - FUEL TANK (obsolete)
use part #127673
$31.99
28 119390 119390 - FUEL CAP ASSY
$26.99
29 119391 119391 - FUEL FILTER
$39.99
30 015479 015479 - WASHER
$2.99
31 081414 081414 - SCREW
$2.99
32 120675 120675 - DECAL
$2.99
33 121132 121132 - LABEL(BP400)
$5.99
34 266959 266959 - LABEL
$6.99
