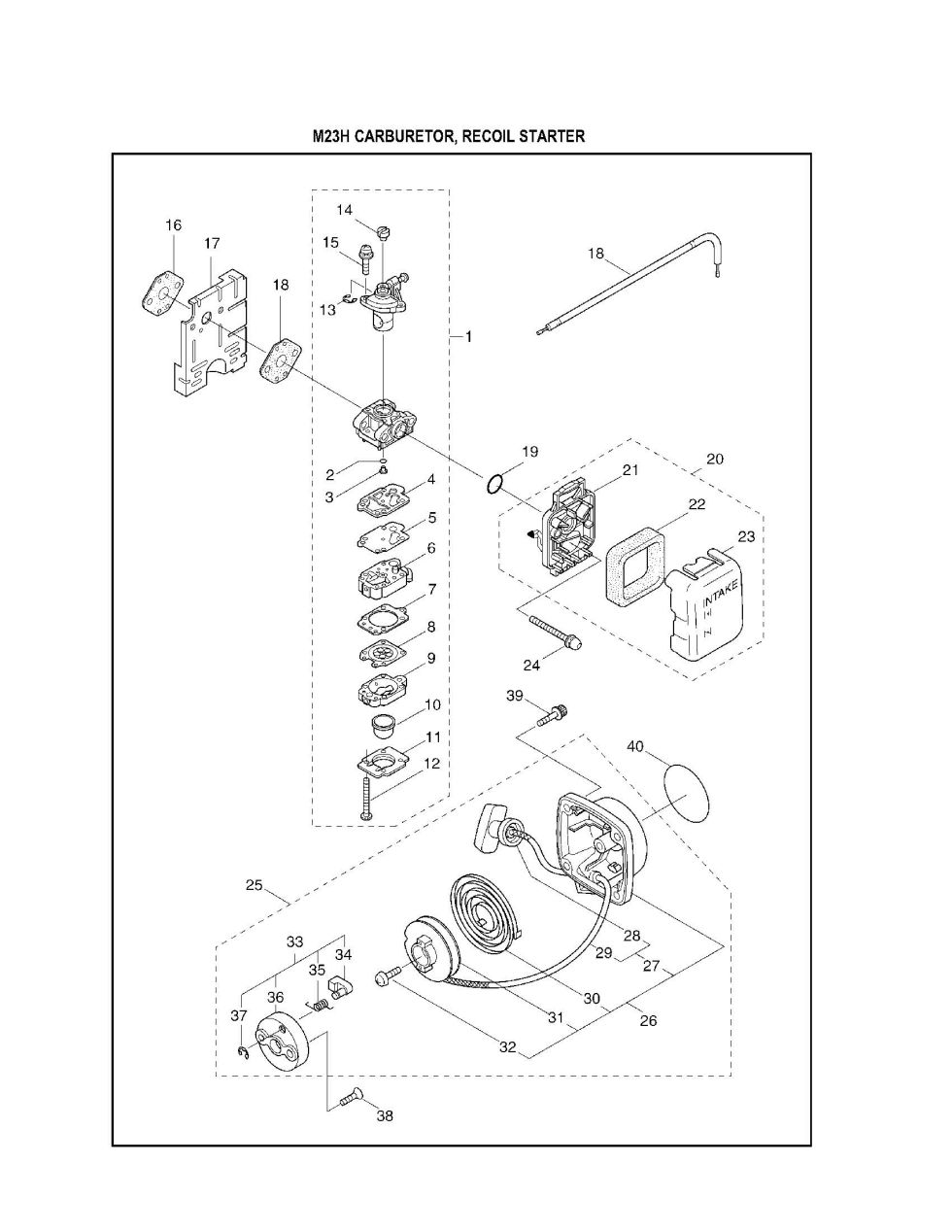

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M23H. You have selected the Recoil Starter diagram for the Maruyama M23H Big M Equipment. Below you will find an interactive part diagram for the M23H Recoil Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23H parts not shown in this diagram you may select from one of the other M23H part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 266287 266287 - NLA CARBURETOR A
$91.99
2 261871 261871 - O-RING
$2.99
3 262121 262121 - MAIN JET(#41)
$11.99
4 262995 262995 - GASKET
$13.99
5 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
6 264155 264155 - PUMP BODY
$80.99
7 262993 262993 - GASKET
$10.99
8 261873 261873 - DIAPHRAGM ASSY
$17.99
9 262991 262991 - PURGE BODY
$23.99
10 261874 261874 - PRIMER
$10.99
11 262992 262992 - COVER PLATE
$11.99
12 262996 262996 - SCREW
$2.99
13 261876 261876 - E-RING
$2.99
14 261658 261658 - SWIVEL
$5.99
15 264682 264682 - SCREW
$5.99
16 261864 261864 - GASKET
$2.99
17 265973 265973 - BAFFLE PLATE
$15.99
18 264604 264604 - CABLE COMP
$12.99
19 264691 264691 - O-RING
$2.99
20 266420 266420 - AIR FILTER ASSY. (obsolete)
use part #277926
$16.99
21 266433 266433 - CASE ASSY
$21.99
22 264695 264695 - FILTER
$12.99
23 264709 264709 - CLEANER COVER (obsolete)
use part #277554
$17.99
24 264016 264016 - CAP SCREW M5X60
$2.99
25 264534 264534 - RECOIL STARTER ASSY
$45.99
26 264083 264083 - RECOIL ASSY
$43.99
27 115096 115096 - ROPE/ GRIP ASSY
$19.99
28 261725 261725 - STARTER GRIP
$9.99
29 261627 261627 - STARTER ROPE
$8.99
30 261622 261622 - SPIRAL SPRING
$19.99
31 261621 261621 - REEL
$14.99
32 262922 262922 - SCREW
$2.99
33 264085 264085 - STARTER PAWL ASSY
$17.99
34 261630 261630 - PAWL
$10.99
35 261631 261631 - RETURN SPRING
$2.99
36 264086 264086 - PAWL CASE
$18.99
37 020299 020299 - E-SHAPED SNAP RING
$2.99
38 264535 264535 - SCREW(M6X20)
$2.99
39 264807 264807 - CAP SCREW M5X16
$2.99
40 268895 268895 - LABEL
$2.99
