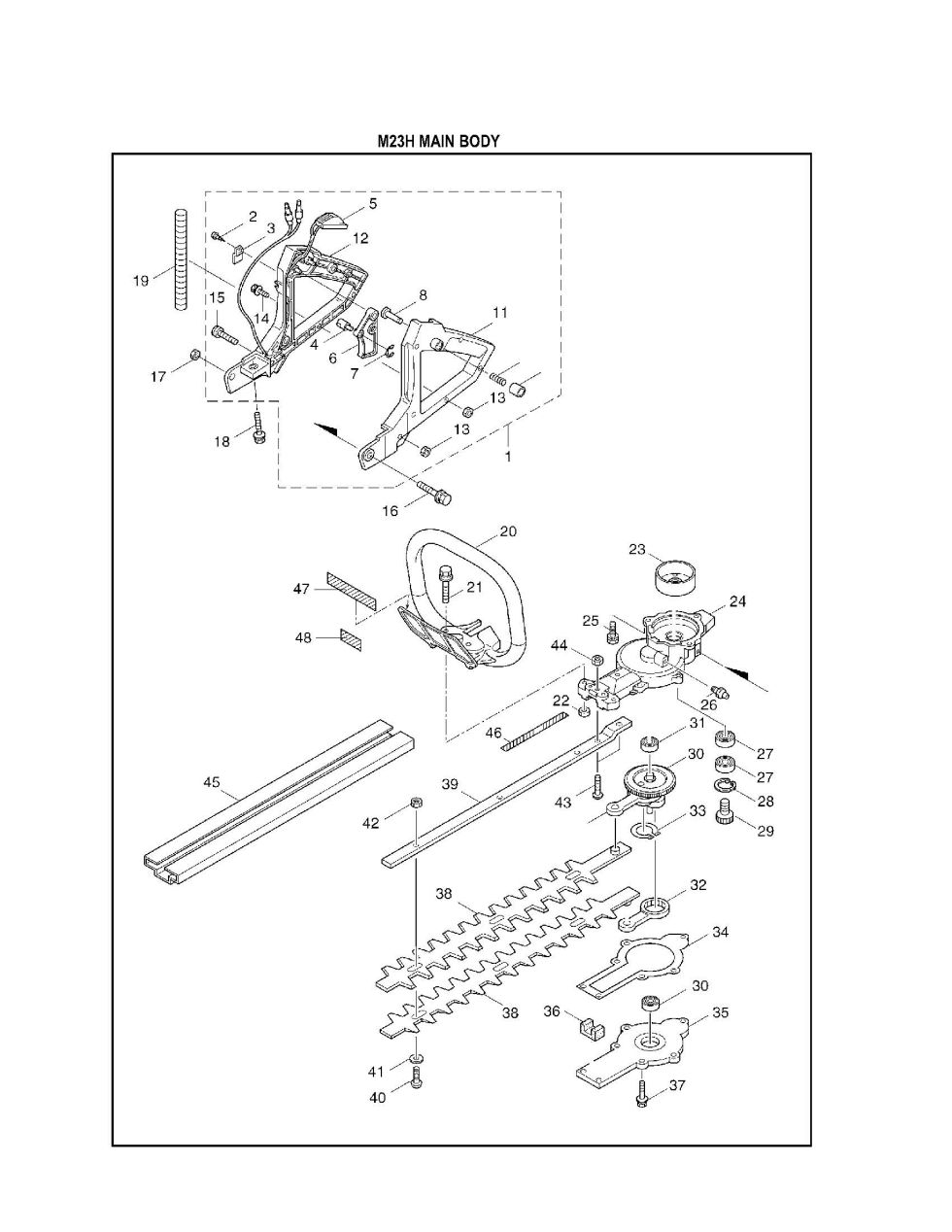

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M23H. You have selected the Main Body diagram for the Maruyama M23H Big M Equipment. Below you will find an interactive part diagram for the M23H Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23H parts not shown in this diagram you may select from one of the other M23H part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 270146 270146 - REAR HANDLE ASSY
$95.99
2 997258 997258 - SCREW(M4X10)
$2.99
3 997259 997259 - CABLE HOLDER
$2.99
4 997260 997260 - SWIVEL
$24.99
5 270145 270145 - NLA SWITCH, STOP
$32.99
6 997262 997262 - THROTTLE LEVER
$13.99
7 997263 997263 - RING SNAP
$2.99
8 997264 997264 - PIN, LEVER
$16.99
11 270147 270147 - NS REAR HANDLE (L)
$21.99
12 270099 270099 - REAR HANDLE (R)
$30.99
13 270233 270233 - U-NUT
$2.99
14 997268 997268 - SCREW(M4X16)
$2.99
15 997269 997269 - SCREW(M4X30)
$2.99
16 270119 270119 - BOLT(M6X50)
$2.99
17 997253 997253 - HEX NUT(M6)
$2.99
18 270120 270120 - SCREW(M6X40)
$2.99
19 270023 270023 - TUBE
$18.99
20 582441 582441 - FRONT HANDLE
$87.99
21 270029 270029 - BOLT M6X35
$2.99
22 991941 991941 - USE: 290560
$2.99
23 270021 270021 - DRUM
$45.99
24 270548 270548 - NLA UPPER CASE
$69.99
25 270030 270030 - BOLT(M6X20)
$2.99
26 991937 991937 - NIPPLE, GREASE
$6.99
27 580767 580767 - BALL BEARING (#6001-
$29.99
28 270559 270559 - NLA SNAP RING
$2.99
29 270551 270551 - NLA PINION
$78.99
30 270423 270423 - BEARING
$22.99
31 270552 270552 - NLA CRANK COMP
$98.99
32 270553 270553 - USE: 271225 (obsolete)
use part #271225
$38.99
33 580777 580777 - SNAP RING
$7.99
34 270550 270550 - NLA PACKING
$11.99
35 270549 270549 - NLA PLATE
$28.99
36 270567 270567 - NLA FELT
$13.99
37 270557 270557 - NLA SCREW
$2.99
38 270591 270591 - NLA HEDGETRIMMER BLA
$81.99
39 270590 270590 - NLA GUIDE PLATE
$46.99
40 991914 991914 - SCREW
$10.99
41 991913 991913 - WASHER
$2.99
43 270556 270556 - SCREW
$2.99
44 270558 270558 - NLA NUT
$2.99
45 270579 270579 - NLA BLADE COVER
$18.99
46 591450 591450 - LABEL
$5.99
47 591449 591449 - NLA LABEL
$5.99
48 223925 223925 - LABEL
$2.99
