 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

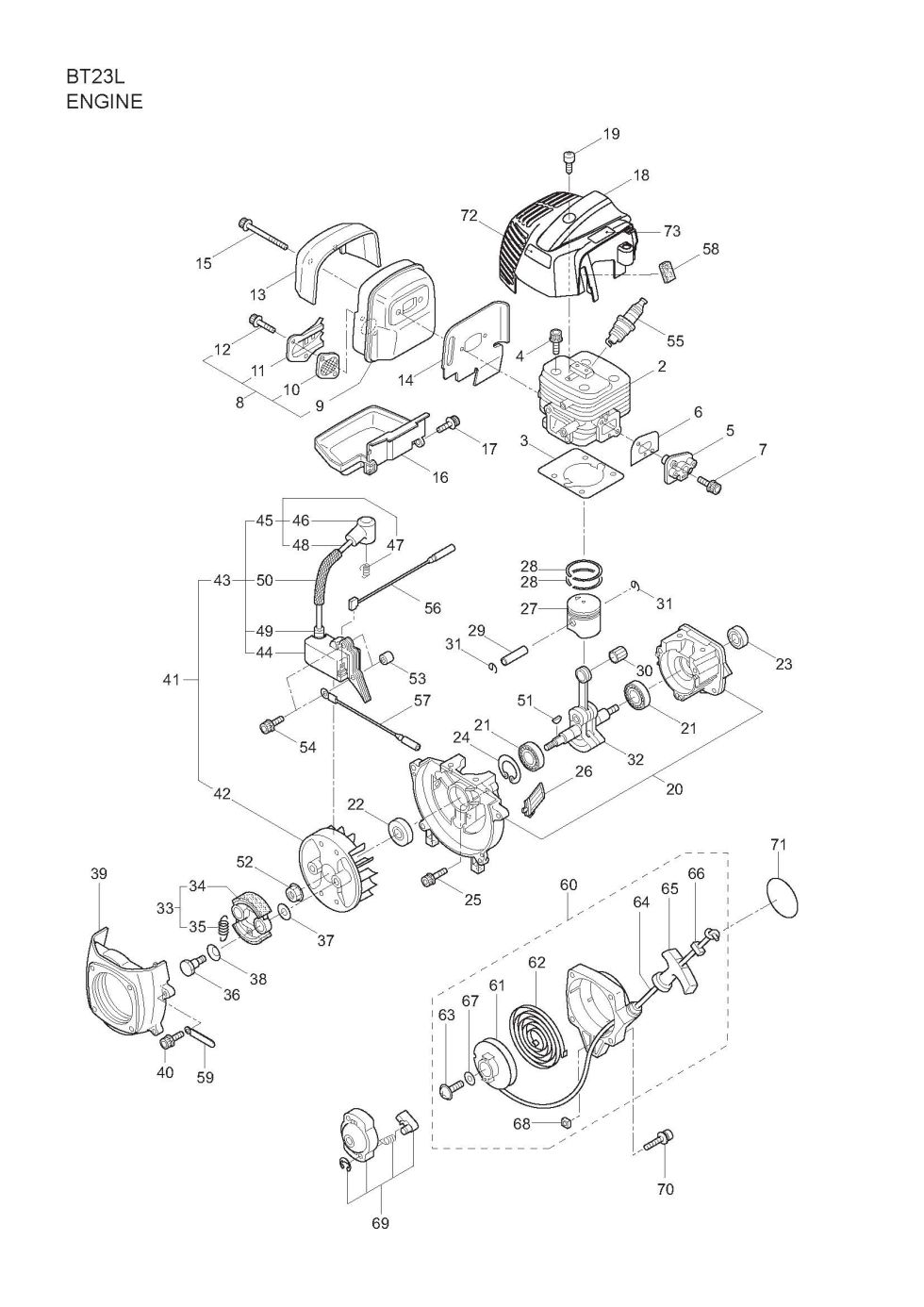

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 286309 | 286309 - USE: 288499 |
$147.99
|
|
| 3 | 286074 | 286074 - GASKET |
$13.99
|
|
| 4 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 5 | 269144 | 269144 - INSULATOR |
$22.99
|
|
| 6 | 267049 | 267049 - GASKET |
$2.99
|
|
| 7 | 265924 | 265924 - CAP SCREW 5X25 |
$2.99
|
|
| 8 | 282208 | 282208 - MUFFLER ASSY. |
$97.99
|
|
| 9 | 282209 | 282209 - MUFFLER |
$114.99
|
|
| 10 | 267056 | 267056 - SPARK ARRESTER |
$7.99
|
|
| 11 | 268171 | 268171 - MUFFLER TAIL |
$11.99
|
|
| 12 | 265107 | 265107 - BOLT |
$2.99
|
|
| 13 | 268461 | 268461 - HOLDER |
$7.99
|
|
| 14 | 281440 | 281440 - GASKET |
$6.99
|
|
| 15 | 266402 | 266402 - CAP SCREW |
$5.99
|
|
| 16 | 281446 | 281446 - UNDER COVER |
$5.99
|
|
| 17 | 267191 | 267191 - CAP SCREW |
$2.99
|
|
| 18 | 287601 | 287601 - TOP COVER |
$22.99
|
|
| 19 | 286349 | 286349 - KNOB |
$2.99
|
|
| 20 | 268026 | 268026 - CRANKCASE |
$63.99
|
|
| 21 | 280488 | 280488 - USE: 261491 |
$13.99
|
|
| 22 | 261492 | 261492 - OIL SEAL |
$2.99
|
|
| 23 | 261386 | 261386 - OIL SEAL |
$2.99
|
|
| 24 | 055185 | 055185 - SNAP RING |
$2.99
|
|
| 25 | 261612 | 261612 - BOLT |
$2.99
|
|
| 26 | 281442 | 281442 - SCREEN |
$2.99
|
|
| 27 | 268032 | 268032 - USE: 283379 |
$45.99
|
|
| 28 | 282177 | 282177 - PISTON RING |
$16.99
|
|
| 29 | 261036 | 261036 - PISTON PIN |
$16.99
|
|
| 30 | 263957 | 263957 - BEARING NEEDLE |
$21.99
|
|
| 31 | 261576 | 261576 - CIRCLIP |
$2.99
|
|
| 32 | 268187 | 268187 - CRANKSHAFT/CONN ROD |
$82.99
|
|
| 33 | 269168 | 269168 - CLUTCH ASS'Y |
$44.99
|
|
| 34 | 269169 | 269169 - Clutch Shoe |
$20.99
|
|
| 35 | 269173 | 269173 - Clutch Spring |
$5.99
|
|
| 36 | 269647 | 269647 - Clutch Bolt |
$2.99
|
|
| 37 | 269175 | 269175 - WASHER |
$2.99
|
|
| 38 | 261777 | 261777 - WAVE WASHER |
$2.99
|
|
| 39 | 287606 | 287606 - FAN COVER |
$18.99
|
|
| 41 | 286269 | 286269 - USE: 288196 |
No Longer Available Obsolete. |
|
| 42 | 286271 | 286271 - ROTOR/FAN |
$34.99
|
|
| 43 | 281705 |
281705 - IGNITION COIL (obsolete) use part #288197 |
$41.99
|
|
| 44 | 281706 | 281706 - COIL |
$57.99
|
|
| 45 | 281707 | 281707 - SPARK PLUG WIRE ASSY |
$23.99
|
|
| 46 | 261074 | 261074 - PLUG CAP |
$13.99
|
|
| 47 | 261075 | 261075 - CONNECTOR |
$2.99
|
|
| 48 | 281709 | 281709 - SPARK PLUG WIRE |
$2.99
|
|
| 49 | 261072 | 261072 - CAP |
$2.99
|
|
| 50 | 280080 | 280080 - INSULATOR |
$2.99
|
|
| 51 | 261076 | 261076 - WOODRUFF KEY |
$2.99
|
|
| 52 | 261417 | 261417 - ROTOR NUT |
$8.99
|
|
| 53 | 280381 | 280381 - SPACER |
$2.99
|
|
| 54 | 261256 | 261256 - BOLT M4X25 |
$2.99
|
|
| 56 | 263804 | 263804 - USE: 283735 |
$2.99
|
|
| 57 | 268044 | 268044 - LEAD |
$5.99
|
|
| 58 | 269189 | 269189 - GROMMET |
$2.99
|
|
| 59 | 264588 | 264588 - CLAMP |
$2.99
|
|
| 60 | 282757 | 282757 - STARTER ASSY |
$31.99
|
|
| 61 | 280492 | 280492 - REEL |
$17.99
|
|
| 62 | 287421 | 287421 - SPIRAL SPRING |
$11.99
|
|
| 63 | 280494 | 280494 - SCREW |
$2.99
|
|
| 64 | 283616 | 283616 - STARTER ROPE |
$6.99
|
|
| 65 | 282186 | 282186 - STARTER GRIP |
$2.99
|
|
| 66 | 282187 | 282187 - STOPPER |
$6.99
|
|
| 67 | 280547 | 280547 - WASHER |
$2.99
|
|
| 68 | 269423 | 269423 - NUT |
$2.99
|
|
| 69 | 269492 | 269492 - STARTER PAWL ASSEMBL |
$21.99
|
|
| 70 | 265724 | 265724 - BOLT (M4X25) |
$2.99
|
|
| 71 | 287609 | 287609 - Label |
$5.99
|
|
| 72 | 287610 | 287610 - Label |
$5.99
|
|
| 73 | 287272 | 287272 - Label |
$2.99
|
