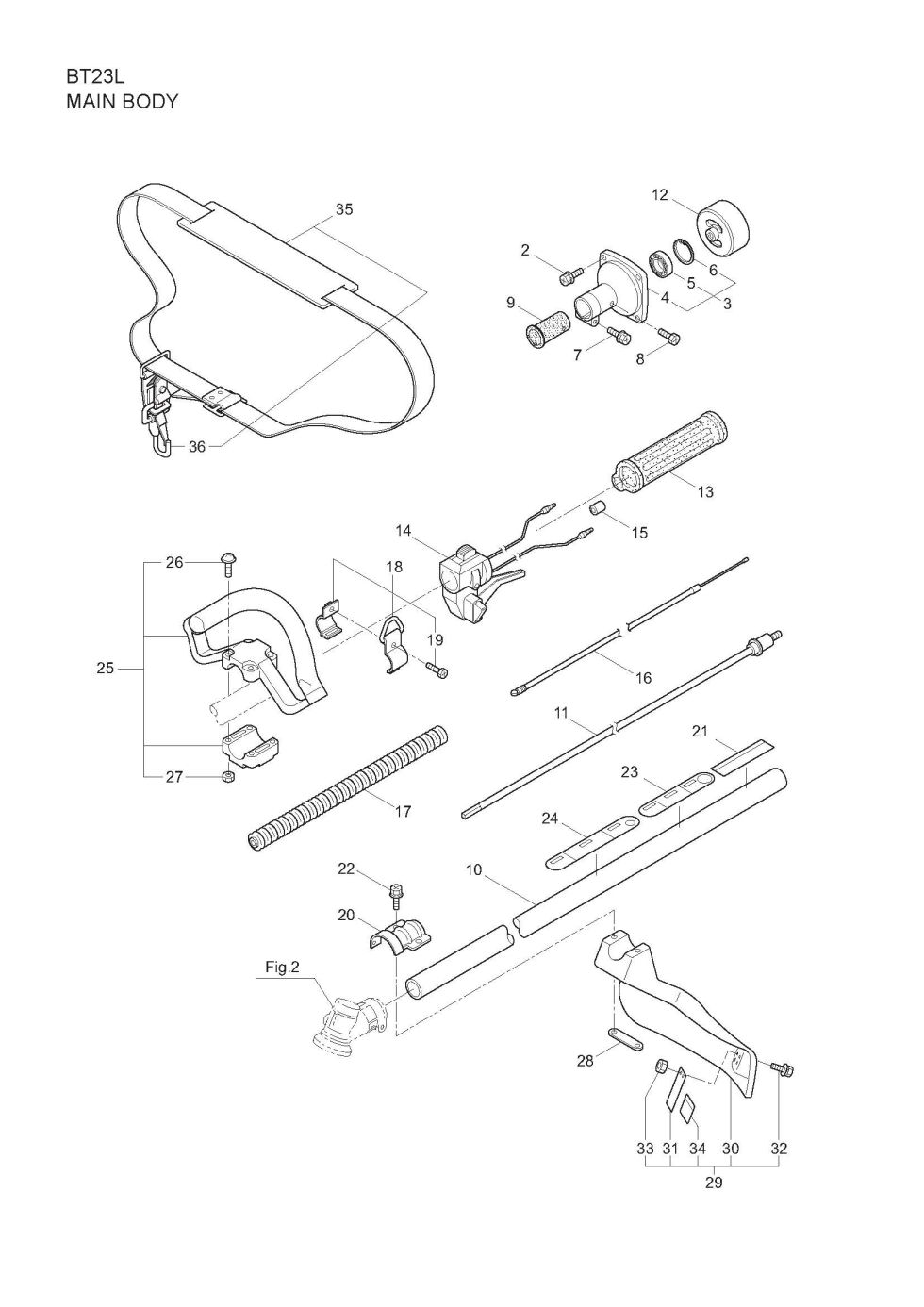

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BT23L. You have selected the Main Body diagram for the Maruyama BT23L Trimmers and Brushcutters. Below you will find an interactive part diagram for the BT23L Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BT23L parts not shown in this diagram you may select from one of the other BT23L part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 817002 817002 - BOLT
$2.99
3 226692 226692 - CLUTCH CASE
$36.99
4 226664 226664 - Clutch Case
$34.99
5 016405 016405 - BEARING
$22.99
6 013825 013825 - C-SHAPED SNAP RING
$2.99
7 096042 096042 - BOLT (M5X30)
$2.99
9 269991 269991 - CUSHION
$2.99
10 226694 226694 - DRIVESHAFT TUBE ASS'
$70.99
11 224644 224644 - DRIVESHAFT ASSY.
$35.99
12 222671 222671 - CLUTCH DRUM
$28.99
13 215532 215532 - SHAFT GRIP
$24.99
14 221465 221465 - THROTTLE TRIGGER
$62.99
15 214083 214083 - OUTER GUIDE
$2.99
16 213444 213444 - THROTTLE CABLE
$13.99
17 213548 213548 - PLASTIC TUBE
$2.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 225962 225962 - BRACKET
$7.99
21 232216 232216 - Label
$12.99
23 221501 221501 - LABEL
$9.99
24 221502 221502 - LABEL
$14.99
25 225734 225734 - LOOP HANDLE ASS'Y
$19.99
26 222142 222142 - SCREW M5X28
$2.99
27 081027 081027 - NUT M5
$2.99
28 225963 225963 - THREADED BRACKET
$2.99
29 232227 232227 - COVER ASS'Y
$31.99
30 225961 225961 - SAFETY COVER
$27.99
31 231493 231493 - LINE CUTTER (LONG)
$8.99
32 092548 092548 - BOLT M5X15
$2.99
34 212972 212972 - STRING CUTTER COVER
$2.99
35 220533 220533 - SHOULDER STRAP ASSY
$28.99
36 231657 231657 - HOOK
$6.99
