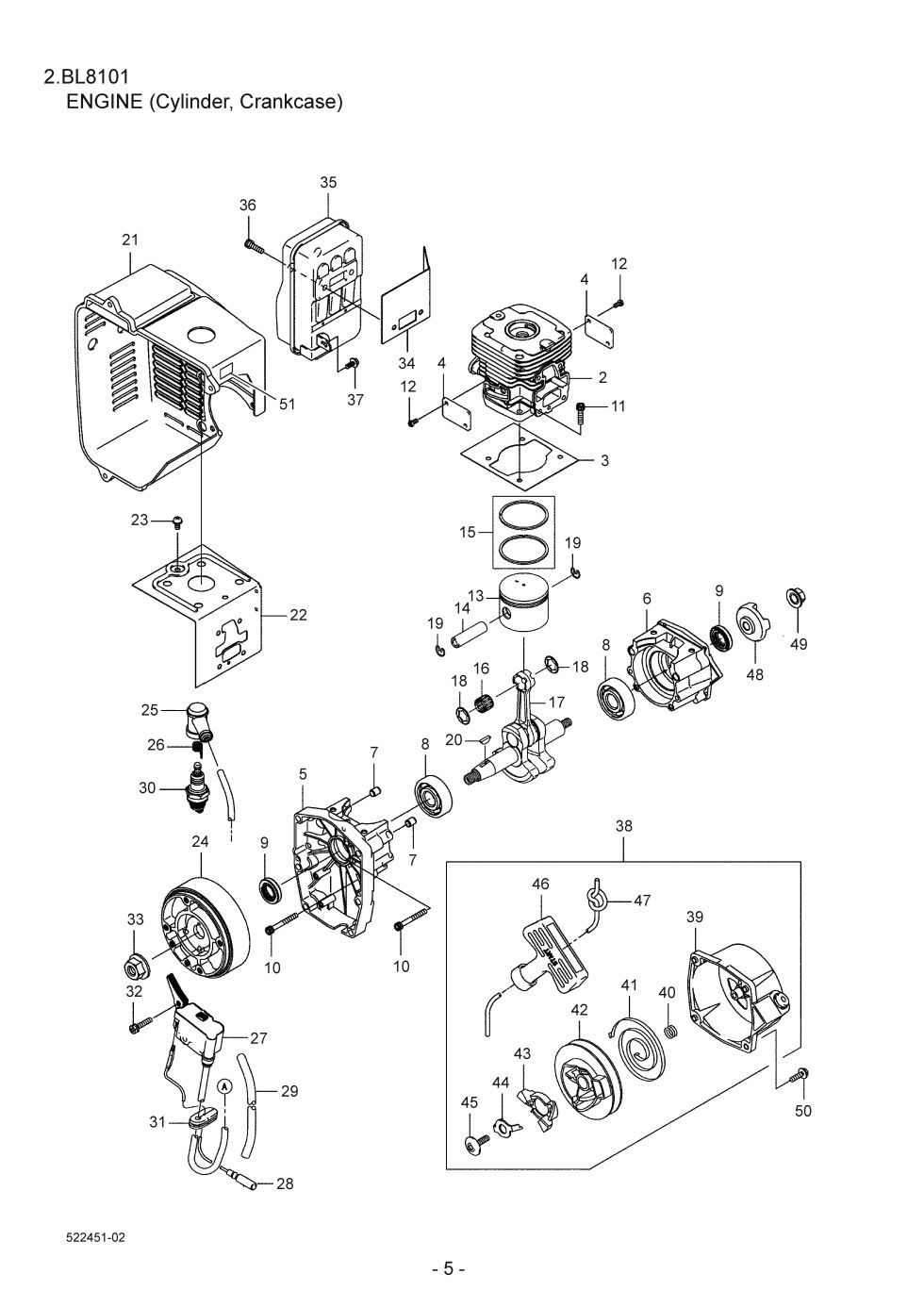

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8101. You have selected the Engine (Cylinder, Crankcase) diagram for the Maruyama BL8101 Blowers. Below you will find an interactive part diagram for the BL8101 Engine (Cylinder, Crankcase). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8101 parts not shown in this diagram you may select from one of the other BL8101 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 649312 649312 - USE: 426073
$107.99
3 649313 649313 - USE: 415369
$17.99
4 649314 649314 - PLATE
$6.99
5 649315 649315 - CRANKCASE
$140.99
6 649316 649316 - CRANKCASE
$118.99
7 573908 573908 - PIN
$2.99
8 649317 649317 - USE: 426078
$25.99
9 649318 649318 - USE: 414429
$19.99
10 649319 649319 - BOLT
$2.99
11 649320 649320 - USE: 414430
$2.99
12 943572 943572 - SCREW
$2.99
13 649321 649321 - PISTON
$80.99
14 649322 649322 - PISTON PIN
$40.99
15 649323 649323 - USE: 426081
$29.99
16 649325 649325 - BEARING
$25.99
17 649326 649326 - NLA CRANKSHAFT ASSY
$196.99
18 649327 649327 - SPACER
$6.99
19 943307 943307 - SNAP RING
$2.99
20 071695 071695 - KEY
$5.99
21 649328 649328 - SHROUD
$93.99
22 649329 649329 - SHROUD
$17.99
23 996258 996258 - USE: 414435
$2.99
24 649330 649330 - FLYWHEEL
$167.99
25 591532 591532 - SPARK PLUG CAP
$19.99
26 591533 591533 - SPRING
$2.99
27 649331 649331 - IGN COIL ASSY
$214.99
28 649332 649332 - LEAD WIRE
$11.99
29 998411 998411 - TUBE
$2.99
30 649333 649333 - SPARK PLUG
$18.99
31 649334 649334 - GROMMET
$6.99
32 649335 649335 - BOLT
$2.99
33 649336 649336 - NUT M10
$11.99
34 649353 649353 - USE: 426101
$22.99
35 649357 649357 - USE: 415373
$118.99
36 649361 649361 - USE: 414450
$2.99
37 943466 943466 - USE: 414452
$2.99
38 649375 649375 - USE: 400921
$74.99
39 649372 649372 - CASE RECOIL STARTER
$69.99
40 649378 649378 - SPRING
$7.99
41 649379 649379 - SPRING, RECOIL
$38.99
42 649376 649376 - REEL, RECOIL STARTER
$35.99
43 649370 649370 - PAWL
$10.99
44 649371 649371 - RETAINER
$19.99
45 649380 649380 - SCREW
$7.99
46 649373 649373 - GRIP, RECOIL STARTER
$15.99
47 649374 649374 - PULLEY, STARTING
$8.99
49 649381 649381 - NUT
$2.99
50 624845 624845 - SCREW M4X16
$2.99
