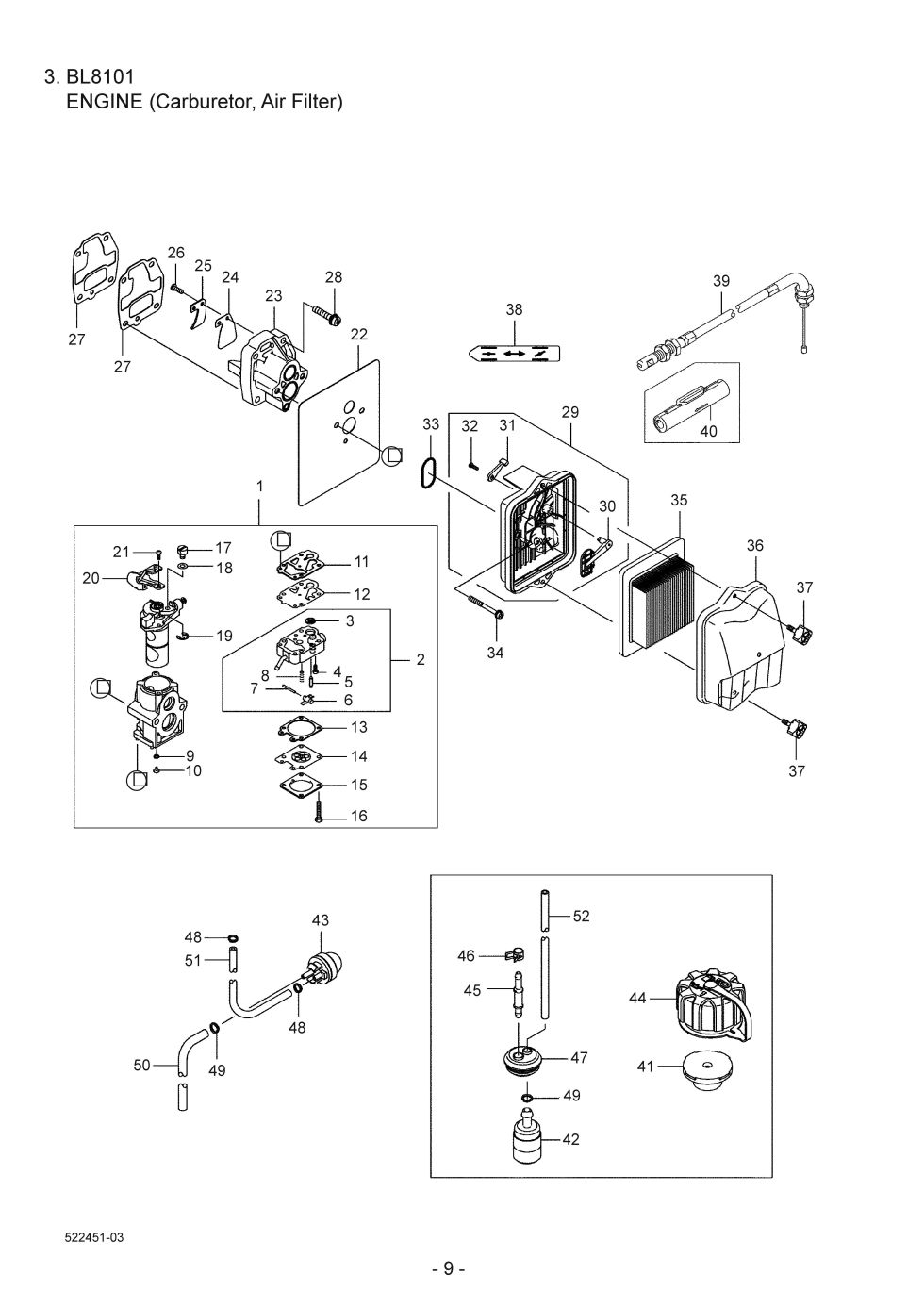

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL8101. You have selected the Engine (Caraburetor, Air Filter) diagram for the Maruyama BL8101 Blowers. Below you will find an interactive part diagram for the BL8101 Engine (Caraburetor, Air Filter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL8101 parts not shown in this diagram you may select from one of the other BL8101 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
1 649344 649344 - USE: CAWYA59 (obsolete)
use part #426098
$144.99
2 649346 649346 - BODY
$72.99
3 624430 624430 - FILTER
$23.99
4 624432 624432 - SCREW
$11.99
5 624431 624431 - FLOAT VALVE
$18.99
6 624429 624429 - LEVER
$19.99
7 624433 624433 - PIN
$8.99
8 624434 624434 - SPRING
$13.99
9 577182 577182 - USE: 261871
$8.99
10 649349 649349 - MAIN JET #55.5
$24.99
11 634350 634350 - GASKET
$18.99
12 577185 577185 - DIAPHRAGM
$18.99
13 649339 649339 - GASKET
$13.99
14 634357 634357 - DIAPHRAGM
$29.99
15 649343 649343 - COVER
$19.99
16 649348 649348 - SCREW
$5.99
17 598415 598415 - ARM
$21.99
18 624532 624532 - WASHER
$7.99
19 577175 577175 - SNAP RING
$8.99
20 649338 649338 - BRACKET
$29.99
21 577179 577179 - SCREW
$8.99
22 649341 649341 - USE: 412446
$17.99
23 649345 649345 - INSULATOR
$23.99
24 649342 649342 - REED VALVE
$15.99
25 649347 649347 - STOPPER
$2.99
26 649350 649350 - SCREW
$2.99
27 649340 649340 - USE: 400925
$8.99
28 577361 577361 - SCREW
$2.99
29 649352 649352 - NLA FILTER COVER ASS
$44.99
30 649356 649356 - VALVE
$11.99
31 649355 649355 - LEVER
$11.99
32 649358 649358 - SCREW
$2.99
33 649359 649359 - USE: 423450
$2.99
34 944305 944305 - SCREW
$2.99
35 649351 649351 - USE: 426099 (obsolete)
use part #426099
$35.99
36 649354 649354 - CAP, AIR FILTER
$37.99
37 649360 649360 - USE: 419574 (obsolete)
use part #419574
$13.99
38 598438 598438 - NLA LABEL
$2.99
39 649337 649337 - THROTTLE CABLE
$27.99
40 212250 212250 - CASE
$5.99
41 649362 649362 - USE: 630564 (obsolete)
use part #425442
$29.99
42 625872 625872 - FILTER, FUEL
$28.99
43 649363 649363 - USE: 415374 (obsolete)
use part #415374
$30.99
44 649364 649364 - FUEL CAP
$26.99
45 632199 632199 - JOINT
$7.99
46 944177 944177 - CLAMP
$2.99
47 597949 597949 - GROMMET
$18.99
48 649365 649365 - CLAMP
$2.99
49 649366 649366 - CLAMP
$2.99
50 649367 649367 - USE: 415375
$7.99
51 649368 649368 - TUBE
$2.99
52 649369 649369 - TUBE
$20.99
