 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |

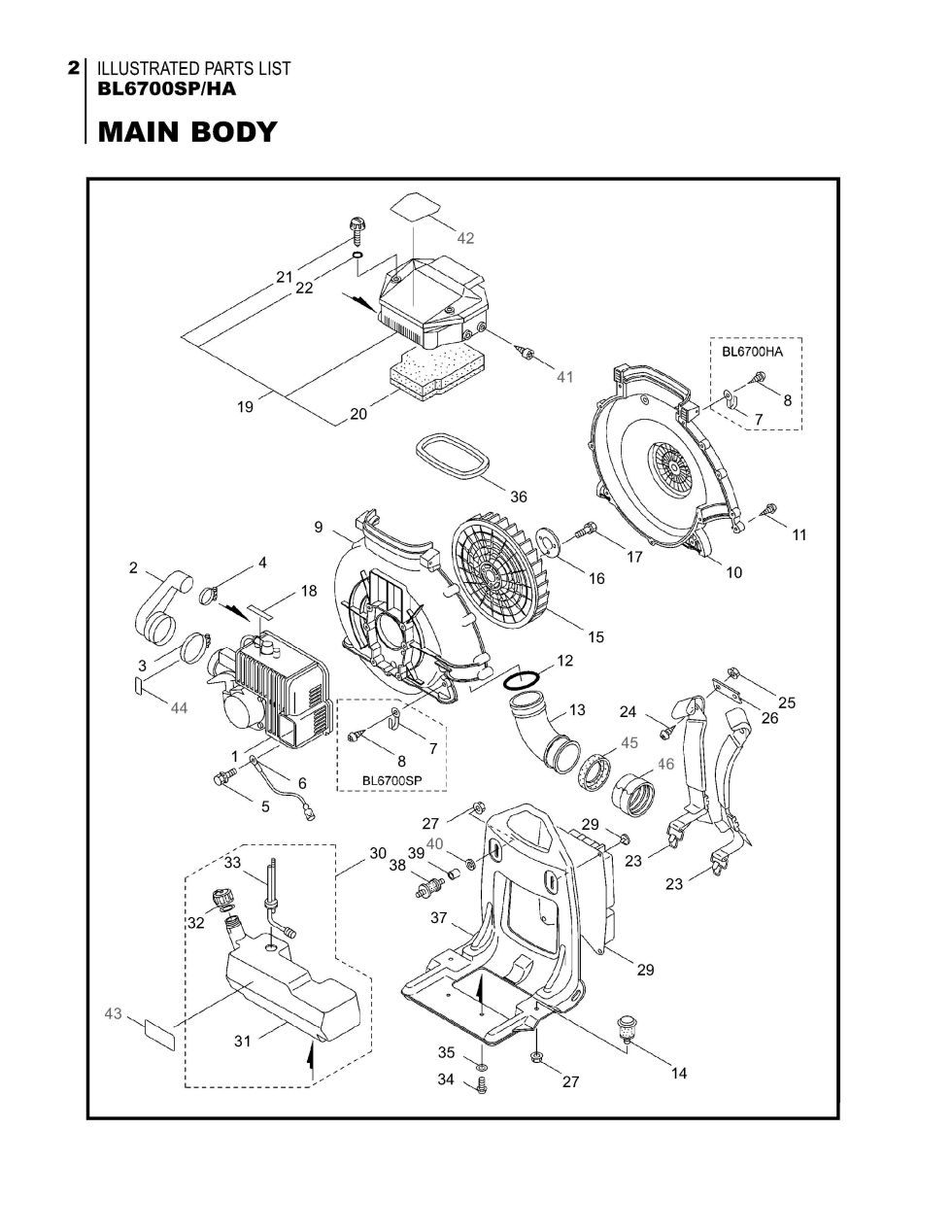

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6700SP, BL6700HA. You have selected the Main Body diagram for the Maruyama BL6700SP, BL6700HA Blowers. Below you will find an interactive part diagram for the BL6700SP, BL6700HA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6700SP, BL6700HA parts not shown in this diagram you may select from one of the other BL6700SP, BL6700HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 121763 | 121763 - ENGINE SHROUD |
$103.99
|
|
| 2 | 121753 | 121753 - INLET PIPE |
$28.99
|
|
| 3 | 121755 | 121755 - BAND |
$15.99
|
|
| 4 | 119684 | 119684 - HOSE BAND |
$7.99
|
|
| 5 | 092544 | 092544 - BOLT |
$2.99
|
|
| 6 | 108634 | 108634 - GROUND CABLE |
$6.99
|
|
| 7 | 103550 | 103550 - CLAMP |
$2.99
|
|
| 9 | 122364 | 122364 - FAN CASE(E) |
$68.99
|
|
| 10 | 121707 | 121707 - FAN CASE (S) |
$59.99
|
|
| 11 | 089538 | 089538 - SCREW |
$2.99
|
|
| 12 | 018236 | 018236 - O-RING |
$6.99
|
|
| 13 | 115243 | 115243 - ELBOW |
$31.99
|
|
| 14 | 120615 | 120615 - SHOCK ABSORBER |
$22.99
|
|
| 15 | 118724 | 118724 - FAN |
$68.99
|
|
| 16 | 118248 | 118248 - SS DOUGHNUT PLATE |
$5.99
|
|
| 17 | 096056 | 096056 - BOLT |
$2.99
|
|
| 18 | 266959 | 266959 - LABEL |
$6.99
|
|
| 19 | 634055 | 634055 - AIR FILTER ASSY W/DE |
$50.99
|
|
| 20 | 122951 | 122951 - AIR FILTER FOAM & FE |
$24.99
|
|
| 21 | 114463 | 114463 - KNOB |
$8.99
|
|
| 22 | 014187 | 014187 - O-RING |
$2.99
|
|
| 23 | 120625 | 120625 - KNAPSACK BAND |
$30.99
|
|
| 25 | 550132 | 550132 - USE: 127237 |
$2.99
|
|
| 27 | 109704 | 109704 - USE: 127228 |
$2.99
|
|
| 29 | 840543 | 840543 - NLA PAD RETAINER |
$2.99
|
|
| 30 | 119388 | 119388 - FUEL TANK ASSY |
$61.99
|
|
| 31 | 120154 |
120154 - FUEL TANK (obsolete) use part #127673 |
$31.99
|
|
| 32 | 119390 | 119390 - FUEL CAP ASSY |
$26.99
|
|
| 33 | 119391 | 119391 - FUEL FILTER |
$39.99
|
|
| 34 | 081414 | 081414 - SCREW |
$2.99
|
|
| 35 | 015479 | 015479 - WASHER |
$2.99
|
|
| 36 | 120536 | 120536 - PACKING |
$19.99
|
|
| 38 | 026223 | 026223 - BUFFER |
$17.99
|
|
| 39 | 120616 | 120616 - SPACER |
$2.99
|
|
| 40 | 120617 | 120617 - WASHER |
$2.99
|
|
| 41 | 120077 | 120077 - SCREW |
$2.99
|
|
| 42 | 122392 | 122392 - LABEL |
$20.99
|
|
| 43 | 121132 | 121132 - LABEL(BP400) |
$5.99
|
|
| 44 | 119613 | 119613 - LABEL |
$5.99
|
|
| 45 | 119161 | 119161 - BAND |
$7.99
|
|
| 46 | 119160 | 119160 - COLLAR |
$5.99
|
