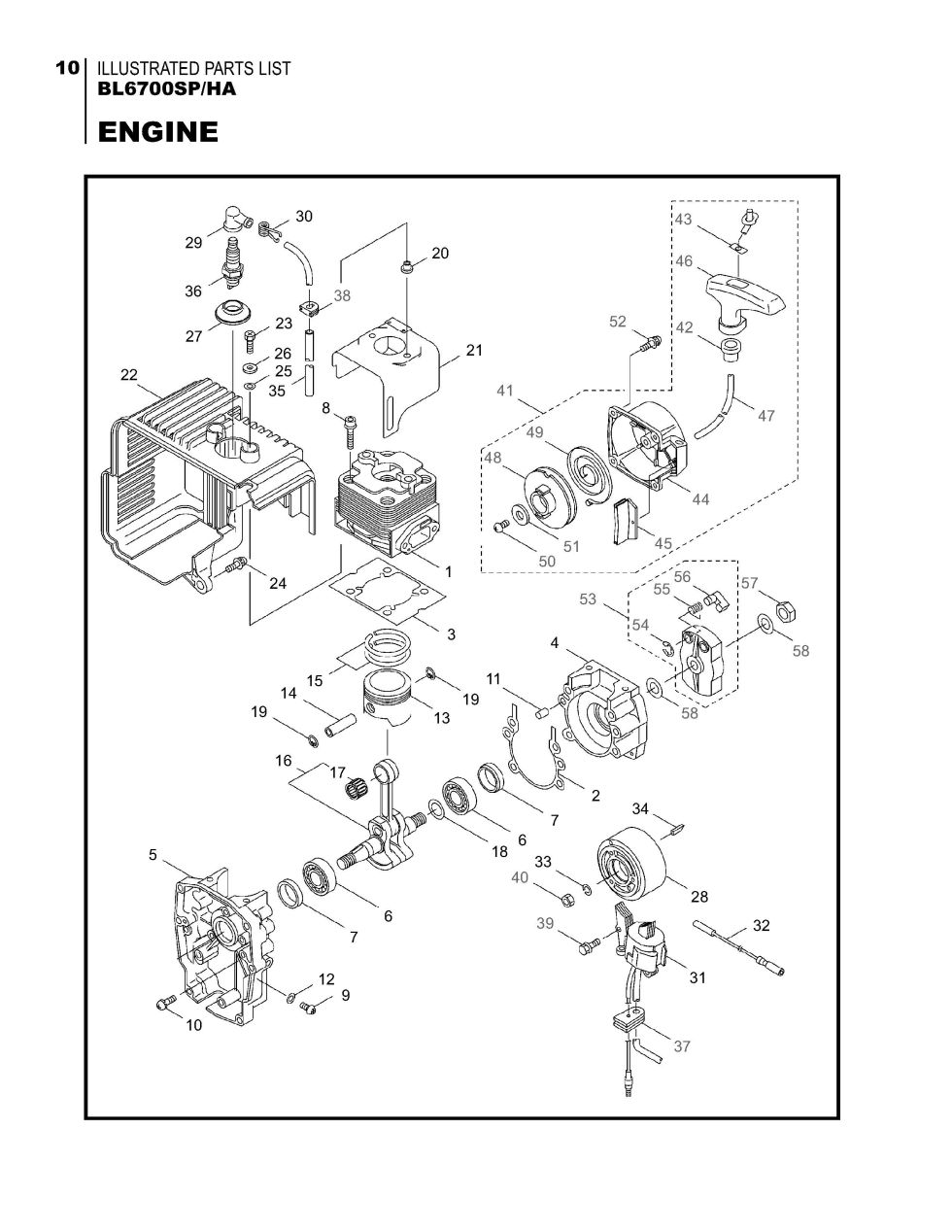

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL6700SP, BL6700HA. You have selected the Engine diagram for the Maruyama BL6700SP, BL6700HA Blowers. Below you will find an interactive part diagram for the BL6700SP, BL6700HA Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL6700SP, BL6700HA parts not shown in this diagram you may select from one of the other BL6700SP, BL6700HA part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 637459 | 637459 - CYLINDER |
$228.99
|
|
| 2 | 998401 | 998401 - GASKET |
$5.99
|
|
| 3 | 637460 | 637460 - GASKET |
$20.99
|
|
| 4 | 998399 | 998399 - CRANKCASE |
$114.99
|
|
| 5 | 998400 | 998400 - CRANKCASE |
$140.99
|
|
| 6 | 620248 | 620248 - BALL BEARING |
$28.99
|
|
| 7 | 071335 | 071335 - OIL SEAL |
$18.99
|
|
| 8 | 597284 | 597284 - BOLT |
$8.99
|
|
| 9 | 944619 | 944619 - SCREW |
$2.99
|
|
| 10 | 599880 | 599880 - SCREW |
$2.99
|
|
| 11 | 943349 | 943349 - DOWEL PIN |
$2.99
|
|
| 12 | 943893 | 943893 - GASKET |
$2.99
|
|
| 13 | 627497 | 627497 - PISTON |
$72.99
|
|
| 14 | 944769 | 944769 - PISTON PIN |
$9.99
|
|
| 15 | 627498 | 627498 - PISTON RING SET |
$43.99
|
|
| 16 | 634426 | 634426 - CRANKSHAFT ASSY. |
$205.99
|
|
| 17 | 597289 | 597289 - USE: 943281 |
$19.99
|
|
| 19 | 943307 | 943307 - SNAP RING |
$2.99
|
|
| 20 | 630053 | 630053 - INSULATOR |
$11.99
|
|
| 21 | 634427 | 634427 - SHROUD |
$24.99
|
|
| 22 | 121763 | 121763 - ENGINE SHROUD |
$103.99
|
|
| 23 | 573307 | 573307 - BOLT |
$2.99
|
|
| 24 | 580184 | 580184 - SCREW |
$2.99
|
|
| 25 | 621123 | 621123 - WASHER |
$2.99
|
|
| 26 | 575415 | 575415 - NLA WASHER |
$6.99
|
|
| 27 | 998412 | 998412 - COVER |
$20.99
|
|
| 28 | 620250 | 620250 - FLYWHEEL |
$130.99
|
|
| 29 | 591532 | 591532 - SPARK PLUG CAP |
$19.99
|
|
| 30 | 591533 | 591533 - SPRING |
$2.99
|
|
| 31 | 597262 | 597262 - IGNITION COIL |
$97.99
|
|
| 32 | 597263 | 597263 - LEAD WIRE |
$19.99
|
|
| 33 | 943924 | 943924 - WASHER |
$2.99
|
|
| 34 | 998409 | 998409 - KEY |
$12.99
|
|
| 35 | 998411 | 998411 - TUBE |
$2.99
|
|
| 36 | 627409 | 627409 - SPARK PLUG BPMR7A |
$24.99
|
|
| 37 | 597293 | 597293 - GROMMET |
$10.99
|
|
| 38 | 634348 | 634348 - GROMMET |
$5.99
|
|
| 39 | 943457 | 943457 - BOLT |
$2.99
|
|
| 40 | 998410 | 998410 - NUT |
$6.99
|
|
| 41 | 998413 | 998413 - RECOIL STARTER ASSY |
$100.99
|
|
| 42 | 998438 | 998438 - ROPE GUIDE |
$17.99
|
|
| 43 | 944502 | 944502 - WASHER |
$8.99
|
|
| 44 | 998439 | 998439 - RECOIL CASE |
$57.99
|
|
| 45 | 998440 | 998440 - SHIELD |
$20.99
|
|
| 46 | 998437 | 998437 - RECOIL STARTER HANDL |
$27.99
|
|
| 47 | 998436 | 998436 - ROPE |
$24.99
|
|
| 48 | 998434 | 998434 - RECOIL REEL |
$35.99
|
|
| 49 | 998435 | 998435 - SPRING |
$33.99
|
|
| 50 | 944801 | 944801 - USE: 570720 |
$2.99
|
|
| 51 | 998433 | 998433 - WASHER |
$2.99
|
|
| 52 | 624845 | 624845 - SCREW M4X16 |
$2.99
|
|
| 53 | 998414 | 998414 - STARTER PAWL ASSY |
$33.99
|
|
| 54 | 944226 | 944226 - USE: 13525 |
$2.99
|
|
| 55 | 579573 | 579573 - RETURN SPRING |
$12.99
|
|
| 56 | 572938 | 572938 - PAWL |
$17.99
|
|
| 57 | 998417 | 998417 - NLA NUT |
$2.99
|
|
| 58 | 071344 | 071344 - WASHER |
$2.99
|
