Gearcase

Gearcase

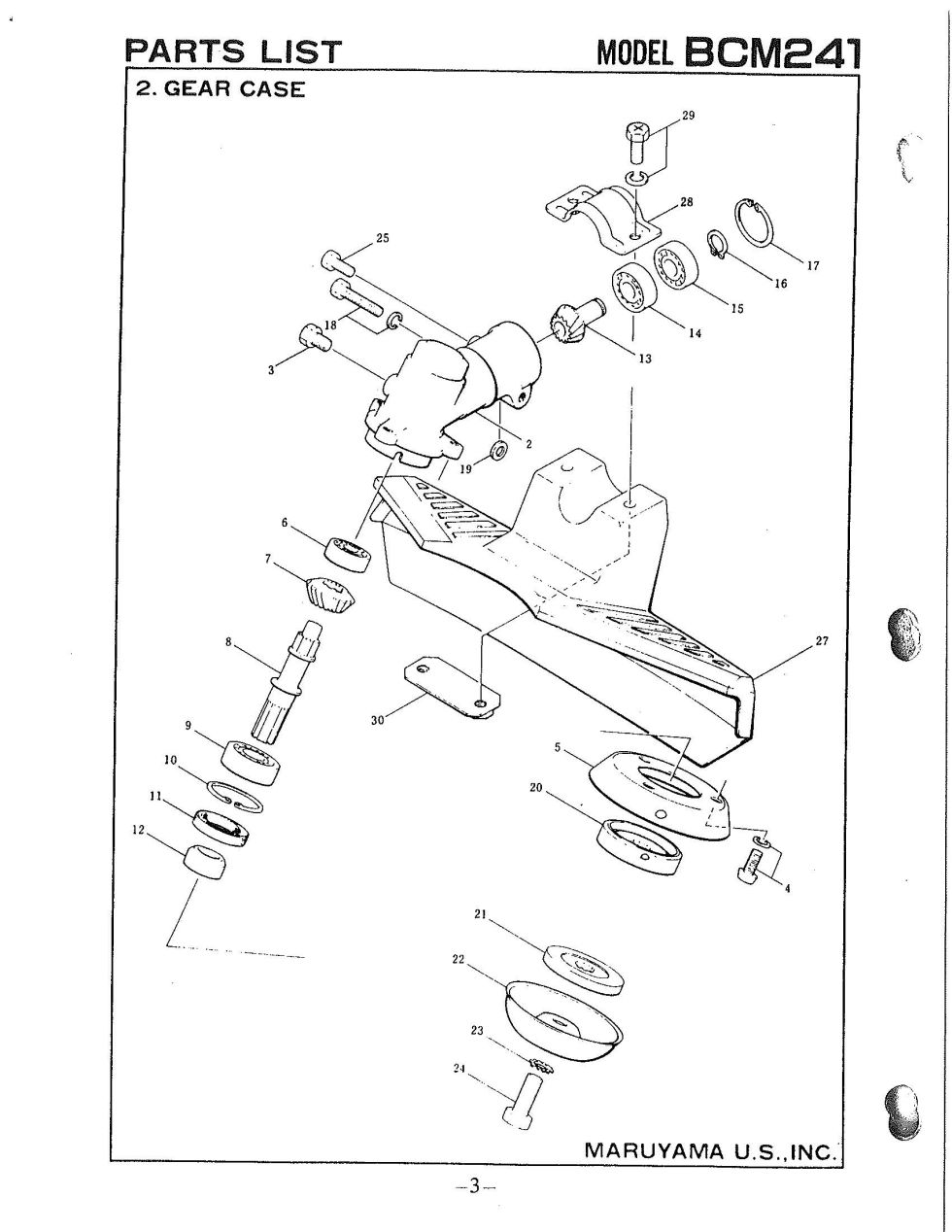

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BCM241. You have selected the Gearcase diagram for the Maruyama BCM241 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BCM241 Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BCM241 parts not shown in this diagram you may select from one of the other BCM241 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 210552 210552 - USE: 214716
$39.99
3 082092 082092 - BOLT
$2.99
4 092084 092084 - SCREW
$2.99
5 210553 210553 - NLA STABILIZER
$9.99
6 210554 210554 - BEARING
$9.99
8 210556 210556 - BLADE AXIS
$38.99
9 019585 019585 - Obsolete - USE PART #972893 No Longer Available
Obsolete.
10 055185 055185 - SNAP RING
$2.99
13 211470 211470 - NS PINION GEAR
$23.99
14 210560 210560 - BEARING
$10.99
15 140268 140268 - BEARING
$12.99
16 140269 140269 - USE: 228477
$2.99
17 140270 140270 - SNAP RING
$2.99
18 092561 092561 - BOLT
$2.99
19 211177 211177 - NLA PACKING (5.5X12X
$2.99
20 210557 210557 - NLA BOSS A
$11.99
21 140275 140275 - CLAMPING WASHER
$17.99
22 210558 210558 - USE: 215547 No Longer Available
Obsolete.
23 210309 210309 - TOOTHED WASHER
$2.99
24 089432 089432 - Obsolete - USE PART #089431 No Longer Available
Obsolete.
25 089771 089771 - BOLT
$2.99
27 210311 210311 - NLA SAFETY COVER
$28.99
28 210413 210413 - USE: 210312
$2.99
29 092555 092555 - BOLT(M6X30)
$2.99
30 210313 210313 - SAFETY COVER BRACKET
$6.99
