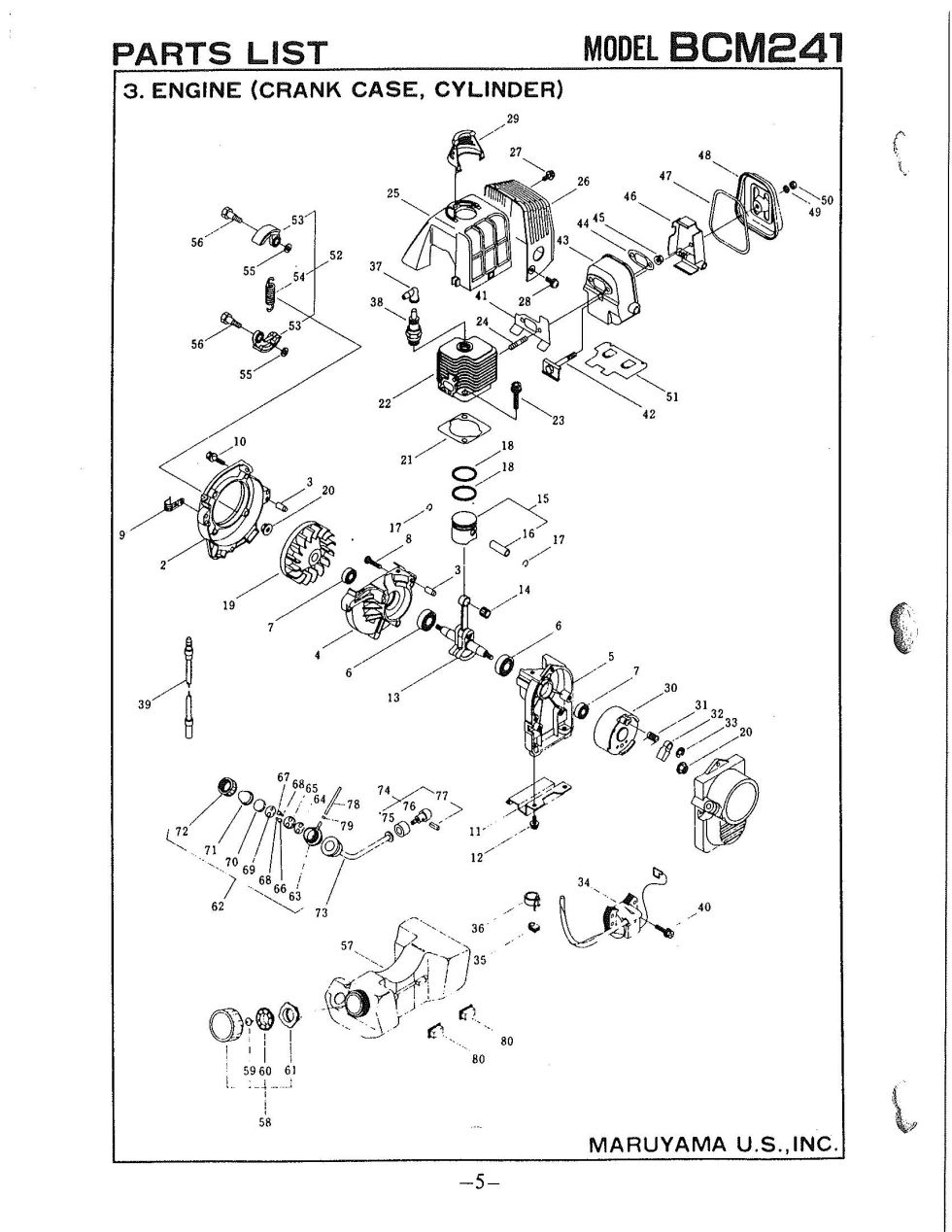

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BCM241. You have selected the Engine (Carnkcase, Cylinder) diagram for the Maruyama BCM241 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BCM241 Engine (Carnkcase, Cylinder). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BCM241 parts not shown in this diagram you may select from one of the other BCM241 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 260006 260006 - NLA FAN CASE
$43.99
3 260005 260005 - NLA DOWEL PIN
$2.99
4 260003 260003 - NLA CRANKCASE D
$39.99
5 260004 260004 - NLA CRANKCASE S
$39.99
6 972893 972893 - NLA BALL BEARING (NO
$14.99
7 912612 912612 - NLA OIL SEAL
$17.99
8 081417 081417 - SCREW
$2.99
9 260223 260223 - NLA CLAMP
$7.99
10 550047 550047 - USE: 092574 No Longer Available
Obsolete.
11 260007 260007 - NLA STAND
$32.99
12 260008 260008 - USE: 92055
$2.99
13 260018 260018 - NLA CRANKSHAFT
$204.99
14 972869 972869 - NLA NEEDLE BEARING
$13.99
15 972821 972821 - NLA PISTON PIN SET
$30.99
16 990675 990675 - NLA PISTON PIN
$10.99
17 972823 972823 - NLA PISTON PIN SNAP
$2.99
18 972822 972822 - NLA PISTON RING
$18.99
19 260026 260026 - NLA FAN
$130.99
20 990135 990135 - USE: 261077
$2.99
21 260011 260011 - NLA CYLINDER GASKET
$12.99
22 260010 260010 - USE: 260972
$185.99
23 978836 978836 - NLA BOLT
$7.99
25 260449 260449 - NLA CYLINDER COVER
$16.99
26 260450 260450 - NLA MUFFLER COVER
$8.99
27 260064 260064 - USE: 092075 No Longer Available
Obsolete.
29 260451 260451 - NLA PLUG GUARD
$2.99
30 260032 260032 - NLA ROTOR
$104.99
31 260034 260034 - NLA SPRING
$6.99
32 260033 260033 - RATCHET
$7.99
33 947557 947557 - USE: 13525
$2.99
34 260438 260438 - USE: 583086
$126.99
35 260044 260044 - NLA GROMMET
$15.99
36 260045 260045 - NLA BAND
$12.99
37 977306 977306 - NLA SPARK PLUG CAP
$21.99
38 910519 910519 - SPARK PLUG
$16.99
39 996515 996515 - LEAD WIRE
$8.99
41 260499 260499 - NLA GASKET
$2.99
42 260502 260502 - NLA PLATE BOLT COMPL
$5.99
43 260498 260498 - NLA MUFFLER BODY
$37.99
44 260077 260077 - NLA PLATE
$12.99
46 260514 260514 - NLA PLATE
$32.99
47 260081 260081 - NLA GASKET
$15.99
48 260080 260080 - NLA MUFFLER COVER
$15.99
49 970631 970631 - USE: 260197
$2.99
50 260504 260504 - USE: 46365
$2.99
51 260087 260087 - NLA GASKET
$15.99
52 912643 912643 - NLA CLUTCH ASSY
$57.99
53 972808 972808 - NLA CLUTCH SHOE
$31.99
54 260105 260105 - NLA SPRING
$11.99
55 912642 912642 - NLA WASHER
$11.99
56 990679 990679 - NLA CLUTCH DRUM BOLT
$13.99
57 260461 260461 - NLA FUEL TANK
$80.99
59 977316 977316 - NLA COMBINATION VALV
$14.99
60 977318 977318 - NLA HOLDER, MACHINED
$11.99
61 260309 260309 - USE: 977315
$2.99
64 972819 972819 - NLA PACKING B
$10.99
65 972811 972811 - NLA SEAT, MACHINED D
$12.99
66 260112 260112 - NLA SPONGE
$2.99
68 972813 972813 - NLA BALL (NO SUPERSE
$13.99
69 972812 972812 - NLA PACKING A
$8.99
70 972818 972818 - NLA SEAT, MACHINED D
$12.99
71 260111 260111 - USE: 996357 No Longer Available
Obsolete.
72 991908 991908 - NLA CAP
$9.99
73 260117 260117 - SUCTION HOSE
$31.99
74 260113 260113 - USE: 912658 No Longer Available
Obsolete.
75 260115 260115 - USE: 912658
$2.99
76 260114 260114 - NLA WEIGHT
$12.99
77 260116 260116 - NLA SPONGE
$7.99
78 260372 260372 - USE: 977527
$2.99
79 971781 971781 - NLA FUEL PIPE CLIP
$2.99
80 260118 260118 - NLA PAD
$2.99
