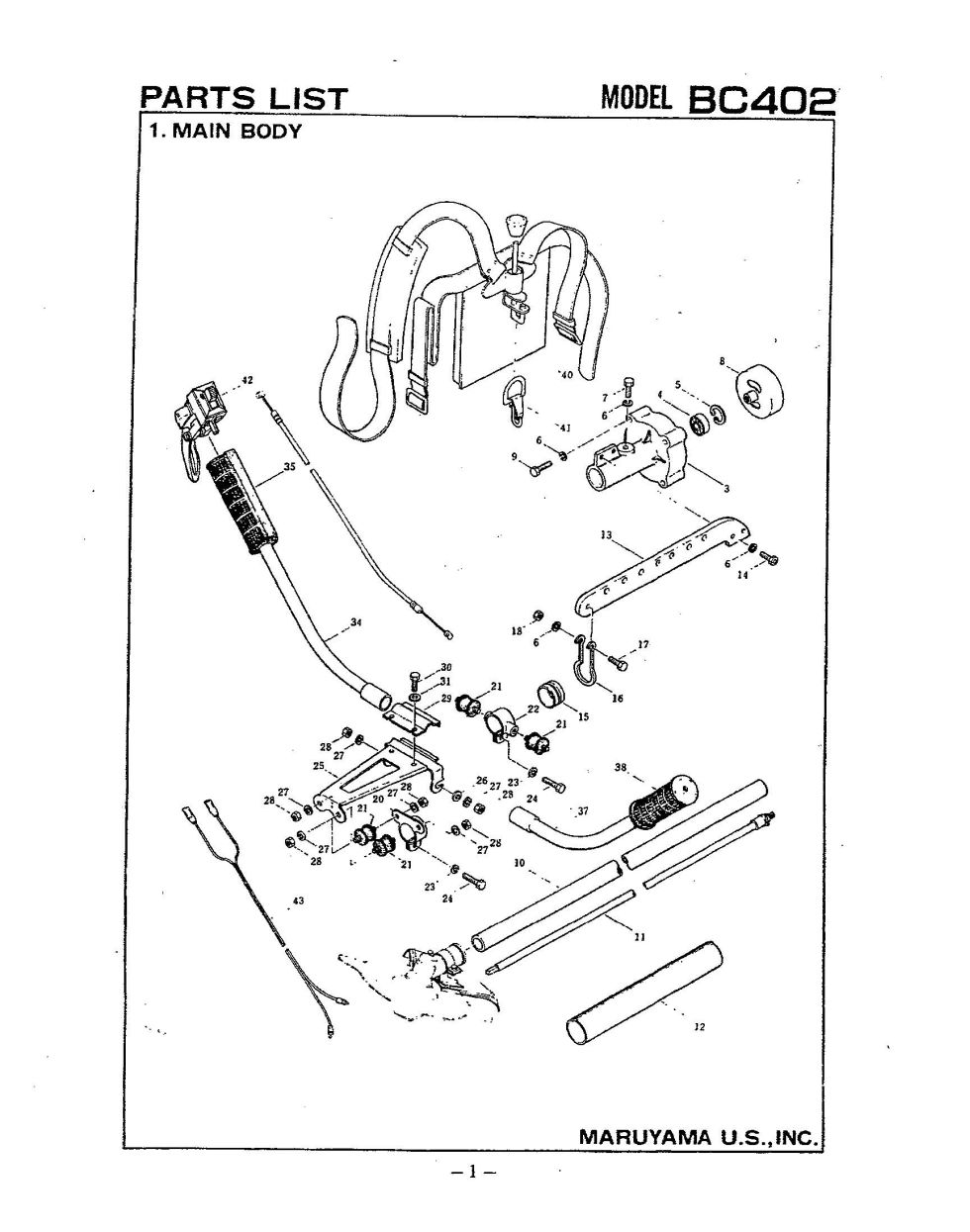

Main Body

Position number SKU Product title Price
3 904179 904179 - NLA CLUTCH CASE
$51.99
4 140474 140474 - BEARING
$22.99
5 012380 012380 - SNAP RING
$2.99
6 012502 012502 - SPRING WASHER
$2.99
7 082092 082092 - BOLT
$2.99
8 902835 902835 - USE: 211203
$33.99
10 904079 904079 - NLA OUTER TRANS. PIP
$136.99
11 902897 902897 - NLA INNER TRANS. SHA
$69.99
12 212167 212167 - NLA WAIST PAD
$21.99
15 908067 908067 - NLA OUTER TRANS PIPE
$7.99
16 902289 902289 - NLA HANGING BAND BRA
$10.99
20 902926 902926 - NLA PIPE BAND BRACKE
$25.99
22 902927 902927 - NLA PIPE BAND BRACKE
$26.99
23 015845 015845 - SPRING WASHER
$2.99
24 080126 080126 - BOLT
$2.99
26 013754 013754 - Washer (M6)
$0.81
30 080129 080129 - BOLT
$2.99
31 014065 014065 - WASHER M8
$2.99
35 212096 212096 - NLA KNOB
$13.99
38 212170 212170 - NLA KNOB (NO SUPERSE
$12.99
40 212171 212171 - NLA SHOULDER BAND &
$43.99
42 212251 212251 - NLA LEAD WIRE
$21.99
