breadcrumb_start Home :: Parts Lookup :: Trimmers and Brushcutters :: BC402 Engine (Crankshaft, Piston, Tank, Muffler) breadcrumb_end
Model Type:
Model:
Assembly:

All Diagrams for this Model

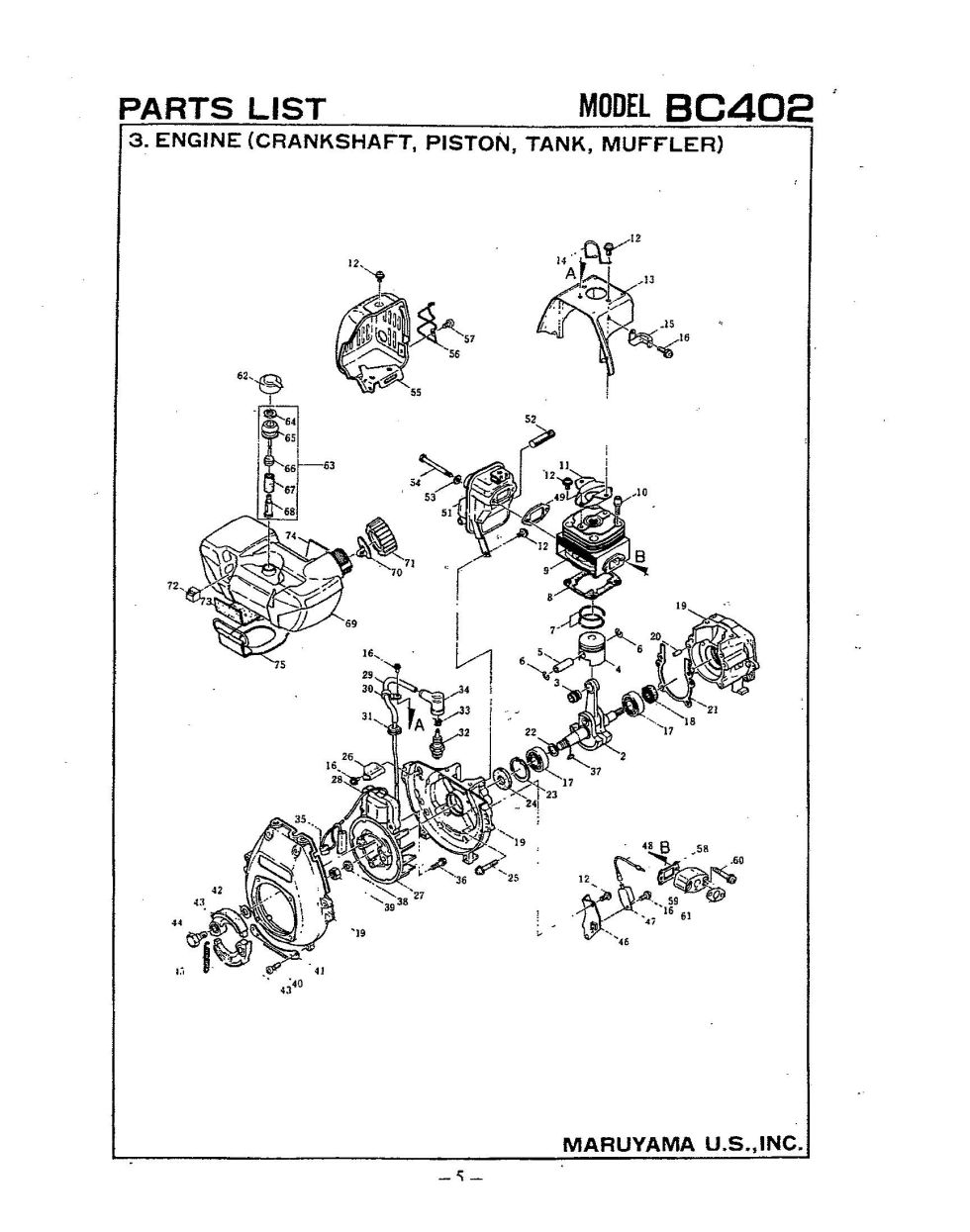

Engine (Crankshaft, Piston, Tank, Muffler)

Position number SKU Product title Price
2 944745 944745 - NLA CRANK SHAFT ASSY
$245.99
3 943281 943281 - NEEDLE BEARING
$23.99
4 944744 944744 - NLA PISTON
$45.99
5 944448 944448 - NLA PIN PISTON
$10.99
6 943307 943307 - SNAP RING
$2.99
7 943875 943875 - PISTON RING SET
$34.99
8 944438 944438 - NLA GASKET
$7.99
9 944437 944437 - NLA CYLINDER
$145.99
10 943288 943288 - NLA BOLT
$6.99
11 944446 944446 - USE: 573630
$2.99
12 944441 944441 - NLA SCREW
$2.99
13 944445 944445 - USE: 572855
$23.99
14 944761 944761 - PROTECTOR
$10.99
15 944473 944473 - NLA CLAMP
$7.99
16 943579 943579 - SCREW
$2.99
18 071320 071320 - OIL SEAL
$19.99
19 944746 944746 - NLA CRANK CASE ASSY
$213.99
21 944453 944453 - NLA GASKET
$2.99
23 944458 944458 - NLA SNAP RING
$2.99
24 944456 944456 - NLA OIL SEAL
$10.99
25 944457 944457 - SCREW
$2.99
26 944444 944444 - PLATE
$12.99
27 944515 944515 - NLA FLYWHEEL
$135.99
28 944516 944516 - COIL IGNITION
$111.99
29 944275 944275 - NLA TUBE
$2.99
30 943980 943980 - CLAMP
$9.99
31 944474 944474 - GROMMET
$5.99
32 943982 943982 - USE: 573183 No Longer Available
Obsolete.
33 943771 943771 - NLA SPRING
$2.99
34 943773 943773 - USE: 591532
$5.99
35 943968 943968 - USE: 584762 No Longer Available
Obsolete.
38 944472 944472 - WASHER
$2.99
39 943569 943569 - NUT
$2.99
40 943539 943539 - NUT
$2.99
41 996408 996408 - USE: 944466 No Longer Available
Obsolete.
42 943478 943478 - USE: 573178
$2.99
43 943476 943476 - NLA CLUTCH SHOE
$36.99
44 943475 943475 - USE: 573176
$14.99
45 943477 943477 - NLA SPRING
$11.99
46 944758 944758 - COVER
$8.99
47 944108 944108 - NLA IGNITER
$168.99
48 944119 944119 - NLA LEAD WIRE
$9.99
49 943298 943298 - USE: 414198
$2.99
51 996414 996414 - NLA MUFFLER BODY
$86.99
52 996415 996415 - NLA ARRESTER
$30.99
53 944442 944442 - WASHER
$2.99
54 944440 944440 - BOLT
$2.99
55 944743 944743 - NLA MUFFLER COVER
$29.99
56 996410 996410 - NLA GUARD
$16.99
57 996411 996411 - SCREW
$2.99
58 944462 944462 - NLA GASKET
$2.99
59 944749 944749 - NLA INSULATOR
$21.99
60 944751 944751 - SCREW
$2.99
61 944750 944750 - NLA GASKET
$2.99
62 943768 943768 - NLA TANK CAP
$21.99
63 996413 996413 - NLA STRAINER ASSY
$28.99
63 943457 943457 - BOLT
$2.99
64 944087 944087 - USE: 943638
$6.99
65 943586 943586 - NLA CLAMP
$7.99
66 944755 944755 - NLA PIPE
$15.99
67 943769 943769 - USE: 573070
$6.99
68 943770 943770 - NLA FUEL TANK WEIGHT
$20.99
69 944752 944752 - NLA FUEL TANK ASSY
$69.99
70 943977 943977 - USE: 591580
$21.99
72 944172 944172 - NLA DAMPER
$8.99
73 943760 943760 - NLA DAMPER
$6.99
74 943783 943783 - NLA DAMPER
$8.99
75 944468 944468 - NLA BAND TANK
$33.99
