 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

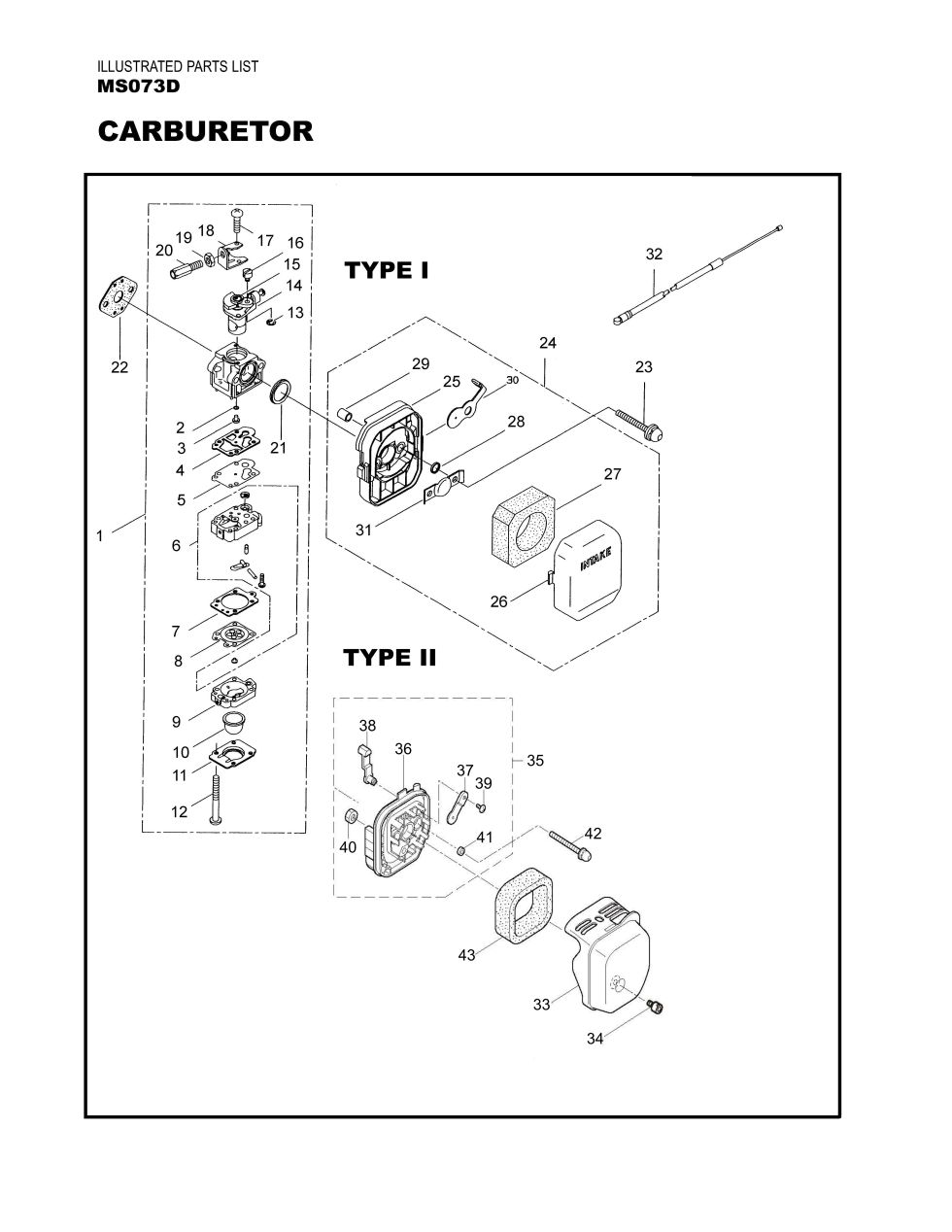

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 268313 | 268313 - CARBURETOR ASSY |
$104.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 262120 | 262120 - MAIN JET #40 |
$21.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 263739 | 263739 - PUMP BODY |
$49.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 261876 | 261876 - E-RING |
$2.99
|
|
| 14 | 265448 | 265448 - THROTTLE VALVE ASSY |
$35.99
|
|
| 15 | 261652 | 261652 - PLUG |
$2.99
|
|
| 16 | 261658 | 261658 - SWIVEL |
$18.99
|
|
| 17 | 260607 | 260607 - USE: 261875 |
$2.99
|
|
| 18 | 261659 | 261659 - BRACKET |
$11.99
|
|
| 19 | 261878 | 261878 - NUT |
$2.99
|
|
| 20 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 21 | 261657 | 261657 - PACKING |
$10.99
|
|
| 22 | 261864 | 261864 - GASKET |
$2.99
|
|
| 23 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 24 | 266422 | 266422 - AIR FILTER ASSY. |
$21.99
|
|
| 25 | 263005 | 263005 - HOUSING |
$21.99
|
|
| 26 | 262998 | 262998 - COVER |
$17.99
|
|
| 27 | 263006 | 263006 - ELEMENT |
$12.99
|
|
| 28 | 263000 | 263000 - WASHER |
$5.99
|
|
| 29 | 263001 | 263001 - SLEEVE |
$5.99
|
|
| 30 | 266423 | 266423 - CHOKE VALVE |
$23.99
|
|
| 31 | 263003 | 263003 - PLATE |
$10.99
|
|
| 32 | 121616 | 121616 - THROTTLE CABLE |
$13.99
|
|
| 33 | 269580 | 269580 - AIR CLEANER COVER |
$5.99
|
|
| 34 | 264022 |
264022 - USE: 286349 (obsolete) use part #286349 |
$2.99
|
|
| 35 | 269033 | 269033 - USE: 284821 |
$13.99
|
|
| 36 | 269026 | 269026 - CASE BODY MC180DX MS |
$2.99
|
|
| 37 | 269028 | 269028 - NS VALVE |
$2.99
|
|
| 38 | 269029 | 269029 - NLA LEVER |
$2.99
|
|
| 39 | 269032 | 269032 - SCREW |
$2.99
|
|
| 40 | 081028 | 081028 - NUT |
$2.99
|
|
| 41 | 269051 | 269051 - SLEEVE |
$2.99
|
|
| 42 | 261814 | 261814 - BOLT |
$2.99
|
|
| 43 | 269030 | 269030 - ELEMENT |
$2.99
|
