 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

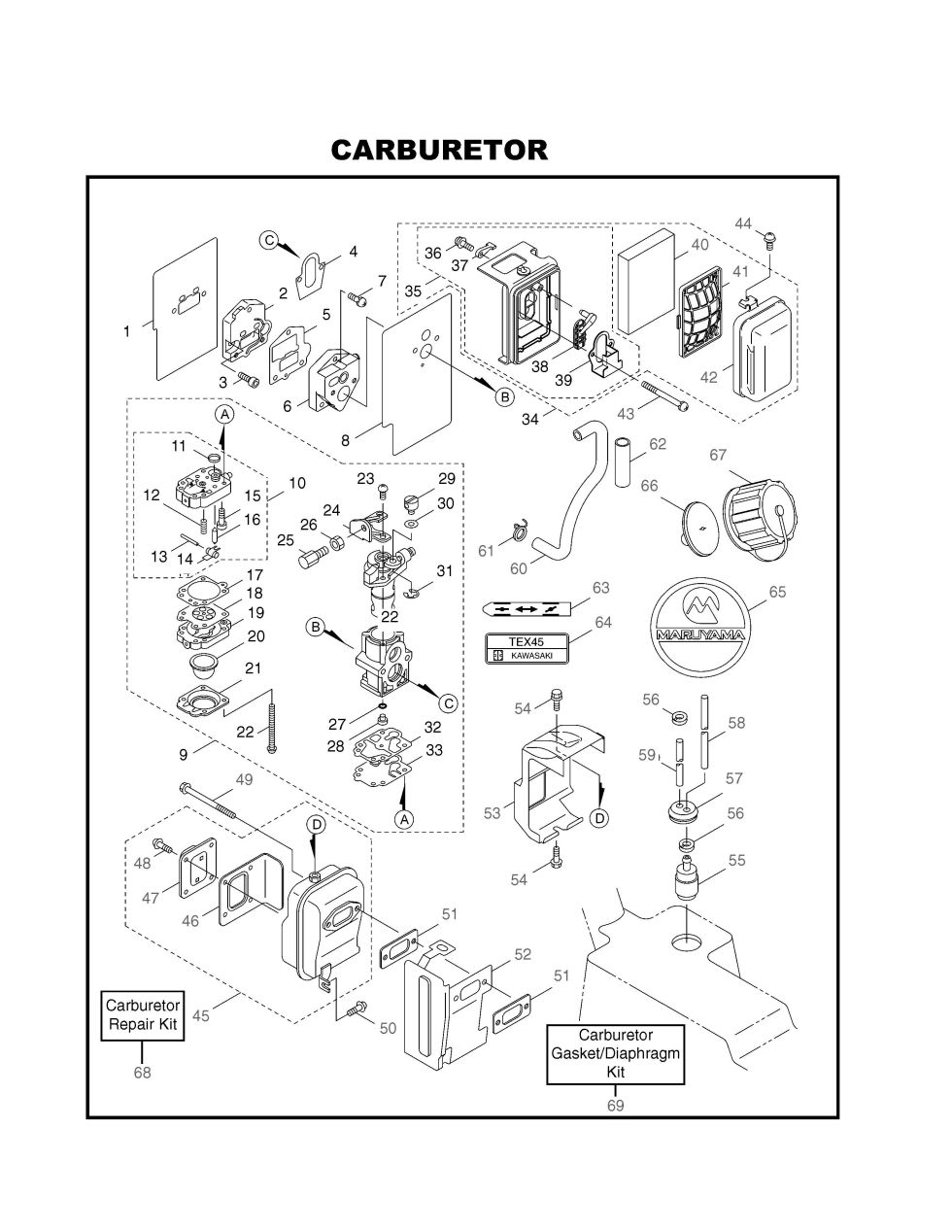

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 634352 | 634352 - GASKET |
$16.99
|
|
| 2 | 634355 | 634355 - PLATE |
$34.99
|
|
| 3 | 634358 | 634358 - BOLT |
$2.99
|
|
| 4 | 641295 | 641295 - GASKET |
$11.99
|
|
| 5 | 634349 | 634349 - GASKET |
$15.99
|
|
| 6 | 634354 | 634354 - REED VALVE ASSY |
$66.99
|
|
| 7 | 579565 | 579565 - SCREW |
$2.99
|
|
| 8 | 634353 | 634353 - GASKET |
$20.99
|
|
| 9 | 641296 | 641296 - NLA CARBURETOR ASSY. |
$74.99
|
|
| 10 | 626822 | 626822 - BODY |
$61.99
|
|
| 11 | 624430 | 624430 - FILTER |
$23.99
|
|
| 12 | 624434 | 624434 - SPRING |
$13.99
|
|
| 13 | 624433 | 624433 - PIN |
$8.99
|
|
| 14 | 624429 | 624429 - LEVER |
$19.99
|
|
| 15 | 624432 | 624432 - SCREW |
$11.99
|
|
| 16 | 624431 | 624431 - FLOAT VALVE |
$18.99
|
|
| 17 | 262993 | 262993 - GASKET |
$10.99
|
|
| 18 | 634357 | 634357 - DIAPHRAGM |
$29.99
|
|
| 19 | 598413 | 598413 - BODY |
$79.99
|
|
| 20 | 577191 | 577191 - USE: 261874 |
$15.99
|
|
| 21 | 598409 | 598409 - COVER, PRIMER PUMP |
$27.99
|
|
| 22 | 262996 | 262996 - SCREW |
$2.99
|
|
| 23 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 24 | 624525 | 624525 - BRACKET |
$35.99
|
|
| 25 | 598418 | 598418 - SCREW |
$14.99
|
|
| 26 | 261878 | 261878 - NUT |
$2.99
|
|
| 27 | 577182 | 577182 - USE: 261871 |
$8.99
|
|
| 30 | 624532 | 624532 - WASHER |
$7.99
|
|
| 31 | 577175 | 577175 - SNAP RING |
$8.99
|
|
| 32 | 634350 | 634350 - GASKET |
$18.99
|
|
| 34 | 642042 | 642042 - AIR FILTER ASSY. |
$109.99
|
|
| 35 | 642039 | 642039 - AIR FILTER CASE ASSY |
$47.99
|
|
| 36 | 628550 | 628550 - SCREW |
$2.99
|
|
| 37 | 640943 | 640943 - LEVER |
$12.99
|
|
| 38 | 640944 | 640944 - NLA MACHINED DISC |
$10.99
|
|
| 39 | 640945 | 640945 - BAFFLE |
$14.99
|
|
| 40 | 642040 | 642040 - AIR FILTER ELEMENT |
$30.99
|
|
| 41 | 640946 | 640946 - GRATE |
$16.99
|
|
| 42 | 642041 | 642041 - CAP |
$23.99
|
|
| 43 | 634367 | 634367 - SCREW |
$12.99
|
|
| 44 | 642043 | 642043 - SCREW |
$2.99
|
|
| 45 | 640947 | 640947 - NLA MUFFLER ASSY. |
$212.99
|
|
| 46 | 634360 | 634360 - GASKET |
$12.99
|
|
| 47 | 634828 | 634828 - SPARK ARRESTER |
$30.99
|
|
| 48 | 634366 | 634366 - SCREW |
$2.99
|
|
| 49 | 944440 | 944440 - BOLT |
$2.99
|
|
| 50 | 943276 | 943276 - SCREW |
$2.99
|
|
| 51 | 579566 | 579566 - GASKET |
$15.99
|
|
| 52 | 634364 | 634364 - MUFFLER COVER |
$27.99
|
|
| 53 | 640948 | 640948 - NLA MUFFLER COVER |
$34.99
|
|
| 54 | 944981 | 944981 - BOLT |
$2.99
|
|
| 55 | 625872 | 625872 - FILTER, FUEL |
$28.99
|
|
| 56 | 597948 | 597948 - USE: 649366 |
$2.99
|
|
| 57 | 597949 | 597949 - GROMMET |
$18.99
|
|
| 58 | 625873 | 625873 - TUBE |
$24.99
|
|
| 59 | 625874 | 625874 - TUBE(3X6X130L) |
$13.99
|
|
| 60 | 641293 | 641293 - TUBE |
$23.99
|
|
| 61 | 641292 | 641292 - CLAMP |
$5.99
|
|
| 62 | 641294 | 641294 - TUBE(10X11X35L) |
$5.99
|
|
| 63 | 598438 | 598438 - NLA LABEL |
$2.99
|
|
| 64 | 626816 | 626816 - NLA DECAL |
$2.99
|
|
| 65 | 122852 | 122852 - NLA LABEL |
$2.99
|
|
| 66 | 630564 |
630564 - USE: 425442 (obsolete) use part #425442 |
$29.99
|
|
| 67 | 625871 | 625871 - CAP ASSY |
$26.99
|
|
| 68 | 840018 | 840018 - CARBURETOR REPAIR KI |
$27.99
|
|
| 69 | 840019 | 840019 - CARBURETOR DIAPHRAGM |
$20.99
|
