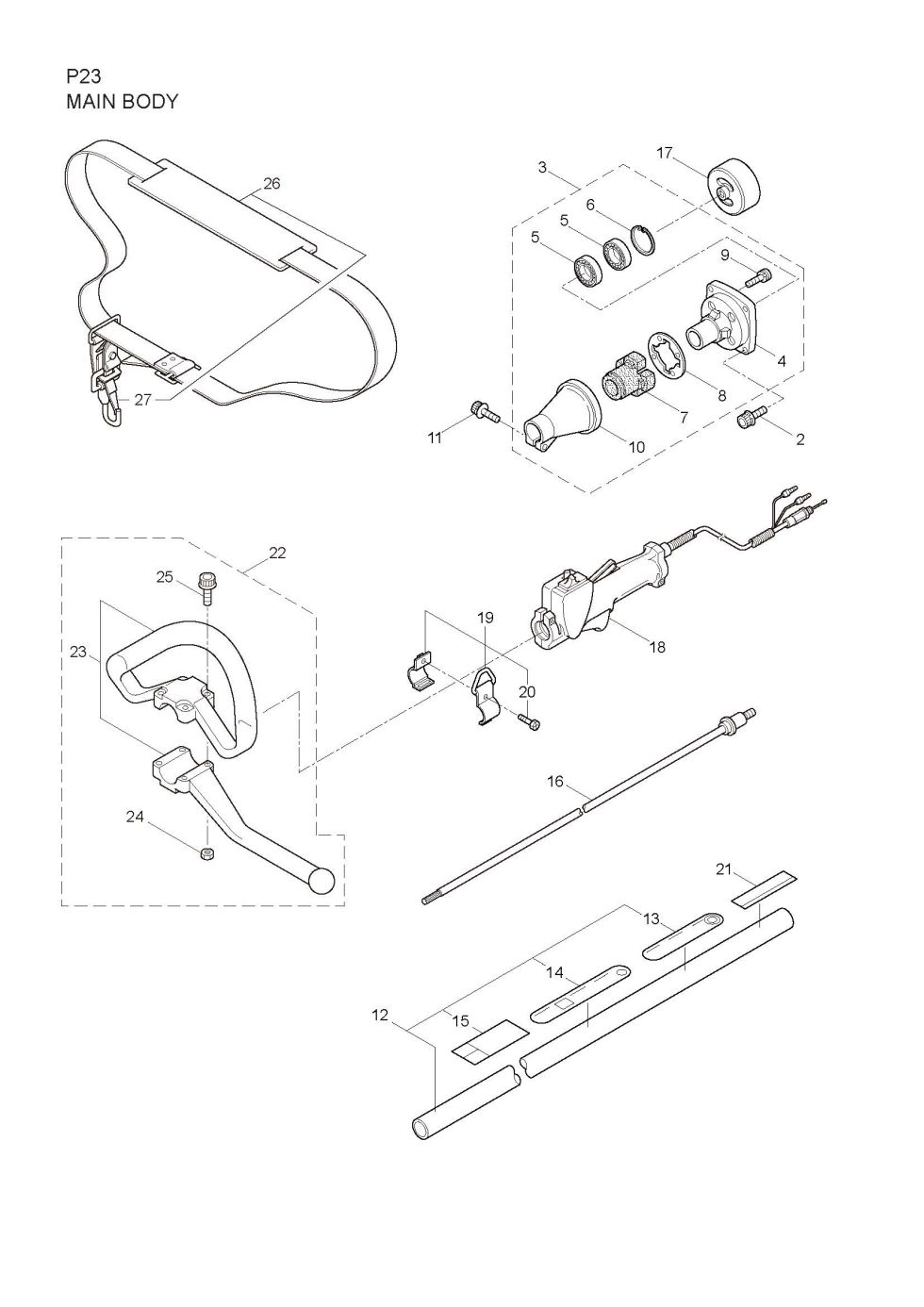

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your P23. You have selected the Main Body diagram for the Maruyama P23 Pruners. Below you will find an interactive part diagram for the P23 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the P23 parts not shown in this diagram you may select from one of the other P23 part assemblies or select a different Pruners altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Pruners parts.

Position number SKU Product title Price
2 261250 261250 - BOLT M5X20
$2.99
3 215512 215512 - CLUTCH CASE ASSY
$150.99
4 214592 214592 - BEARING CASE
$39.99
5 214161 214161 - USE: 102680
$13.99
6 054676 054676 - SNAP RING
$2.99
7 214162 214162 - BUFFER
$28.99
8 214163 214163 - WASHER
$11.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
11 261246 261246 - CAP SCREW M5X25
$2.99
12 221755 221755 - DRIVE SHAFT TUBE ASS
$91.99
13 221501 221501 - LABEL
$9.99
14 221529 221529 - DECAL
$19.99
15 219937 219937 - DECAL
$11.99
16 219268 219268 - DRIVESHAFT ASSY
$52.99
17 054677 054677 - CLUTCH DRUM
$32.99
18 229001 229001 - THROTTLE TRIGGER ASS
$45.99
19 054691 054691 - HANGING BRACKET ASSY
$13.99
20 089738 089738 - BOLT
$2.99
21 232465 232465 - LABEL
$13.99
22 231955 231955 - LOOP HANDLE ASSY
$40.99
23 225699 225699 - LOOP HANDLE
$36.99
24 081027 081027 - NUT M5
$2.99
25 215608 215608 - CAP SCREW
$2.99
26 220533 220533 - SHOULDER STRAP ASSY
$28.99
27 231657 231657 - HOOK
$6.99
