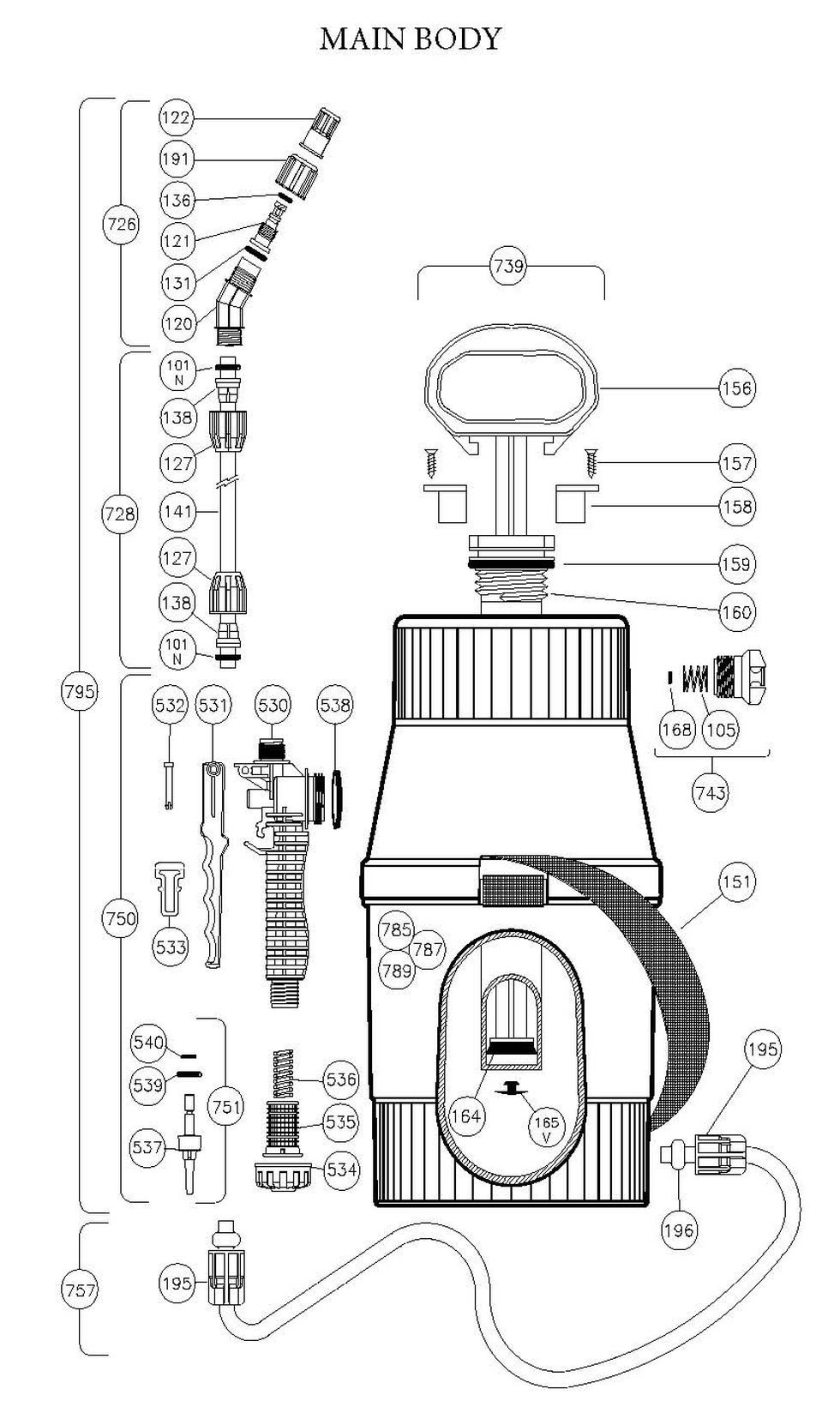

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MX402. You have selected the Main Body diagram for the Maruyama MX402 Manual Sprayers. Below you will find an interactive part diagram for the MX402 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MX402 parts not shown in this diagram you may select from one of the other MX402 part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
101N 842521 842521 - AN-8 NITRILE GASKET
$2.99
105 842522 842522 - 12 LITER TANK
$56.99
120 842523 842523 - ELBOW
$2.99
121 842524 842524 - MIXER
$2.99
122 842525 842525 - 1MM DIAMETER NOZZLE
$2.99
127 842526 842526 - CONIC NUT
$2.99
131 842527 842527 - 16X2 FLAT GASKET
$2.99
136 842528 842528 - AN-5 NITRILE GASKET
$2.99
138 842529 842529 - 10 MM. DIAMETER CONE
$2.99
141 842530 842530 - BLACK TUBE LANCE
$7.99
151 842531 842531 - 40MM X 1.50 M. STRAP
$10.99
156 842532 842532 - HANDLE
$7.99
157 842533 842533 - COVER SCREW
$2.99
158 842534 842534 - CHAMBER COVER
$2.99
159 842535 842535 - AN-30 NITRILE GASKET
$2.99
160 842536 842536 - CHAMBER
$8.99
164 842537 842537 - NECK SEAL
$2.99
165V 842538 842538 - VITON CHAMBER VALVE
$7.99
168 842539 842539 - 2-104 VITON GASKET
$2.99
191 842540 842540 - NOZZLE NUT
$2.99
195 842541 842541 - HOSE NUT
$2.99
196 842542 842542 - HOSE BUSHING
$2.99
530 842543 842543 - HANDLE BODY
$7.99
531 842544 842544 - BUTTON
$2.99
532 842545 842545 - BUTTON BOLT
$2.99
533 842546 842546 - HANDLE CLIP
$2.99
534 842547 842547 - HANDLE NUT
$2.99
535 842548 842548 - HANDLE FILTER
$2.99
536 842549 842549 - HANDLE SPRING
$2.99
537 842550 842550 - SHUTTER
$2.99
538 842551 842551 - 2-121 NITRILE GASKET
$2.99
539 842552 842552 - 2-109 VITON GASKET
$2.99
540 842553 842553 - 2-107 VITON GASKET
$2.99
726 842554 842554 - ELBOW WITH NOZZLE
$10.99
728 842555 842555 - TUBE WITH NUTS
$15.99
739 842556 842556 - COMPLETE CHAMBER
$21.99
743 842557 842557 - SEALING VALVE
$13.99
750 842558 842558 - COMPLETE HANDLE
$28.99
751 842559 842559 - COMPLETE SHUTTER
$11.99
757 842560 842560 - COMPLETE HOSE
$24.99
785 842562 842562 - 7 LITER TANK
$48.99
795 842564 842564 - COMPLETE LANCE
$39.99
