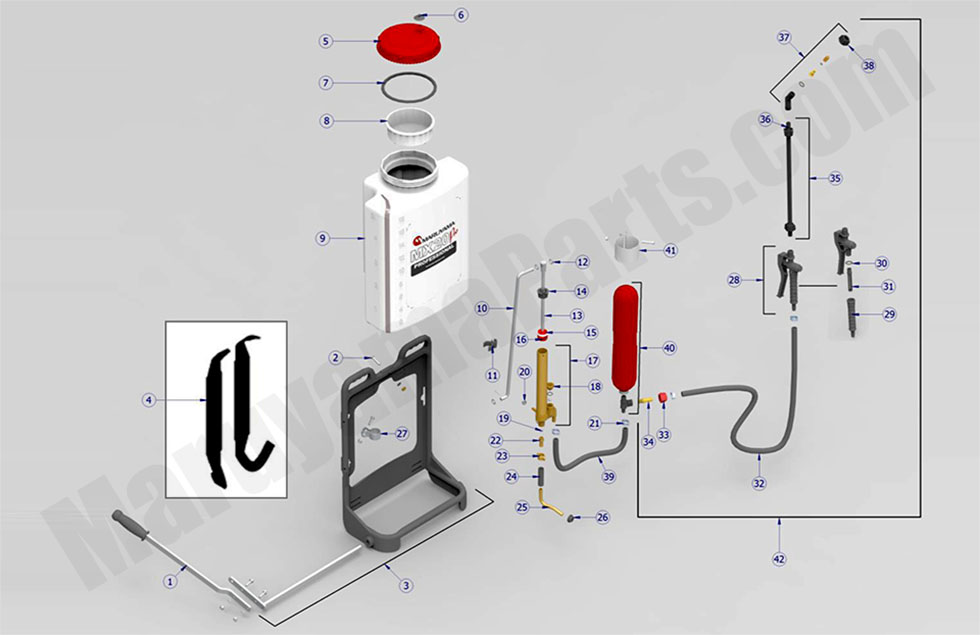

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MX20-Pro. You have selected the Main Body diagram for the Maruyama MX20-Pro Manual Sprayers. Below you will find an interactive part diagram for the MX20-Pro Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MX20-Pro parts not shown in this diagram you may select from one of the other MX20-Pro part assemblies or select a different Manual Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Manual Sprayers parts.

Position number SKU Product title Price
1 842174 842174 - HAND LEVER
$34.99
2 842175 842175 - SCREW/GASKET/SQUARE
$9.99
3 842176 842176 - PLASTIC FRAME
$74.99
4 842177 842177 - CURVED PADDED STRAPS
$64.99
5 842178 842178 - CONTAINER'S LID
$25.99
6 842179 842179 - TANK VENT
$5.99
7 842180 842180 - CONTAINER LID'S GASK
$18.99
8 842181 842181 - FILLING FILTER
$11.99
9 842182 842182 - 20 LT CONTAINER
$38.99
10 842183 842183 - CONNECTING ROD
$22.99
11 842184 842184 - ROD'S CLAMP
$2.99
12 842185 842185 - PIN KIT (Pin x2, Was
$5.99
13 842186 842186
$17.99
14 842187 842187
$2.99
15 842188 842188 - PISTON KIT
$14.99
16 842189 842189
$2.99
17 842190 842190 - PUMP-KIT
$58.99
18 842191
$11.99
19 842192 842192 - BRASS BALLS (X2) & O
$16.99
20 842193
$2.99
22 842195 842195 - METALLIC RACOR
$13.99
23 842196
$19.99
24 842197
$8.99
25 842198 842198 - CONTAINER OUTPUT TUB
$17.99
26 842199 842199 - CONTAINER'S GASKET
$2.99
27 842200 842200 - PUMP'S CLAMP
$7.99
28 842201 842201 - TRIGGER VALVE STEEL
$31.99
29 842202 842202 - TRIGGER VALVE TUBE
$10.99
30 842203 842203 - O-Ring 15.54x2.62
$2.99
31 842204 842204 - TRIGGER VALVE'S FILT
$8.99
32 842205 842205 - CHAMBER'S OUTPUT HOS
$23.99
33 842206 842206 - NUT
$2.99
34 842207 842207 - METAL RACOR PLASTIC
$11.99
35 842208 842208 - FLEXIBLE PLASTIC WAN
$24.99
36 842209 842209 - SEALING RING FOR FLE
$2.99
37 842210 842210 - NOZZLE KIT
$17.99
38 842211 842211 - UNION NUT
$2.99
39 842212 842212 - PUMP TO CHAMBER HOSE
$13.99
40 842213 842213 - PRESSURE CHAMBER KIT
$29.99
42 842215 842215 - OUTPUT SYSTEM
$74.99
