Power Sprayer (Crankcase, Inlet Valve)

Power Sprayer (Crankcase, Inlet Valve)

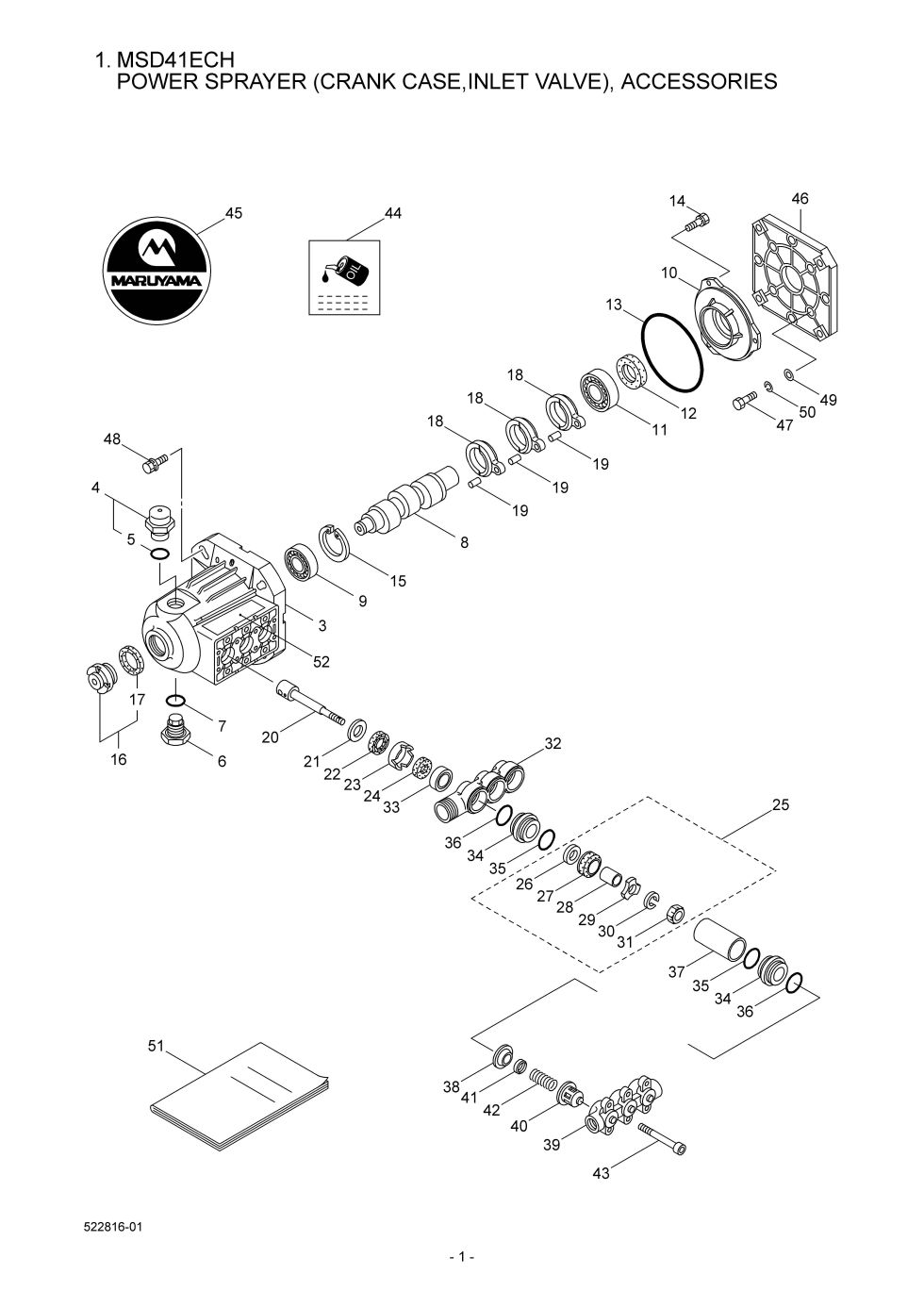

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MSD41ECH. You have selected the % diagram for the Maruyama MSD41ECH Piston Pumps. Below you will find an interactive part diagram for the MSD41ECH %. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MSD41ECH parts not shown in this diagram you may select from one of the other MSD41ECH part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
3 547333 547333 - CRANKCASE
$151.99
4 547961 547961 - USE: 549726 (obsolete)
use part #549726
$22.99
5 014179 014179 - O-RING, VALVE BODY
$11.99
6 044842 044842 - OIL CAP
$19.99
8 545981 545981 - CRANKSHAFT(7.0X19.07
$136.99
9 015710 015710 - BEARING
$14.99
10 547153 547153 - BEARING CASE
$21.99
11 014488 014488 - BEARING
$22.99
12 055337 055337 - SEAL
$8.99
13 014041 014041 - O-RING
$6.99
14 549360 549360 - SCREW BEARING COVER
$2.99
15 012385 012385 - SNAP RING
$2.99
16 092241 092241 - OIL GAUGE
$2.99
17 044428 044428 - PACKING
$11.99
18 547046 547046 - CON-ROD BERIC 2SFX
$34.99
19 016948 016948 - PISTON PIN
$8.99
20 830366 830366 - ROD PISTON
$44.99
21 126259 126259 - WASHER
$2.99
22 025461 025461 - OIL SEAL
$5.99
23 044869 044869 - SEAL RETAINER
$7.99
24 011402 011402 - OIL WICK
$2.99
25 639503 639503 - INLET VALVE ASSY.
$34.99
26 014122 014122 - SUCTION VALVE SEAT
$11.99
27 116121 116121 - PISTON PACKING
$34.99
29 119917 119917 - PISTON RETAINER
$5.99
30 015849 015849 - SPRING WASHER M6
$2.99
31 046365 046365 - NYLON NUT
$2.99
32 545944 545944 - INLET MANIFOLD
$79.99
33 540670 540670 - U-PACKING
$24.99
34 546860 546860 - USE: 546617
$16.99
35 015862 015862 - ORING
$2.99
36 023172 023172 - O-RING (P22)
$2.99
37 541811 541811 - CYLINDER PIPE
$40.99
38 044881 044881 - VALVE SEAT
$18.99
39 544499 544499 - DISCHARGE MANIFOLD
$49.99
40 044565 044565 - RETAINER
$6.99
41 548608 548608 - DISCHARGE VALVE
$2.99
42 541062 541062 - SPRING
$2.99
43 549358 549358 - CAP SCREW
$17.99
44 548767 548767
$2.99
45 545158
$5.99
46 046271 046271 - FLANGE
$25.99
47 549351 549351 - BOLT
$2.99
49 126573 126573 - WASHER LIGH
$2.99
50 126232 126232 - SPRING WASHER
$2.99
52 548895
$5.99
