Power Sprayer (Crankcase, Suction Valve)

Power Sprayer (Crankcase, Suction Valve)

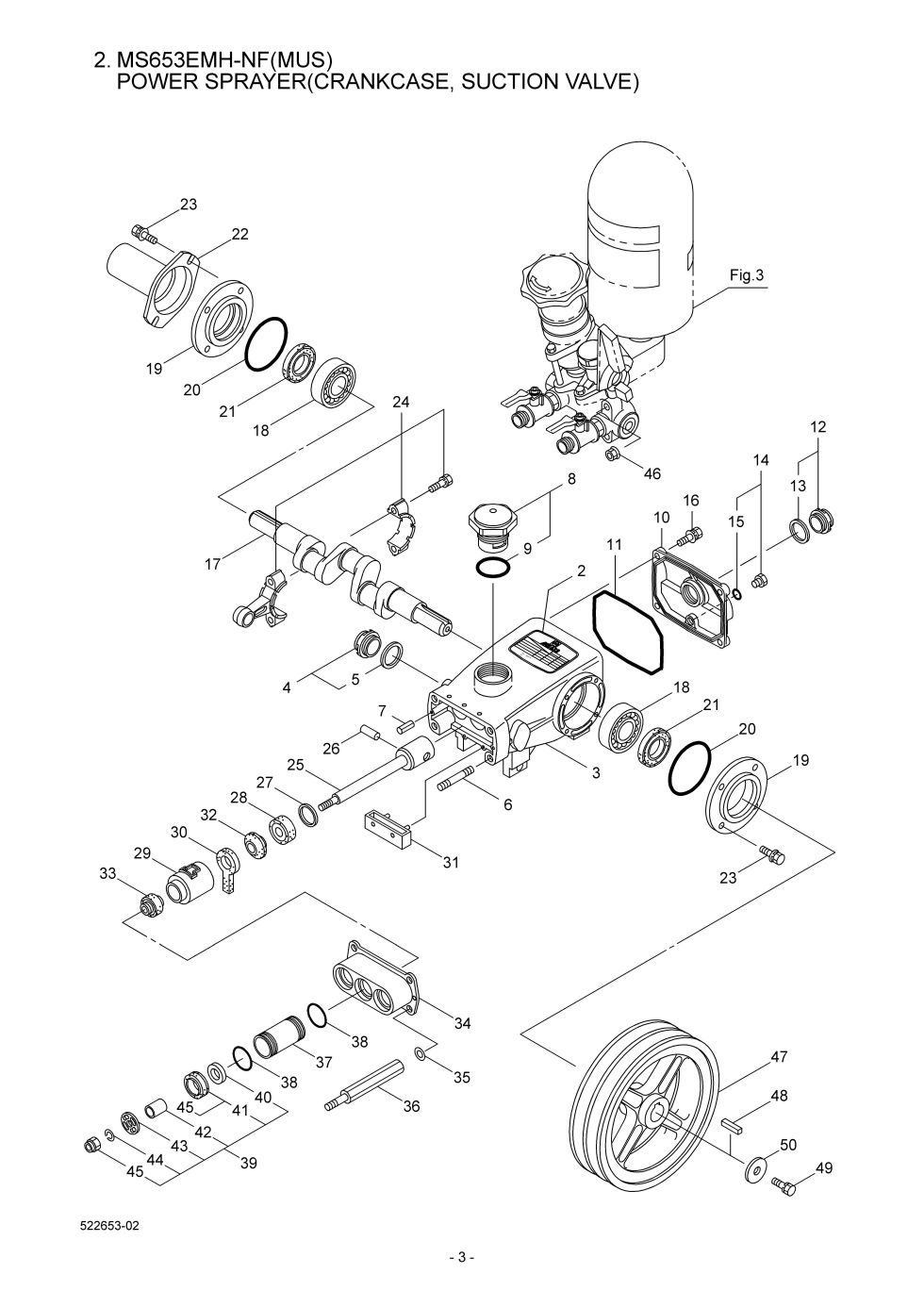

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS653EMH-NF. You have selected the Power Sprayer (Crankcase, Suction Valve) diagram for the Maruyama MS653EMH-NF Piston Pumps. Below you will find an interactive part diagram for the MS653EMH-NF Power Sprayer (Crankcase, Suction Valve). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS653EMH-NF parts not shown in this diagram you may select from one of the other MS653EMH-NF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.

Position number SKU Product title Price
2 120893 120893 - NAME PLATE
$2.99
4 092241 092241 - OIL GAUGE
$2.99
5 044428 044428 - PACKING
$11.99
6 126545 126545 - STUD
$2.99
7 027488 027488 - GUIDE PIN
$2.99
8 091264 091264 - OIL FILLER CAP
$16.99
9 014177 014177 - O RING
$2.99
10 121363 121363 - CRANKCASE CAP
$29.99
11 044834 044834 - O-RING
$6.99
14 091376 091376 - PLUG
$2.99
15 023170 023170 - O-RING, DRAIN PLUG
$2.99
16 126541 126541 - SCREW, SEMS COMB
$2.99
17 028203 028203 - CRANKSHAFT
$192.99
18 047080 047080 - BEARING
$22.99
19 027930 027930 - OIL SEAL CASE
$19.99
20 026965 026965 - O-RING
$2.99
21 027330 027330 - OIL SEAL
$7.99
22 108379 108379 - SHAFT PROTECTOR
$18.99
23 125824 125824 - BOLT MS253ECKF MS153
$2.99
24 048733 048733 - CONNECTING ROD ASSY.
$31.99
25 120901 120901 - PISTON ROD
$47.99
27 126585 126585 - WASHER
$2.99
28 027987 027987 - OIL SEAL
$8.99
29 027341 027341 - SEAL RETAINER
$2.99
30 027910 027910 - WICK
$2.99
31 027911 027911 - OIL PAN
$2.99
32 026853 026853 - PACKING
$2.99
33 100015 100015 - SEAL PACKING
$21.99
34 108383 108383 - INLET MANIFOLD
$142.99
35 126593 126593 - WASHER SHIM
$2.99
36 120903 120903 - USE: 130494
$24.99
37 108384 108384 - CYLINDER PIPE
$87.99
38 026969 026969 - O-RING
$2.99
39 632585 632585 - INLET VALVE ASSY
$46.99
40 026541 026541 - INLET VALVE SEAT
$11.99
41 632588 632588 - PISTON PACKING
$37.99
42 027796 027796 - PISTON SPACER
$2.99
43 120904 120904 - PISTON RETAINER
$5.99
44 015850 015850 - WASHER
$2.99
45 115598 115598 - NYLON NUT
$5.99
46 126567 126567 - FLANGED HEX NUT M10
$2.99
47 100771 100771 - V-PULLEY
$38.99
48 064203 064203 - KEY
$2.99
49 126258 126258 - HEX, HEAD SCREW
$2.99
50 126198 126198 - WASHER
$2.99
