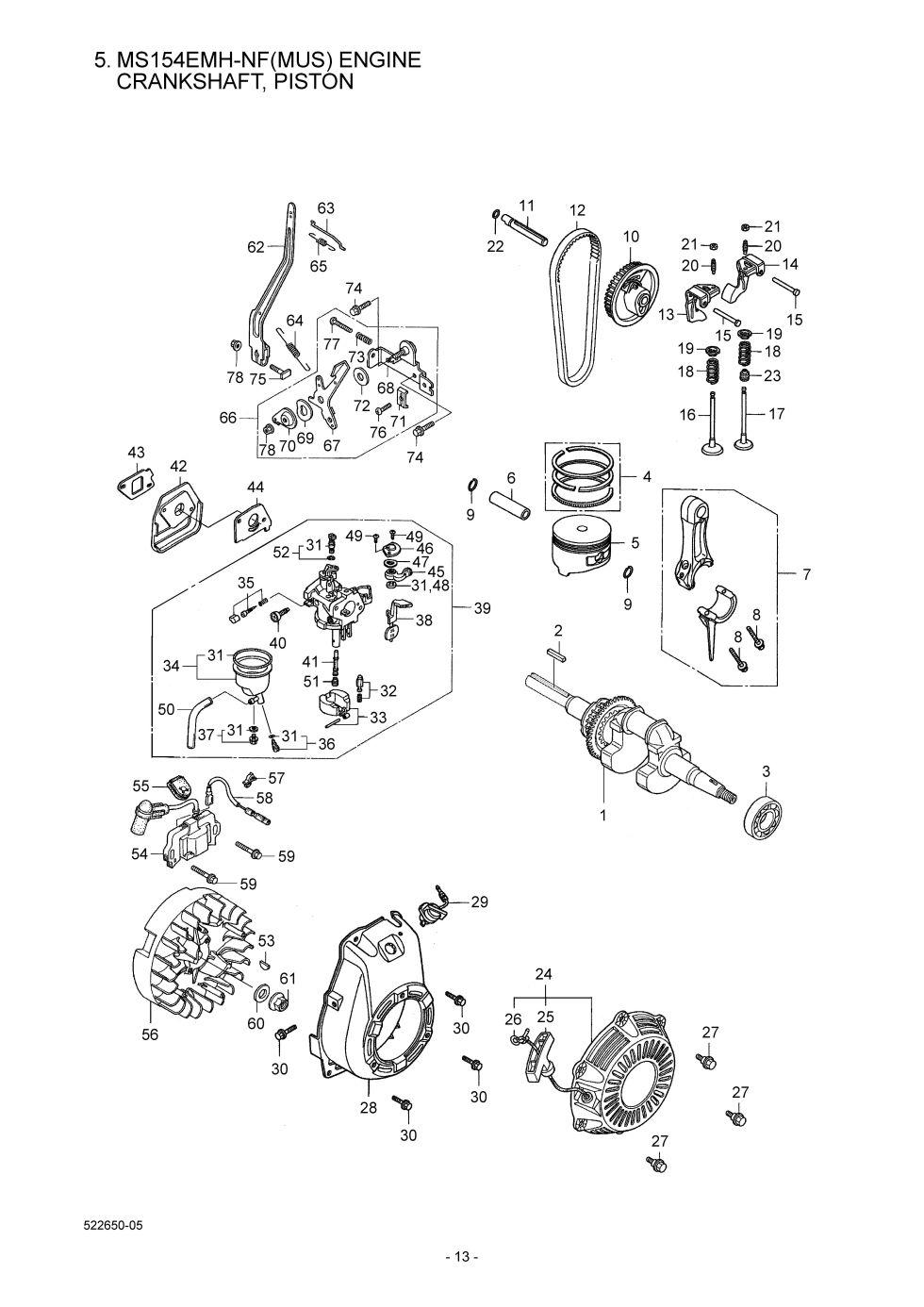

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS154EMH-NF. You have selected the Engine (Crankshaft, Piston) diagram for the Maruyama MS154EMH-NF Piston Pumps. Below you will find an interactive part diagram for the MS154EMH-NF Engine (Crankshaft, Piston). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS154EMH-NF parts not shown in this diagram you may select from one of the other MS154EMH-NF part assemblies or select a different Piston Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Piston Pump parts.
.jpg) |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 19 | 636705 | 636705 - RETAINRER VALVE SPRI |
$7.99
|
|
| 29 | 632721 | 632721 - ENGINE STOP SWITCH A |
$27.99
|
|
| 32 | 998250 | 998250 - FLOAT VALVE SET |
$45.99
|
|
| 33 | 998253 | 998253 - FLOAT SET |
$44.99
|
|
| 35 | 627198 | 627198 - SCREW SET |
$32.99
|
|
| 37 | 998256 | 998256 - SCREW SET |
$35.99
|
|
| 40 | 998258 | 998258 - THROTTLE STOP SCREW |
$29.99
|
|
| 44 | 622238 | 622238 - CARBURETOR GASKET |
$6.99
|
|
| 46 | 998266 | 998266 - LEVER SETTING PLATE |
$2.99
|
|
| 47 | 998265 | 998265 - COCK LEVER SPRING |
$14.99
|
|
| 57 | 990458 | 990458 - HIGH-TENSION CORD CL |
$9.99
|
|
| 59 | 626393 | 626393 - FLANGE BOLT |
$8.99
|
|
| 61 | 998219 | 998219 - FLANGE NUT |
$7.99
|
|
| 67 | 998279 | 998279 - CONTROL LEVER |
$30.99
|
|
| 68 | 998277 | 998277 - CONTROL BASE ASSY |
$34.99
|
|
| 69 | 998280 | 998280 - LEVER SPRING |
$14.99
|
|
| 70 | 998281 | 998281 - CONTROL LEVER WASHER |
$20.99
|
|
| 71 | 990418 | 990418 - CABLE HOLDER |
$13.99
|
|
| 72 | 998278 | 998278 - NLA CONTROL LEVER SP |
$13.99
|
|
| 73 | 990419 | 990419 - CONTROL ADJUSTING SP |
$8.99
|
|
| 75 | 626007 | 626007 - GOVERNOR ARM BOLT |
$7.99
|
|
| 77 | 990484 | 990484 - SCREW |
$2.99
|
|
| 78 | 990487 | 990487 - NUT |
$2.99
|
